Overview

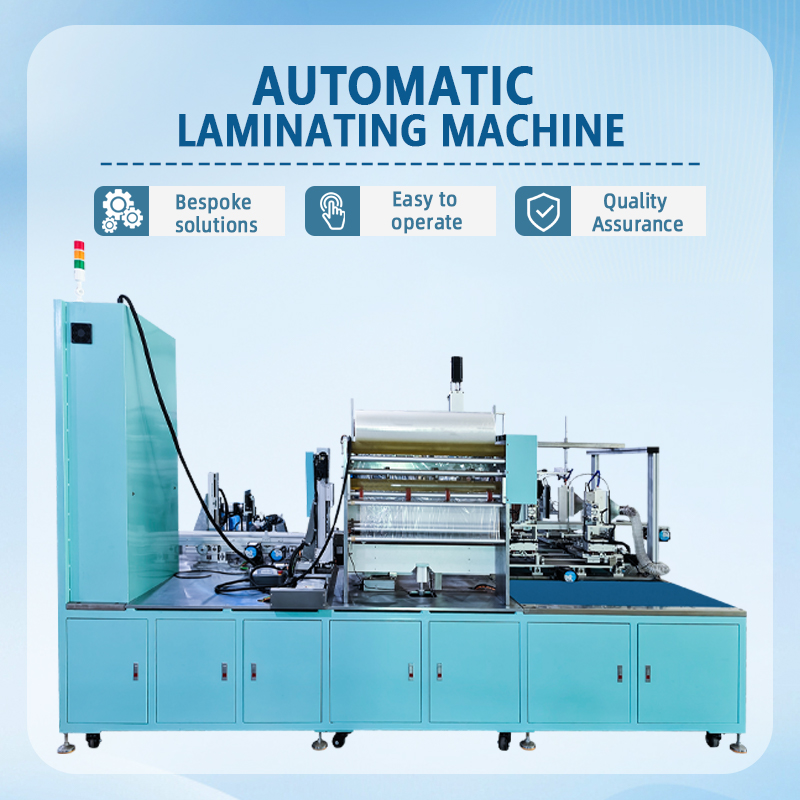

　　Guanshengtai Automatic Laminating Machine is a specialized device designed for automatic lamination and protection of various flat and slightly curved product surfaces. The machine integrates automatic feeding, automatic dust removal, precision lamination and pressing, and automatic film cutting. Utilizing lamination rollers and a precision tension control system, it smoothly adheres the protective/decorative film to the product surface. Lamination speeds reach 6-12 meters per minute, effectively replacing manual lamination work and improving efficiency and quality consistency.

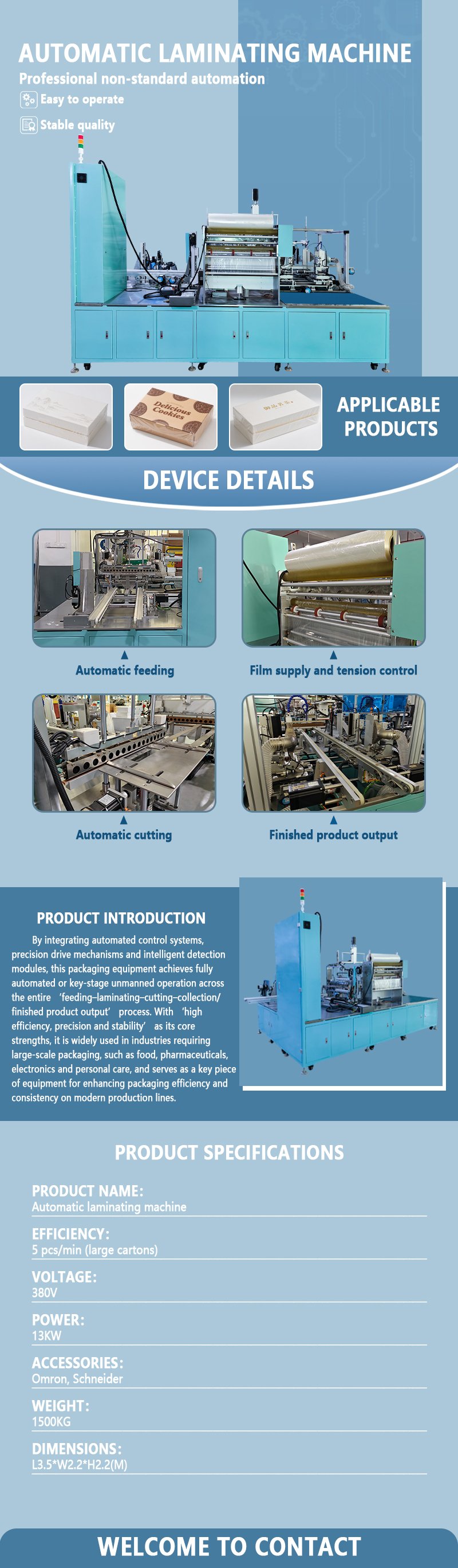

　　Technical parameters:

　　Model Number:GST-GST-WJ023A

　　Sizes:L3.5*W2.2*H2.2(M)

　　Production Capacities: 5 pcs/min (large cartons)

　　VOLTAGE:380v

　　POWER:13KW

　　ACCESSORIES:Omron, Schneider

　　WEIGHT:1500KG

　　Customized Support: Yes

　　Core Advantages:

　　Precision Lamination System: Employing a precision pressing and lamination structure using steel rollers and silicone rollers, combined with adjustable lamination pressure and angle, ensures a tight fit between the protective film and the product surface, eliminating bubbles, wrinkles, and scratches. This results in high film transparency and excellent decorative effects.

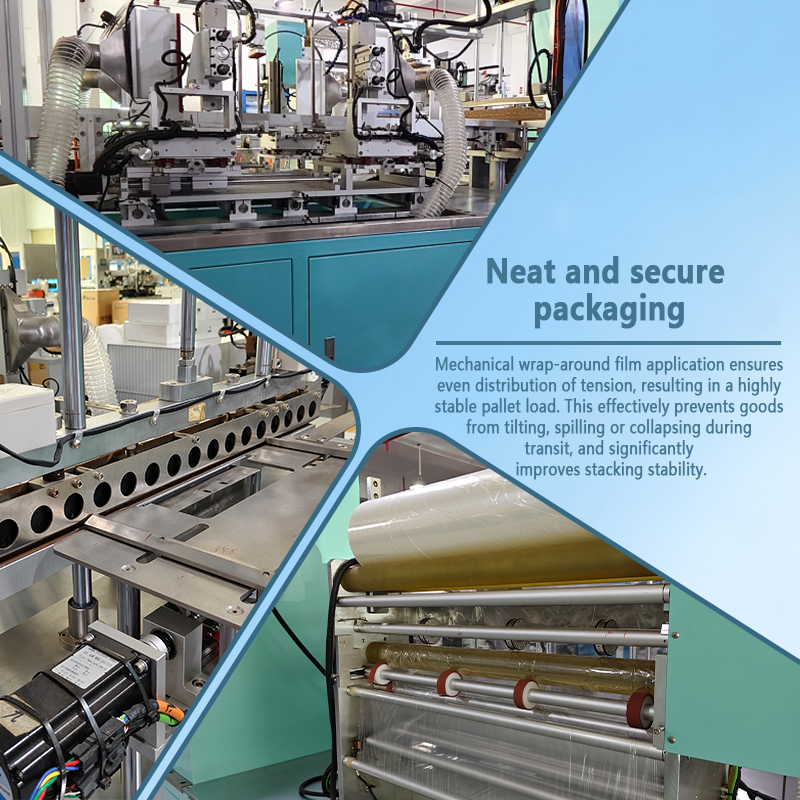

　　Constant Tension Control: Equipped with a magnetic powder clutch and a floating roller constant tension film supply system, the tension remains constant during film feeding, effectively preventing lamination bubbles or film deviation caused by film looseness or overstretching, ensuring stable lamination quality.

　　Automatic Dust Removal Mechanism: Equipped with an electrostatic eliminator and dust-adhesive rollers before lamination, this mechanism effectively removes static electricity and micro-dust particles from the product surface, preventing blistering or indentation defects caused by foreign matter residue after lamination, thus improving lamination yield.

　　Multi-Specification Compatibility: By adjusting the distance between the limit baffle and the lamination rollers, it can accommodate products and film materials of different thicknesses (suitable for 0.1-20mm) and widths (film width suitable for 50-800mm), allowing for convenient and quick production changeover adjustments.

　　Automatic Film Cutting System: Equipped with a synchronous servo cutting device, it can accurately cut film materials according to the set length, with a cutting accuracy of ±1mm, producing smooth and clean cuts. Suitable for continuous automated lamination of roll protective film, eliminating the need for manual cutting and significantly improving packaging efficiency.

　　Dual-Mode Operation: Supports both single-sheet lamination and continuous lamination modes, adapting to the needs of batch continuous production and small-batch multi-variety switching.

　　Safety Protection Design: Equipped with an emergency stop button, overload protection, and automatic shutdown upon opening the protective cover, complying with industrial equipment safety operating regulations.

　　Easy to operate: Utilizing a PLC and touchscreen human-machine interface, parameters such as laminating speed and cutting length are intuitively set, and the operating status is monitored in real time. Ordinary workers can operate the machine proficiently after simple training.

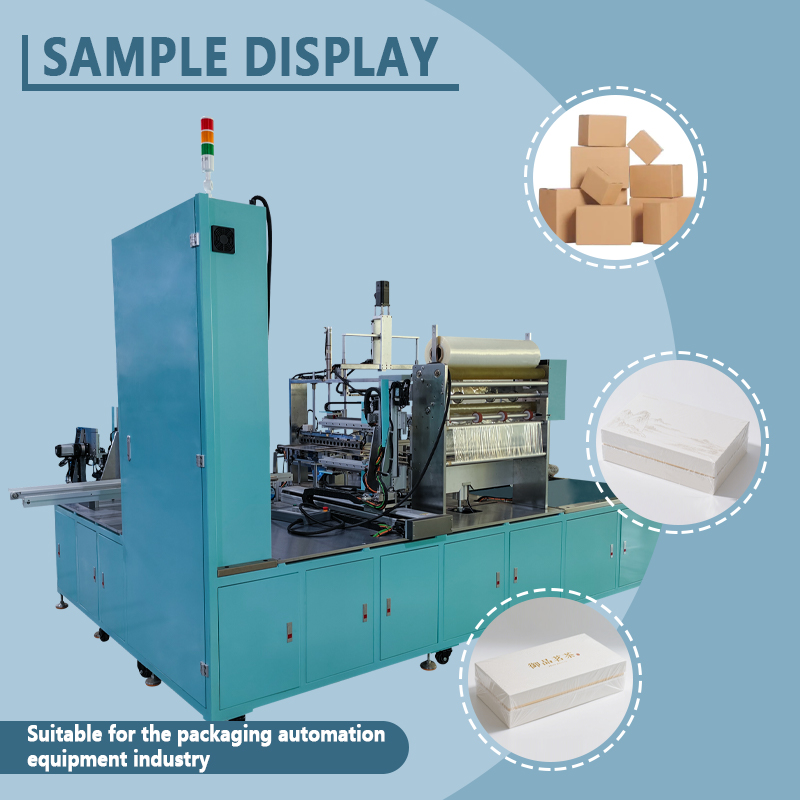

　　Applicable scenarios: Widely applicable to surface lamination operations in fields such as electronic product manufacturing (mobile phone panels, tablet screens, touch panel lamination protection), home appliance industry (panel and shell surface decorative film lamination), printing and packaging (color boxes, cardboard surface lamination protection), signage/advertising production (acrylic boards, metal signs surface lamination), and building materials (sheet material surface lamination protection). Guanshengtai automatic laminating machines, with their precise, efficient, and stable lamination performance, help manufacturing enterprises automate their product surface protection and decorative lamination processes, improving product appearance quality and production efficiency.
