Overview

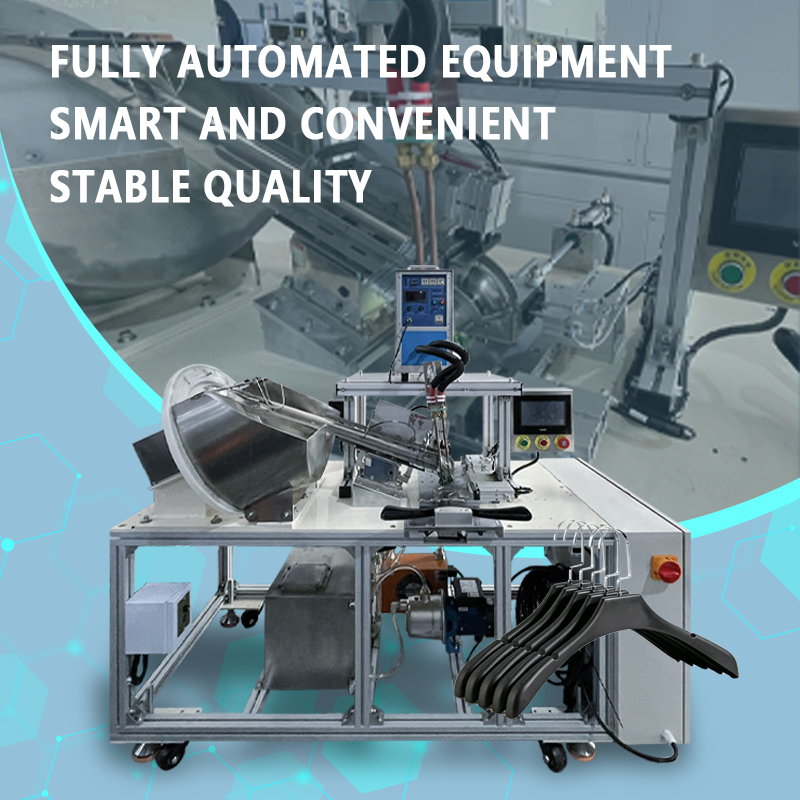

　　The Guanshengtai semi-automatic hanger hook insertion machine is a specialized piece of equipment designed for the semi-automatic assembly of flat hanger bodies, such as plastic and wooden hangers, with metal hooks. The machine utilizes a pneumatic hook insertion mechanism combined with precision positioning clamps. The operator simply places the hanger body on the positioning platform and inserts the hook into the desired position. After pressing the start button, the machine automatically completes the hook insertion and positioning detection. The insertion speed can reach 600-900 pieces/hour, effectively reducing manual labor intensity and improving insertion efficiency and consistency. It is particularly suitable for multi-variety, small-batch production needs and rapid changeover requirements.

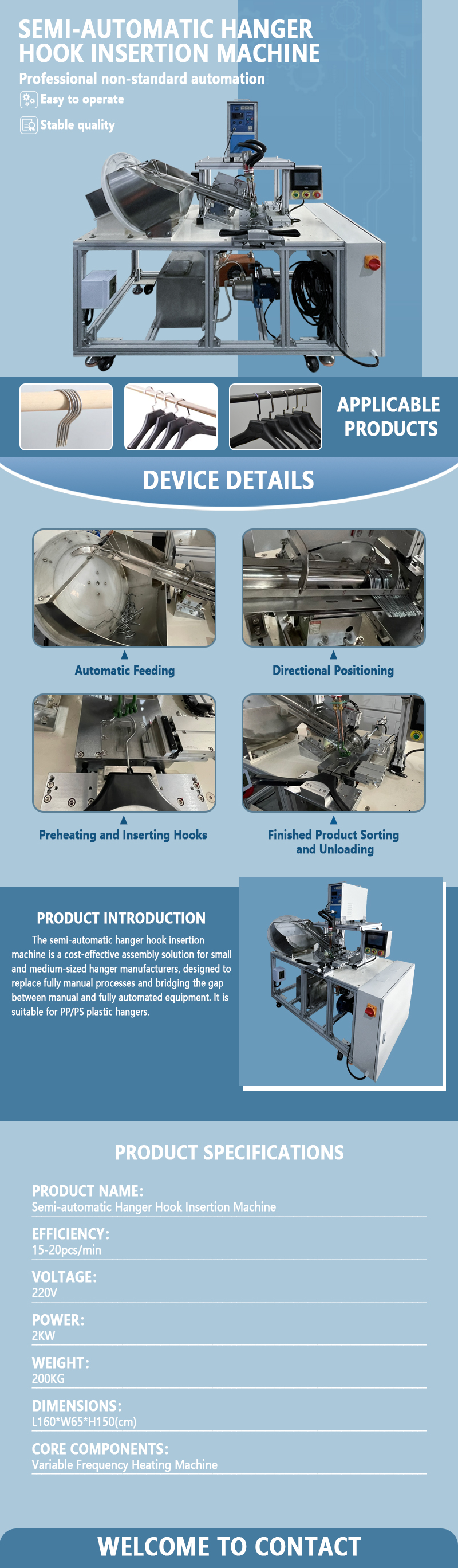

　　Technical parameters:

　　Model Number: GST-GST-WJ022A

　　Sizes:L160*W65*H150(cm)

　　Production Capacities: 15-20pcs/min

　　POWER:2KW

　　VOLTAGE:220V

　　WEIGHT:200KG

　　CORE COMPONENTS:Variable Frequency Heating Machine

　　Customized Support: Yes

　　Core Advantages:

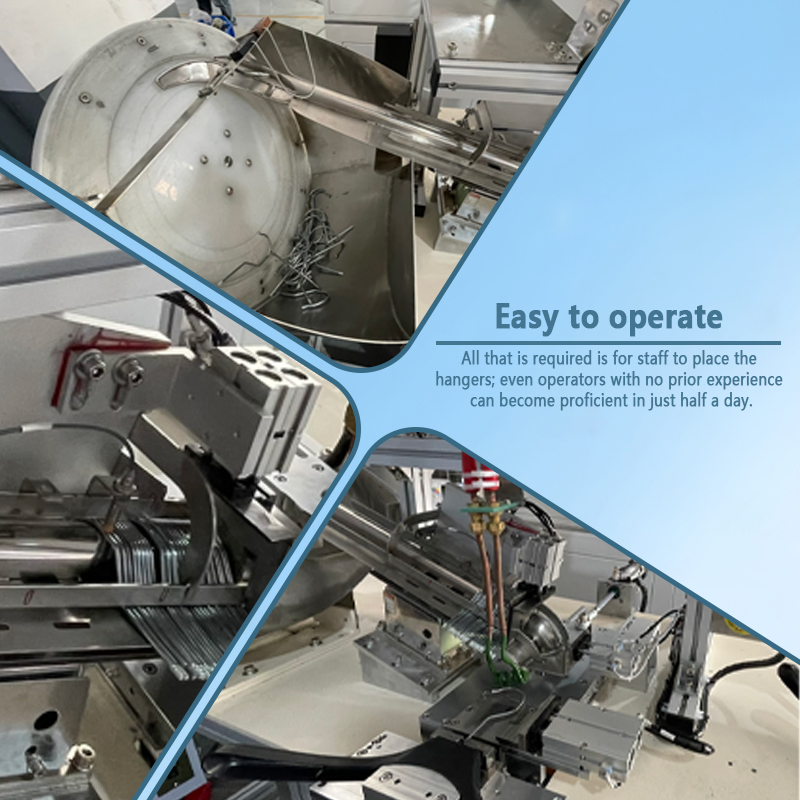

　　Pneumatic Hook Insertion Structure: Utilizing a high-precision guide cylinder and hook push rod combination, the hook insertion action is smooth and powerful, ensuring accurate insertion of the hook into the preset hole position on the hanger body, ensuring proper insertion without deviation or damage to the hanger surface.

　　Dual Heating/Cold Insertion Mode: The equipment is equipped with an adjustable temperature heating device (adjustable from room temperature to 300℃). Metal hooks can be quickly heated before insertion, allowing for easy insertion into the plastic hanger body. For plastic or wooden hangers that do not require heating, a one-button switch to cold insertion mode provides even higher efficiency.

　　Efficient Collaboration with Manual Assistance: The placement and positioning of the hanger body and hook are completed manually, while the insertion action is automated. One person can operate multiple machines simultaneously, significantly improving individual output efficiency while ensuring consistent hook depth and position for each product.

　　Quick Changeover Adjustment: By changing the positioning clamps and adjusting the hook push rod stroke, different styles and sizes of hanger bodies (such as adult hangers, children's hangers, trouser hangers, etc.) and different hook shapes can be quickly adapted. Changeover time is generally no more than 15 minutes.

　　Position Detection and Protection: Equipped with photoelectric sensors to detect whether the hanger body and hook are properly placed. If there is a shortage of material or improper placement, the equipment automatically pauses and alarms to prevent empty insertion or damage to the hanger body. After hook insertion, the finished product automatically falls into the collection basket, eliminating the need for manual removal.

　　Compact and Stable Structure: The machine body adopts a combination of a square tube welded frame and a stainless steel tabletop, featuring a compact design, strong vibration resistance, and suitability for long-term, high-intensity work environments in workshops. The smooth tabletop is easy to clean and facilitates daily maintenance.

　　Simple and Safe Operation: Featuring a dual start button and emergency stop safety device, the machine requires both hands to press simultaneously to start, effectively preventing accidental injury. The touchscreen human-machine interface allows for intuitive setting of parameters such as heating temperature, hook insertion stroke, and holding time. General workers can operate the machine after a simple 10-minute training session.

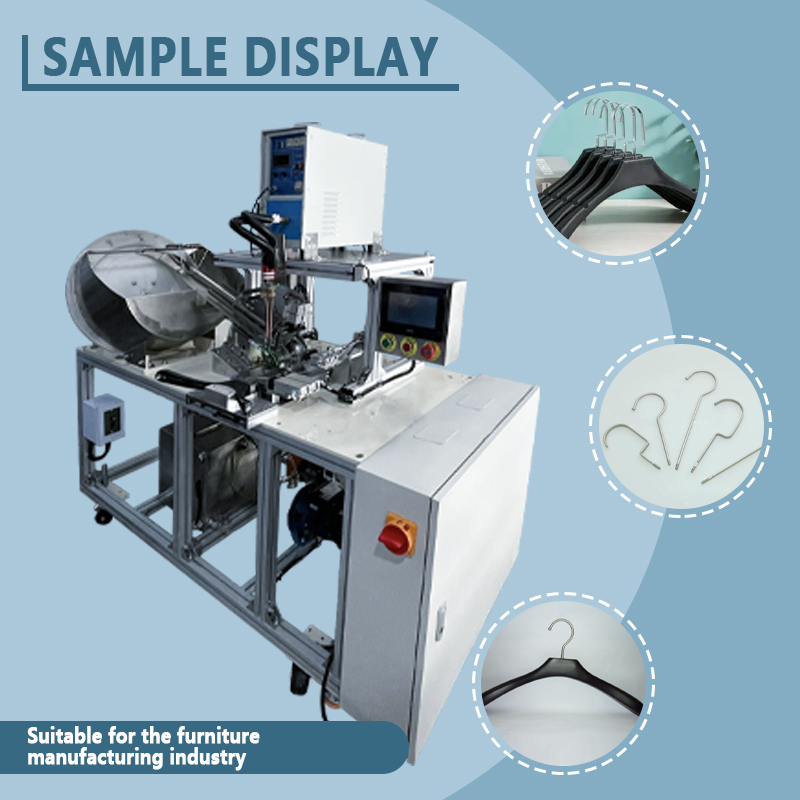

　　Applicable Scenarios: Widely applicable to small-batch, multi-variety hook insertion assembly operations in hanger manufacturing (plastic hangers, wooden hangers, flocked hangers), home furnishing processing, and hanger export OEM industries. Guanshengtai's semi-automatic hanger hook insertion machine, with its efficient, precise, and flexible assembly performance, helps hanger manufacturers achieve semi-automation upgrades in the hook insertion process, effectively reducing labor costs and labor intensity, and improving product quality consistency.
