Overview

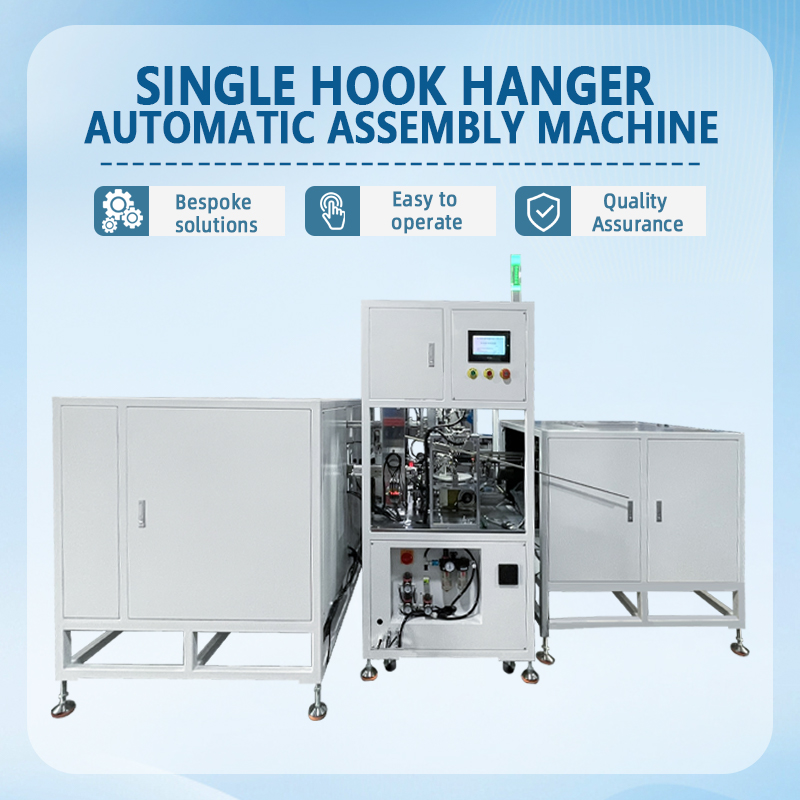

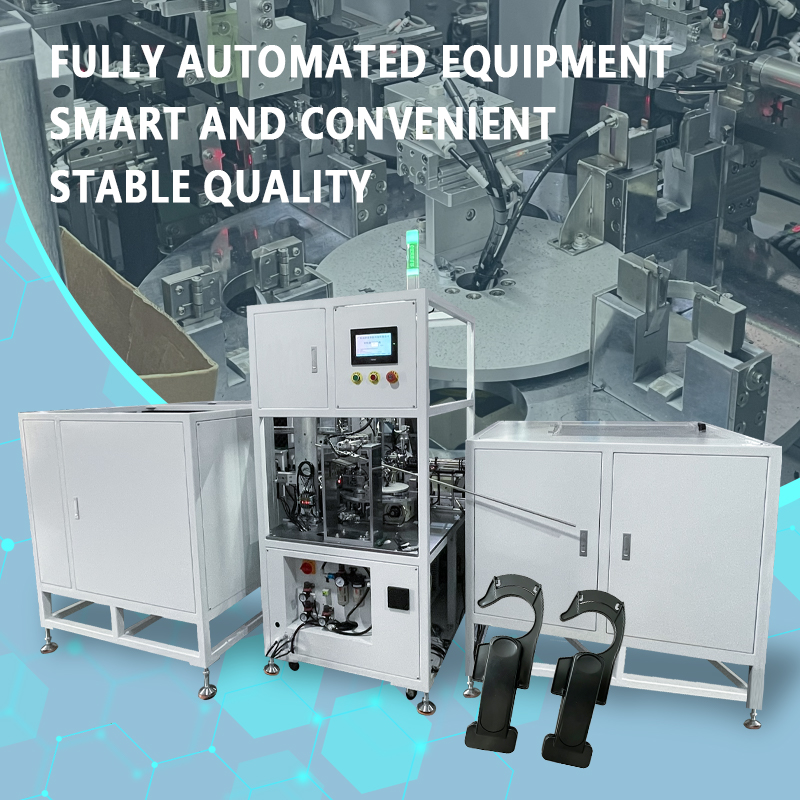

　　The Guanshengtai Single-Hook Clothespin Peg Automatic Assembly Machine is a specialized piece of equipment designed for the fully automated assembly of all components of a single-hook clothespin (also known as a hook clothespin). The machine integrates automatic hook base feeding, automatic sorting and feeding of the left/right clamp body, automatic feeding of the elastic clamp, precision pressing assembly, finished product inspection, and automatic unloading. The entire line achieves one-stop fully automated assembly from bulk parts to finished clothespins, with a production speed of 40-50 pieces/minute, effectively replacing traditional manual assembly work.

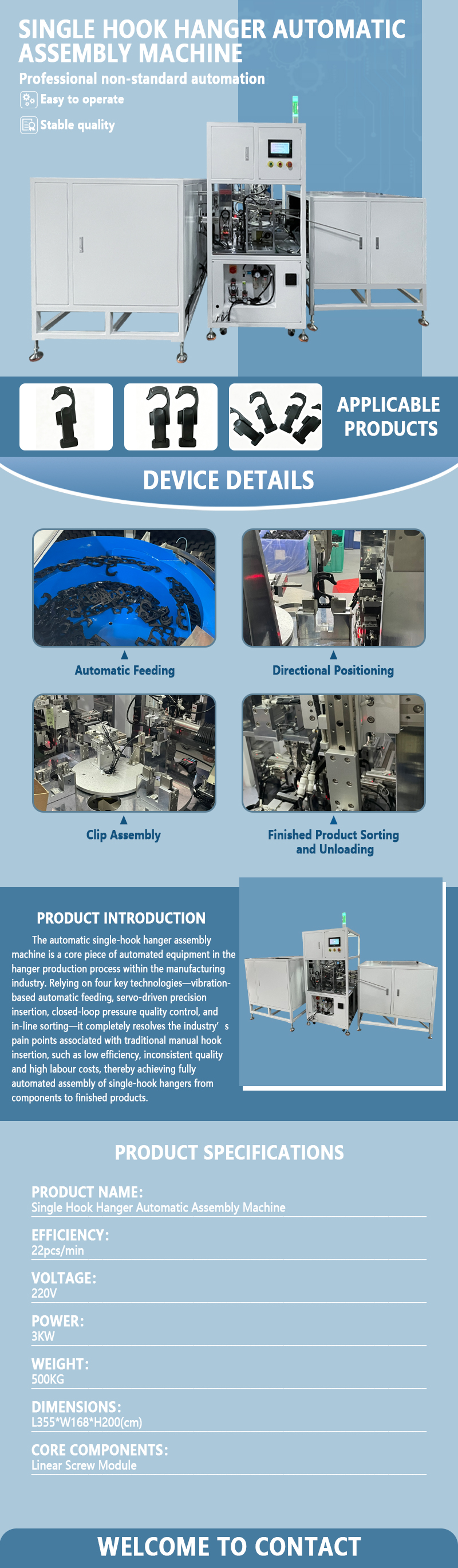

　　Equipment Details:

　　Model Number: GST-WJ019A

　　Sizes: L355*W168*H200(cm)

　　Production Capacities: 22pcs/min

　　VOLTAGE:220V

　　POWER:3KW

　　WEIGHT:500KG

　　CORE COMPONENTS:Linear Screw Module

　　Customized Support: Yes

　　Core Advantages:

　　Multi-Component Automated Assembly: Utilizing a multi-station collaborative platform, the machine sequentially completes processes such as hook base positioning, left and right clamp body alignment, and elastic clamp pressing into the connecting groove. Each station operates synchronously, ensuring a stable and efficient assembly cycle.

　　High-Precision Positioning and Pressing: Equipped with precision guide grooves and a side pressing mechanism, it ensures accurate alignment of the left and right clamp bodies to both sides of the hook base connecting shaft. The elastic clamp pressing mechanism precisely presses the pins into the clamp body connecting groove, ensuring proper, non-skewed, and damage-free pressing.

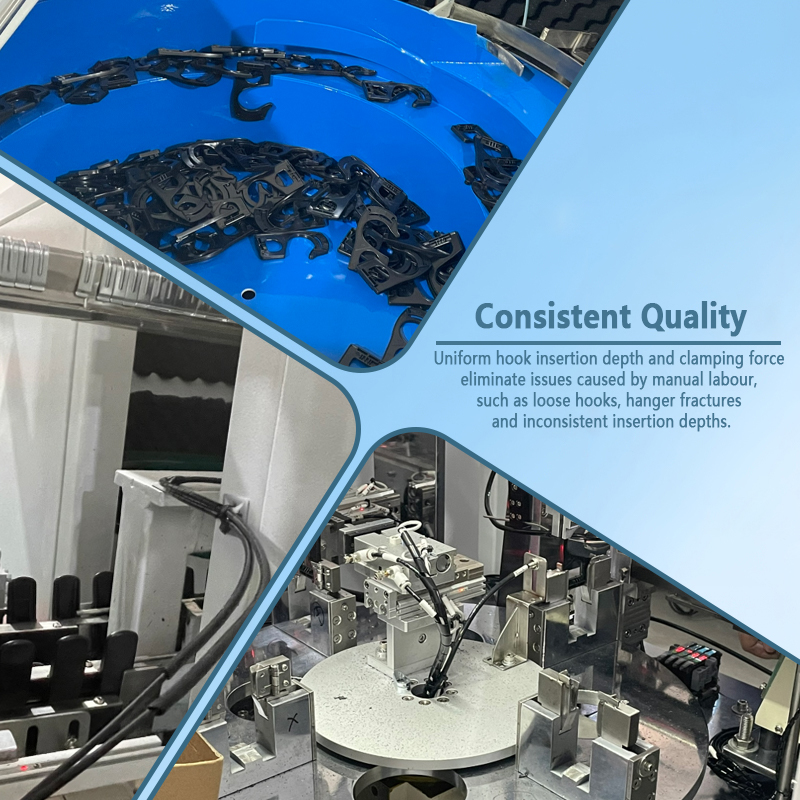

　　Automated feeding system: Each component is equipped with a vibratory feeder for automatic sorting and feeding, and a linear vibratory track conveyor. The hook base is automatically picked up by a dedicated feeding device and placed into the fixed template receiving slot, ensuring continuous and stable material conveying without the need for manual placement.

　　Error prevention and safety protection: Equipped with sensors at each workstation to detect material shortages, the machine automatically stops and alarms, and automatically pauses and alerts the operator in case of abnormalities, ensuring continuous and stable operation.

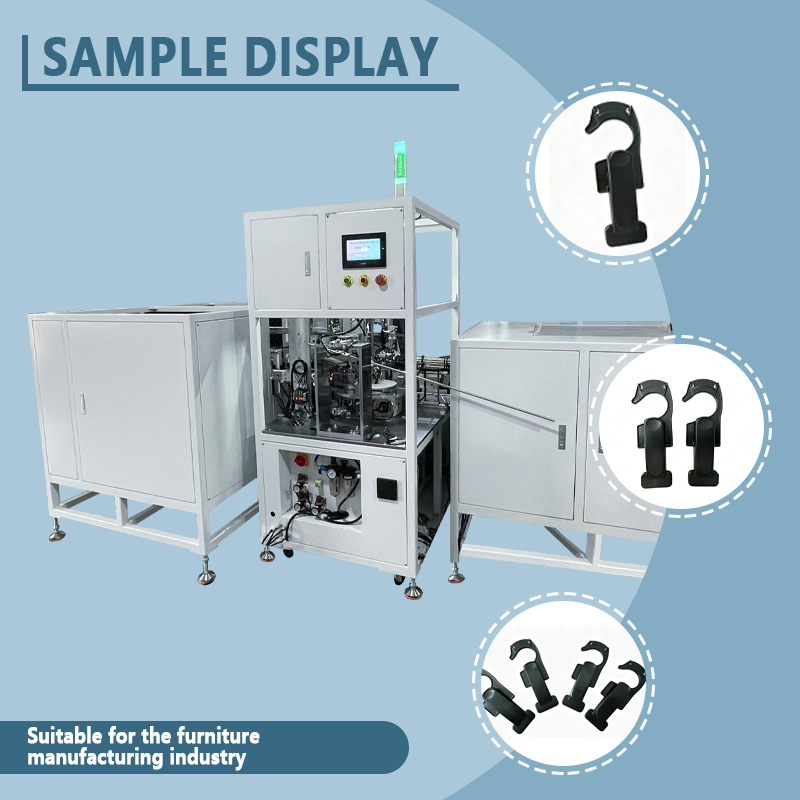

　　Multi-specification compatibility: By changing the feeding guide rails, positioning templates, and pressing fixtures, it can accommodate single-hook clothes clip products of different sizes and styles, allowing for flexible and convenient production changes.

　　Sturdy and durable materials: The machine body uses a thickened steel frame and a stainless steel worktable, providing a stable and vibration-resistant structure suitable for long-term high-intensity working environments in workshops.

　　Easy operation: Utilizing a PLC and touchscreen human-machine interface, the operating status is monitored in real time, parameter settings are intuitive, and ordinary workers can operate the machine proficiently after simple training.

　　Applicable Scenarios: Widely applicable to large-scale, standardized automated assembly production in fields such as daily necessities manufacturing (single hook clothespins, hook clothespins, drying clothespins), household goods processing (plastic clothespins, metal hook clothespins), and hardware and plastic products. Guanshengtai's single hook clothespin automatic assembly machine, with its efficient, precise, and stable assembly performance, helps clothespin manufacturers upgrade their assembly processes to automation, effectively reducing labor costs and improving production capacity and product consistency.
