Overview

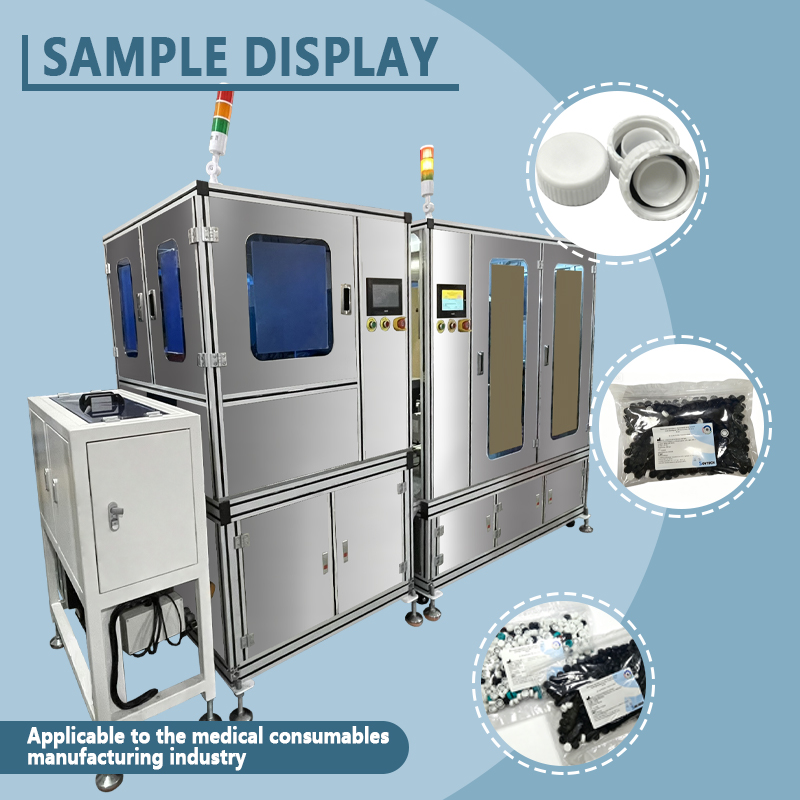

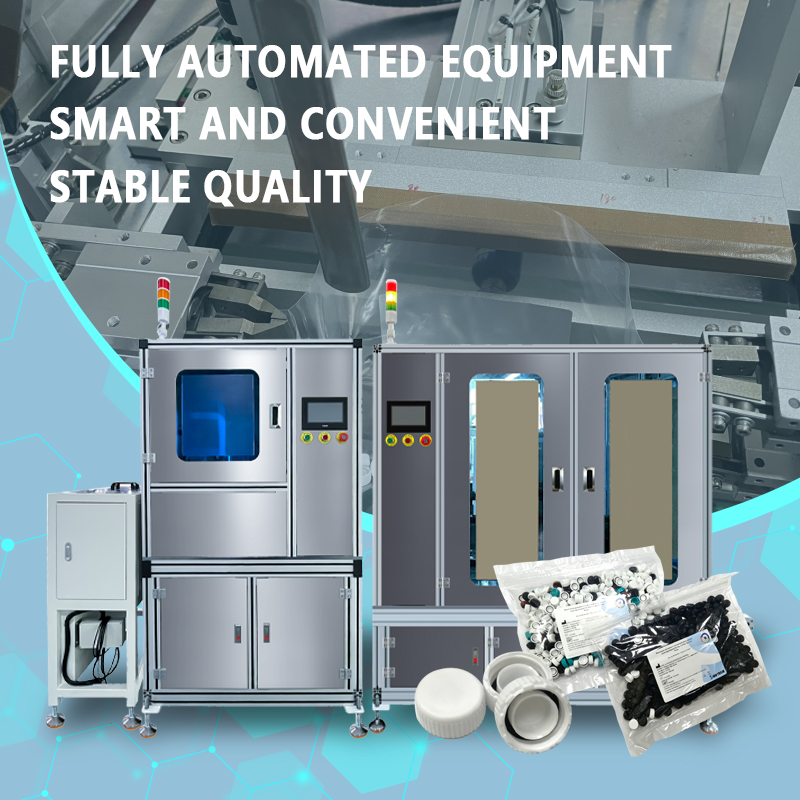

　　The Guanshentai automated O-ring production line is an integrated system designed for the fully automated manufacturing of O-rings, covering the entire process from raw materials to finished products. The equipment combines automatic material feeding, internal/open mixing, extrusion molding, automatic cutting and splicing, multi-cavity vulcanization, in-line visual inspection, automatic trimming, and counting/bagging. It enables a continuous, one-stop production workflow—transforming rubber strips into finished O-rings—with speeds reaching 3,000–6,000 pieces per hour (depending on specifications), effectively replacing traditional, fragmented manual production methods.

　　Technical parameters:

　　Model Number: GST-WJ017A

　　Sizes: L3900*W1730*H2050(mm)

　　Production Capacities: Based on product quantity

　　Power (Output): 1.5KW,220V

　　Customized Support: Yes

　　Key Advantages:

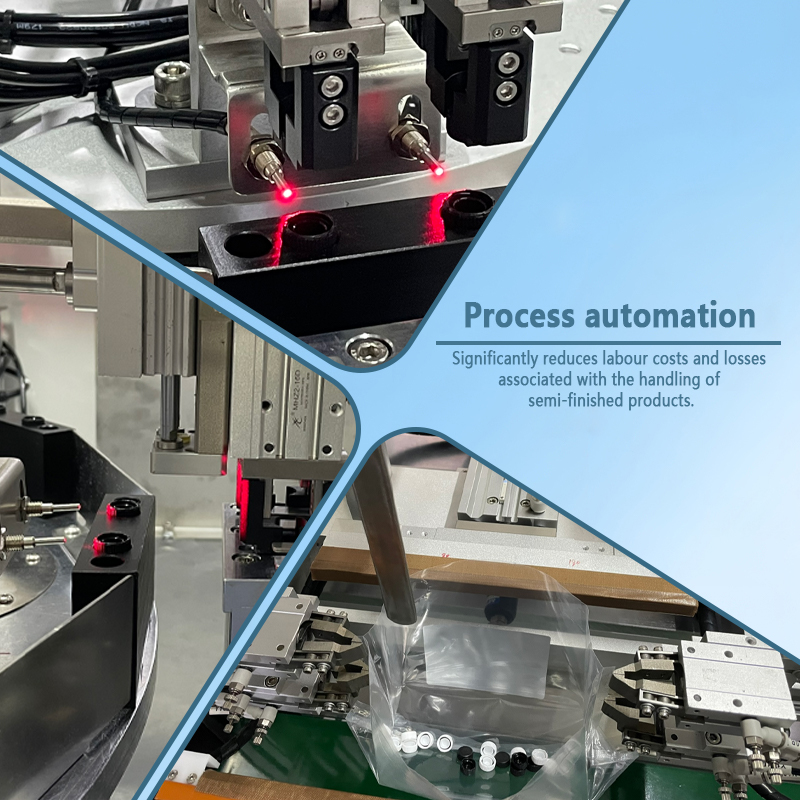

　　Continuous Integrated Production: The line utilizes an assembly-line layout where processes are seamlessly connected via synchronized conveying and transfer mechanisms. Operations ranging from extrusion, cutting, and splicing to vulcanization and inspection are performed in a single, fluid sequence. This eliminates the need for manual handling or intermediate transfers, significantly shortening production cycles and reducing the risk of contamination for semi-finished parts.

　　High-Precision Extrusion and Cutting: Equipped with a precision screw extruder and a servo-driven fixed-length cutting system, the line ensures stable rubber strip dimensions. Cutting length errors are controlled within ±0.1 mm, guaranteeing uniform material lengths and providing precise preforms for subsequent splicing and molding.

　　Seamless Automatic Splicing Technology: Utilizing butt-splicing or lap-splicing mechanisms, the system precisely joins the ends of cut rubber strips before feeding them into the vulcanization mold. The splice is smooth and secure, free from flash or misalignment; the finished O-ring features a seamless appearance, with joint strength matching that of the base material.

　　High-Efficiency Multi-Cavity Vulcanization: The system features a multi-cavity platen vulcanizer or injection molding machine capable of vulcanizing multiple O-rings simultaneously. Vulcanization temperature, pressure, and time are independently and precisely controlled to ensure thorough curing, dimensional stability, and excellent batch-to-batch consistency.

　　In-Line Full Inspection and Automatic Sorting: Integrated optical dimension inspection and airtightness sampling modules perform comprehensive in-line checks for inner diameter, cross-section diameter, roundness, and surface defects. Defective products are automatically rejected via air blast and sorted for collection, ensuring an ex-factory pass rate exceeding 99.9%.

　　Automatic Trimming and Deflashing: Equipped with cryogenic or mechanical trimming units. Cryogenic trimming is ideal for ultra-soft rubber materials, ensuring high efficiency without damaging the product body; it effectively removes molding flash and burrs, resulting in a smooth, high-quality finish that eliminates the need for manual secondary trimming.

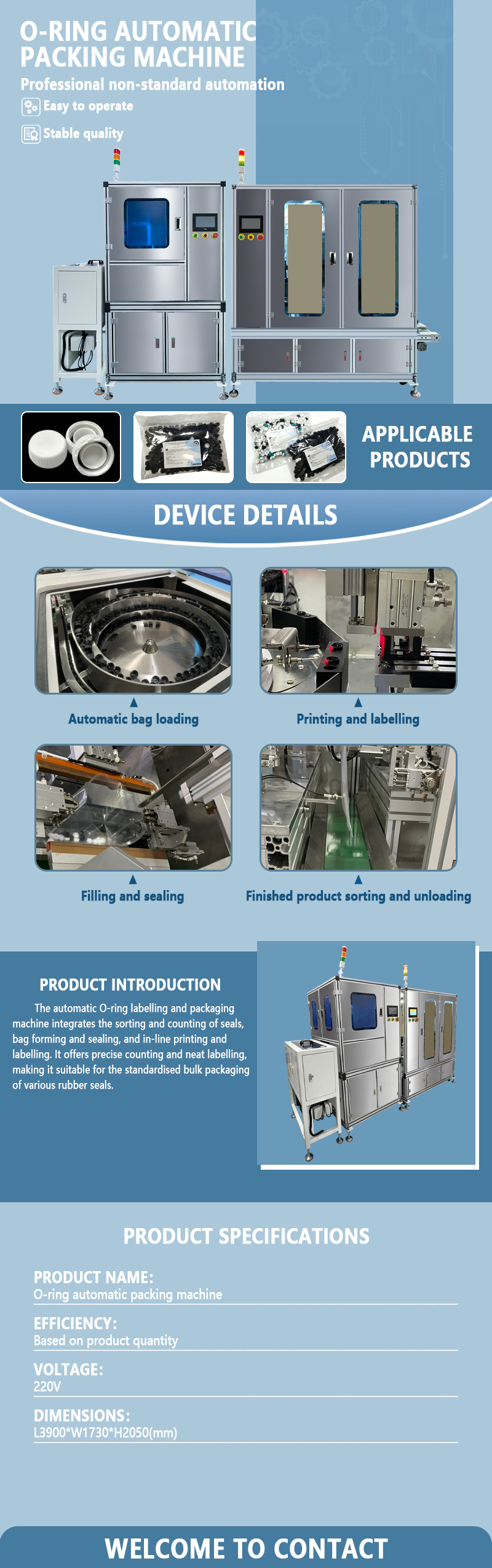

　　Automatic Counting and Bagging: Integrates photoelectric counting and automatic bagging mechanisms at the discharge end. Sealing rings are automatically counted and bagged according to preset quantities, with simultaneous sealing, preparing the product directly for dispatch and significantly reducing the labor required for downstream packaging.

　　Comprehensive Parameter and Recipe Management: Utilizes a PLC and touchscreen HMI for centralized process parameter settings and storage of multiple product recipes. Recipes can be recalled with a single click during product changeovers, drastically reducing machine setup time.

　　Clean and Safe Design: The entire line features an enclosed protective structure that effectively contains dust and odors, making it suitable for cleanrooms or production environments with strict environmental standards. Multiple emergency stop buttons and safety light curtains are installed throughout the line to ensure comprehensive operator safety.

　　Applications:Widely applicable to the large-scale, standardized, and automated production of various rubber seals, including rubber sealing components (O-rings, Y-rings, gaskets, oil seals), automotive parts (engine seals, A/C line seals), hydraulic and pneumatic components (reciprocating seals, static seals), medical devices (silicone seals, medical gaskets), and home appliance/sanitary ware components (water purifier seals, faucet gaskets). With its exceptional performance—characterized by continuous operation, precision, and cleanliness—the Guanshentai automatic O-ring production line empowers manufacturers to upgrade their entire process from raw rubber to finished packaging to full automation, thereby significantly cutting labor costs while boosting production capacity and product consistency.
