Overview

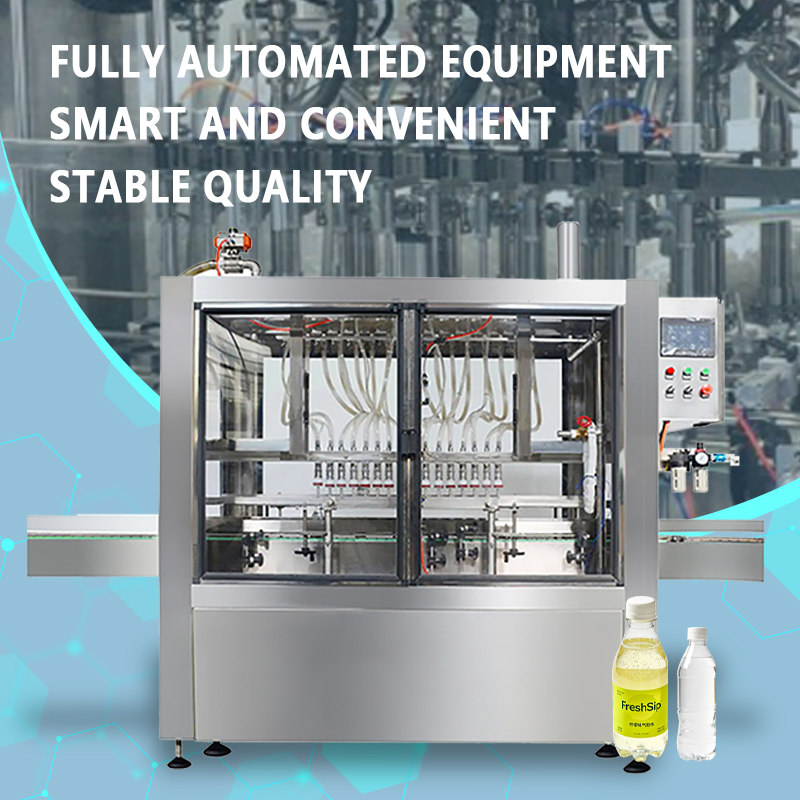

　　The Guanshentai automatic filling machine is a versatile filling system integrating automated control, high-precision metering, and high-efficiency output. It utilizes a PLC control system and a touchscreen HMI, equipped with a high-precision metering system—featuring piston, peristaltic, or ceramic pumps (selected based on material characteristics)—to accurately fill various liquids, pastes, and viscous materials. It supports filling volumes from 1ml to 5000ml (customizable) with an accuracy of ±0.3% to ±0.5% and speeds of 20–60 bottles per minute (depending on material and number of filling heads), meeting production needs of various scales.

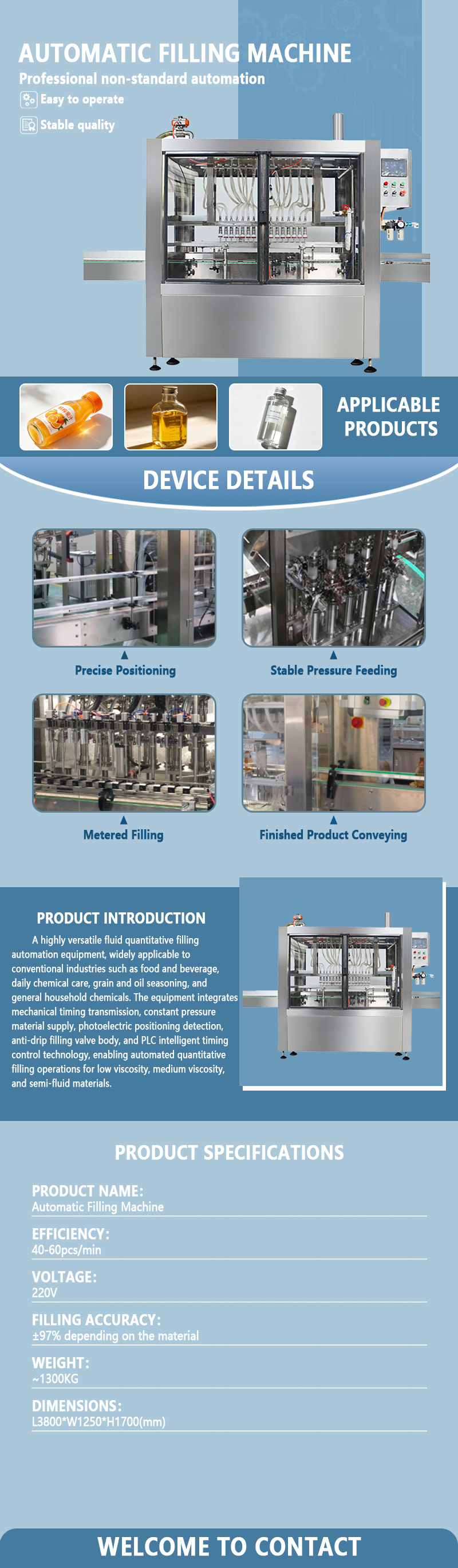

　　Technical parameters:

　　Model Number:GST-SWYP010A

　　Sizes:L3800*W1250*H1700(mm)

　　Production Capacities:40-60pcs/min

　　VOLTAGE:220V

　　FILLING ACCURACY:±97% depending on the material

　　WEIGHT:~1300KG

　　Customized Support: Yes

　　Key Advantages:

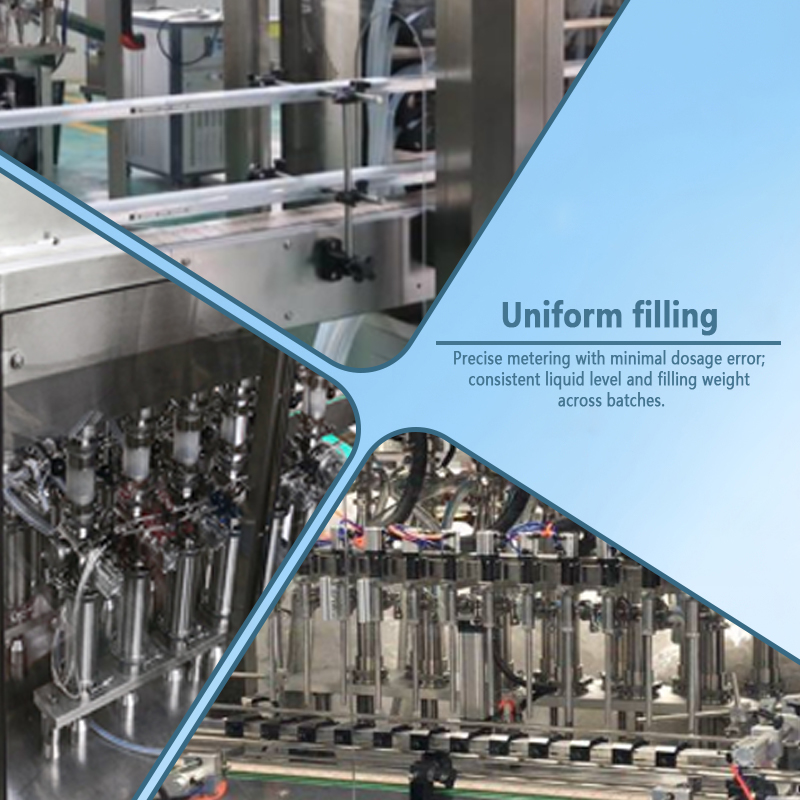

　　High-Precision Metering System: Uses high-precision metering pumps driven by servo motors with closed-loop feedback control. This ensures accurate, reliable dosing and high repeatability, effectively guaranteeing that the net content of every bottle meets standard requirements.

　　Anti-Drip Design: Equipped with anti-drip nozzles and a suck-back mechanism, the system automatically retracts residual liquid from the nozzle immediately after filling. This prevents drips from contaminating bottle mouths, bodies, or the conveyor belt, keeping the workspace clean and minimizing material waste.

　　"No Bottle, No Fill" Functionality: Photoelectric sensors automatically detect bottle positioning; filling pauses automatically if a bottle is missing or misaligned, preventing material spillage and maintaining a tidy work environment.

　　Quick-Disassembly Structure for Easy Cleaning: Material-contact parts use quick-release clamp connections, allowing for tool-free disassembly for cleaning or seal replacement. This is ideal for production scenarios requiring frequent material changes, with changeover cleaning times kept under 10 minutes.

　　Premium Materials: All product-contact parts are made of SUS316L stainless steel with mirror-polished interior surfaces. They are corrosion-resistant and non-stick, complying with GMP, FDA, and other hygiene standards for the food, pharmaceutical, and cosmetic industries.

　　Multi-Specification Compatibility: By swapping nozzles and adjusting positioning mechanisms, the machine accommodates various bottle shapes—including round, square, and custom profiles—across a wide range of sizes, ensuring flexible and convenient production changeovers.

　　Ease of Operation: Featuring a PLC and touchscreen HMI, parameters such as fill volume and speed can be set with a single touch, and multiple product recipes can be saved for quick recall during changeovers; general operators can master the equipment after minimal training.

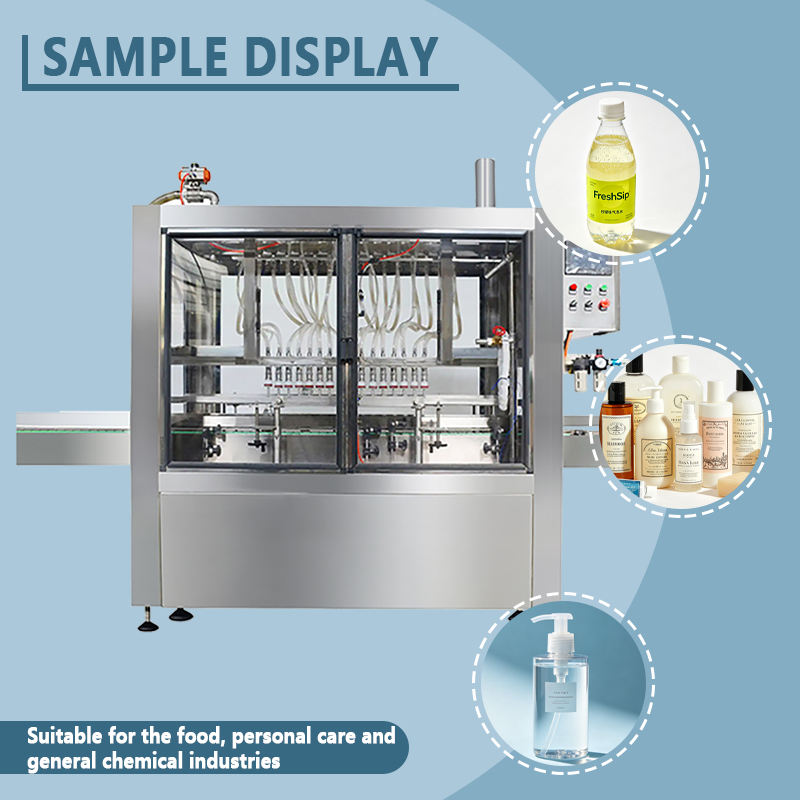

　　Applications:Widely suitable for the quantitative filling (bottles, bags, or cans) of various liquids and pastes across industries such as food (fruit juice, condiments, cooking oil, honey, sauces), personal care (shampoo, body wash, hand soap, skincare products), pharmaceuticals (oral liquids, disinfectants, syrups), chemicals (lubricants, antifreeze, cleaning agents), and health supplements (oral liquids, nutritional solutions). With its exceptional performance—characterized by high efficiency, precision, and stability—the Guanshentai automatic filling machine helps manufacturers automate their filling processes, effectively reducing labor costs while boosting production capacity and product consistency.
