Overview

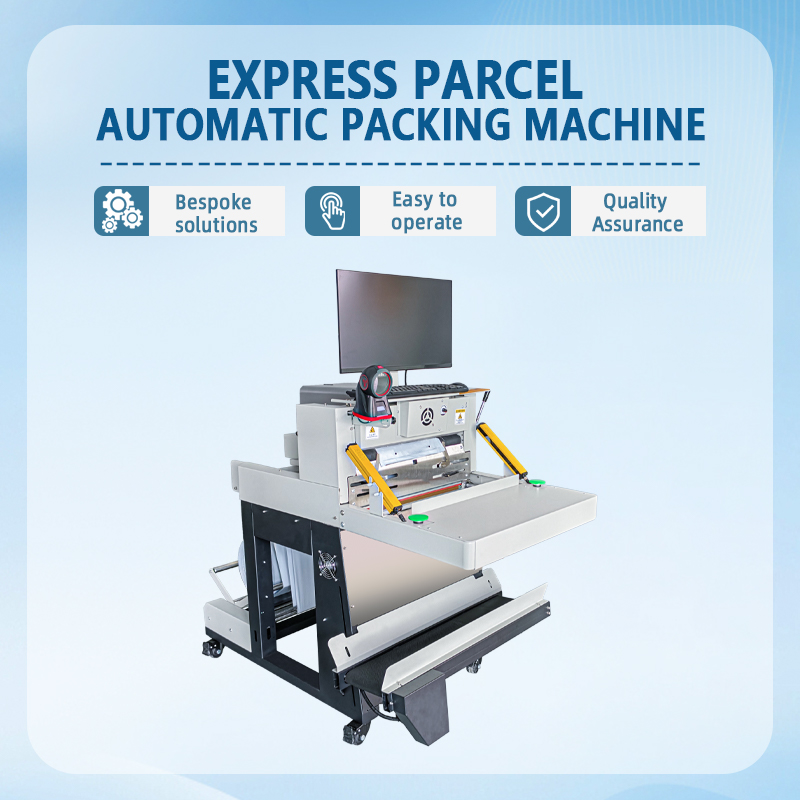

　　Guanshengtai's automatic bagging, packing, and sealing machine for express parcels is an integrated packaging device specifically designed for the automatic bagging, sealing, and labeling of e-commerce express parcels. The equipment integrates automatic bag feeding/making, automatic bag opening, automatic material feeding, automatic venting, automatic sealing (heat sealing/self-adhesive), and automatic labeling. Operators only need to place the goods to be packaged on the conveyor belt or connect to the incoming material from the front-end assembly line, and the equipment automatically completes the entire process of bagging, sealing, and labeling. Packaging speed can reach 600-1200 pieces/hour, significantly replacing manual bagging and sealing operations.

　　Core Advantages:

　　Automatic Bag Making/Opening System: Utilizes automatic roll film bag making or pre-made bag automatic opening. A pneumatic bag-opening mechanism fully opens the bag opening, ensuring a regular bag shape and proper opening for easy product insertion. The bag size can be automatically adjusted or preset according to the product size, effectively reducing packaging bag material costs.

　　Automatic Material Feeding and Bag Insertion: Utilizes a servo-driven feeding mechanism to smoothly push goods into the pre-opened packaging bag. The feeding speed and force are adjustable to accommodate goods of different weights and materials (such as clothing, daily necessities, and small appliances). The feeding process is smooth, preventing goods from shifting, tilting, or being damaged during bag insertion.

　　Bag Exhausting and Shaping: Equipped with a compression exhaust device before sealing, the bag uses flexible pressure rollers or extrusion plates to evenly expel air from the bag, resulting in a flat, aesthetically pleasing, and neatly stacked bagged product. This also reduces the risk of bag breakage due to bag expansion during transportation, saving storage and transportation space.

　　Automatic Sealing System: Supports both heat sealing (suitable for PE/PP heat-sealing films) and self-adhesive sealing (suitable for courier bags with built-in adhesive strips). Users can flexibly choose according to the packaging bag material. The seal is flat, firm, and uniformly aesthetically pleasing, ensuring it does not scatter or become damp during transportation.

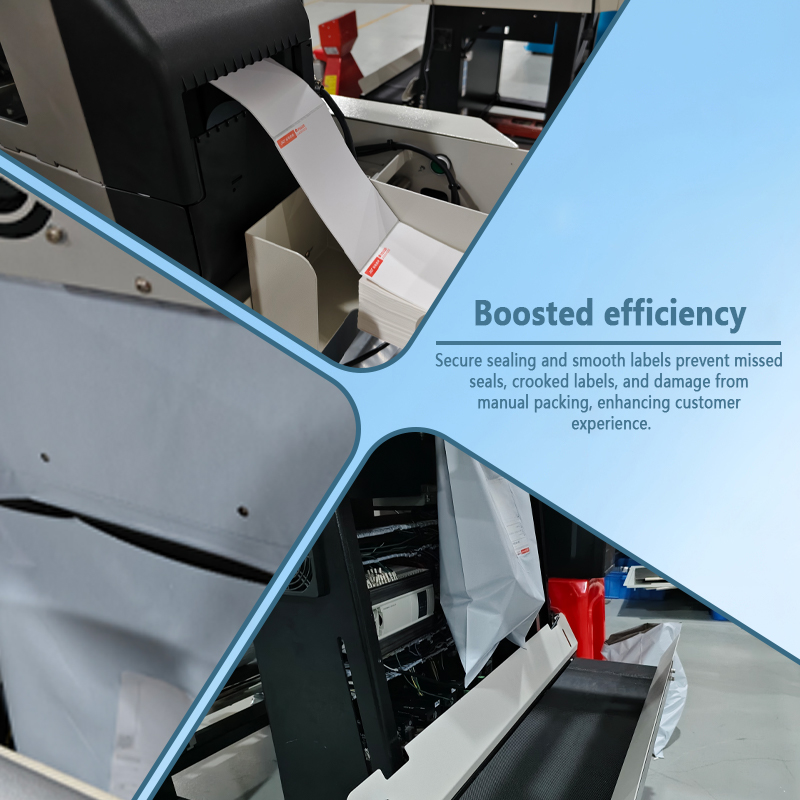

　　Automatic Labeling and Waybill Calibration: Integrates a barcode scanning module and an automatic labeling mechanism. After the goods are sealed in the bag, the courier waybill is automatically printed and affixed. The label placement is precisely calibrated using positioning baffles, ensuring consistent, flat, and bubble-free label placement on each package.

　　Scratch-resistant conveying: All parts in contact with the product and packaging bag are made of flexible material to prevent scratches on the product or packaging bag surface during conveying and packaging, ensuring product appearance quality.

　　Multi-size compatibility: By adjusting the positions of the pushing mechanism, bag supporting mechanism, and sealing mechanism, it can accommodate packaging bags of different sizes (bag length 200-600mm, bag width 150-400mm) and products of different volumes, making changeover adjustments convenient and efficient.

　　Safety protection: Equipped with a light curtain safety device and an emergency stop button, it automatically stops and triggers audible and visual alarms in abnormal situations, ensuring operator safety.

　　Easy operation: Utilizes a PLC and touchscreen human-machine interface, with intuitive parameter settings, real-time monitoring of operating status, and multiple built-in product formulas for one-button switching during changeovers.

　　Applicable Scenarios:

　　Widely applicable to e-commerce warehousing and shipping (automatic bagging and sealing of B2C orders such as clothing, daily necessities, small appliances, and books), express logistics sorting centers (secondary packaging and sealing of small and medium-sized parcels), community group buying delivery (pre-packaging and sealing of fresh food), and third-party cloud warehouse drop-off services. Guanshengtai's automatic bagging, packing, and sealing machine for express parcels, with its high efficiency, stability, and labor-saving performance, helps e-commerce and logistics companies automate the bagging and sealing process, effectively reducing labor costs and improving order processing efficiency and packaging standardization.

　　Equipment Details:

　　Model Number: GST-WJ014A

　　Sizes: L160cm * W90cm * H150cm

　　Weight: 220kg

　　Power: 750W (peak 1kW, average 500W-700W)

　　Production Capacity: 10 units/minute

　　Voltage: 220V/50Hz

　　Core Components: Motor, Printer

　　Customized Support: Yes
