Overview

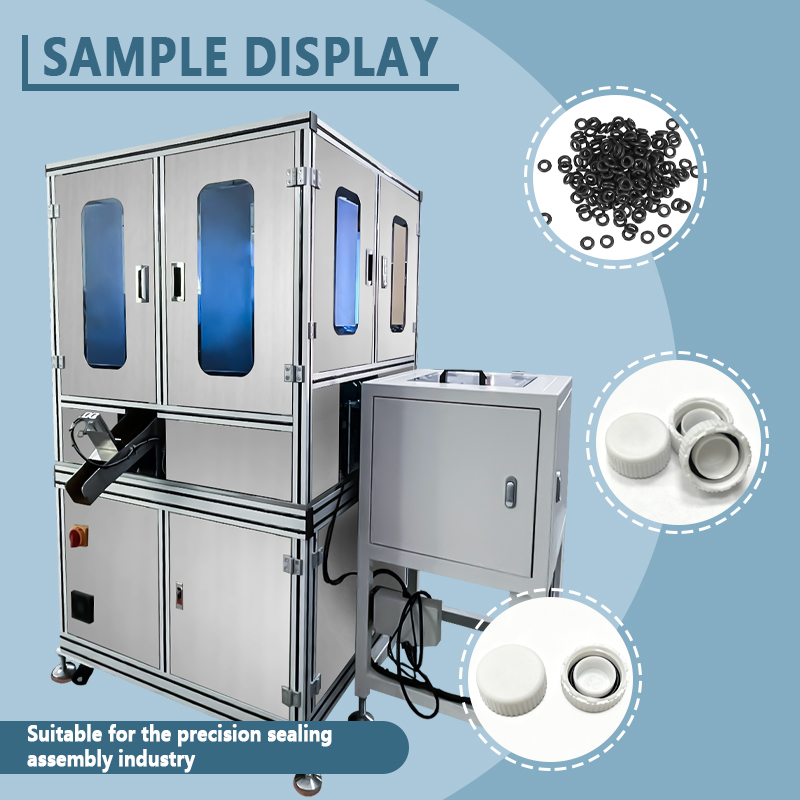

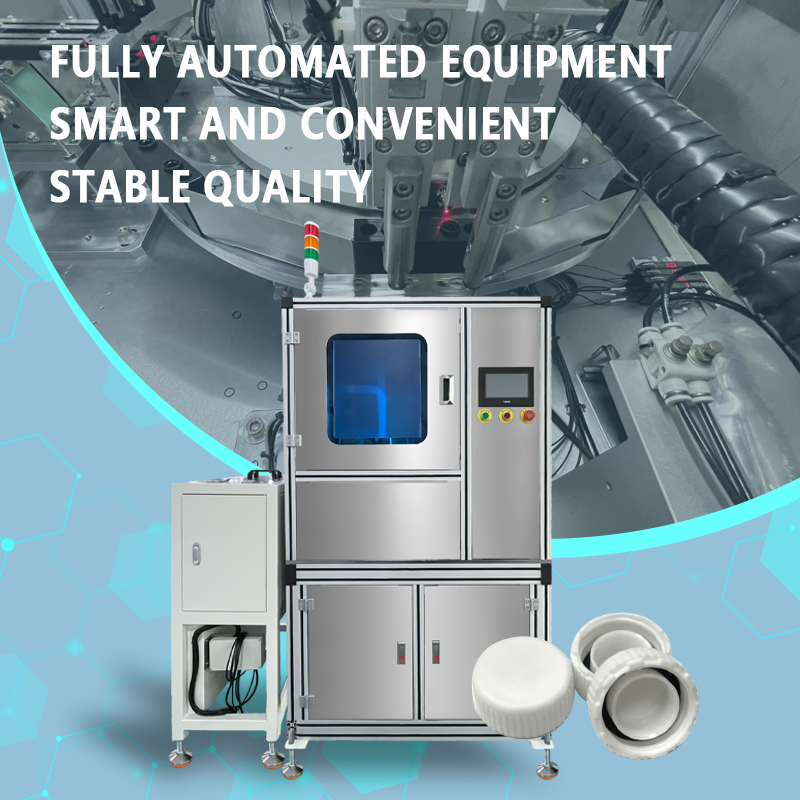

　　The Guanshentai O-ring/Gasket Automatic Assembly Machine is specialized equipment designed for the automated assembly of elastic annular parts—such as O-rings and gaskets—onto various product substrates. The system integrates automatic O-ring sorting and feeding, substrate positioning, expansion-based installation, in-place detection, and automatic unloading into a single streamlined process. It transforms the workflow from handling bulk components to producing finished assemblies through a fully automated, one-stop operation. With assembly speeds reaching 600–1,200 units per hour, it effectively replaces traditional manual assembly methods.

　　Key Advantages:

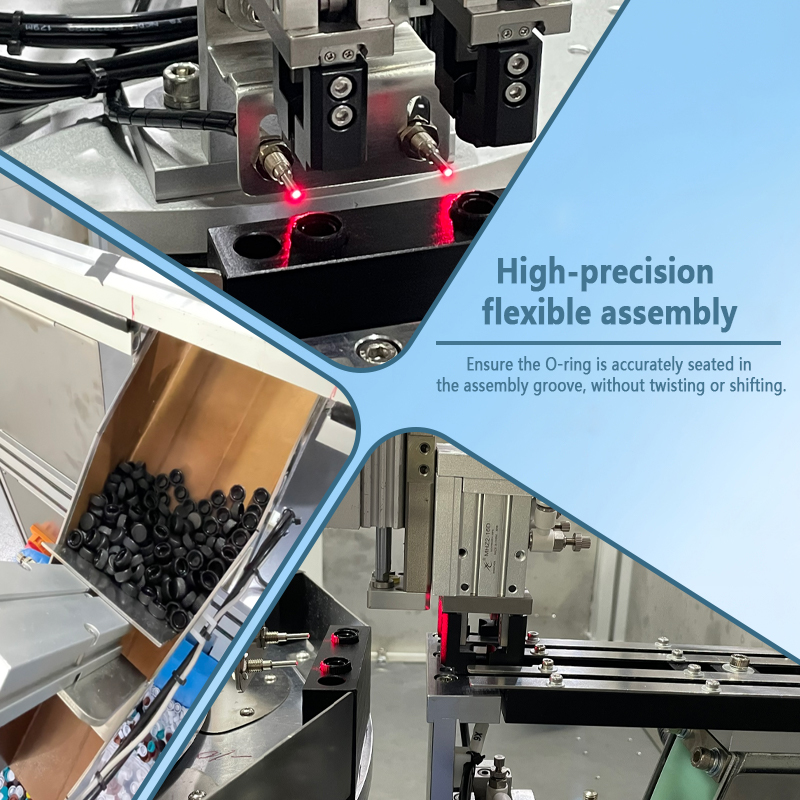

　　Precision Expansion & Installation: Utilizing a coordinated structure of conical guide sleeves and expansion jaws, the machine uniformly expands the O-ring to match the installation groove diameter before precisely releasing it into place. The expansion range is adjustable and controlled, preventing deformation, twisting, or loss of elasticity caused by over-stretching, and ensuring the O-ring sits perfectly within the groove without twisting or rolling.

　　Multi-Specification Compatibility: By simply swapping expansion guide sleeves and positioning fixtures, the machine accommodates O-rings with diameters of 5–100mm and cross-section diameters of 1–10mm (made from materials such as NBR, FKM, Silicone, EPDM, etc.). It also supports assembly for substrates of various shapes (round, square, irregular fittings, etc.), offering versatility and flexible production changeovers.

　　Scratch-Free Flexible Handling: O-rings are sorted via a flexible vibratory bowl feeder and transported along polished Teflon or stainless steel tracks. All contact surfaces are treated to be smooth, preventing scratches, burrs, or contamination by foreign matter during sorting and transport, thereby preserving the integrity of the seal's appearance.

　　Error Prevention & Detection: Equipped with fiber-optic sensors and pressure-sensing devices, the system offers multiple error-prevention functions, including alarms for material shortages, assembly depth monitoring, detection of missing O-rings, and verification of proper seating. Defective parts are automatically separated to ensure a high finished-product pass rate.

　　Optional Multi-Point Synchronous Assembly: Depending on production capacity requirements, the machine can be configured for single-station or dual-station parallel assembly. Each station operates independently yet synchronously, effectively boosting overall output efficiency.

　　Clean-room compatible design: The machine features an enclosed, dust-proof structure, with the option to install a transparent protective cover over the assembly area to effectively isolate external dust contamination; it is suitable for clean-room workshops or assembly environments with strict cleanliness requirements.

　　Parameter and recipe management: Controlled via PLC and a touchscreen HMI, the system allows for precise configuration of key parameters—such as expansion stroke, release speed, and dwell time—and the storage of multiple product recipes. These can be recalled with a single touch during product changeovers, significantly reducing setup time.

　　User-friendly operation: Equipped with visual status indicators and a self-diagnostic function, the system displays fault codes and troubleshooting recommendations directly on the screen in the event of an anomaly, ensuring quick and convenient maintenance.

　　Application scenarios:

　　Widely applicable to the automated assembly of various O-rings and annular gaskets across industries such as automotive parts manufacturing (oil seals, water seals, valve seals, A/C line connector seals), hydraulics and pneumatics (connector and valve body seals), medical devices (syringe piston seals, IV set connector seals), sanitary ware/piping (faucet seals, pipe connector seals), electronics and electrical appliances (waterproof and dust-proof seals), and home appliances (water purifier filter seals, coffee machine seals). Guanshentai’s automatic O-ring assembly machine delivers efficient, precise, and stable performance, helping manufacturers overcome the efficiency bottlenecks associated with manual assembly while enhancing sealing reliability and assembly consistency.

　　Technical parameters:

　　Model Number: GST-WJ012A

　　Sizes: L1670*W1290*H2121(mm)

　　Production Capacities: 1440pcs/h

　　Power (Output): 220V/50HZ 20A 5KW

　　Customized Support: Yes
