Overview

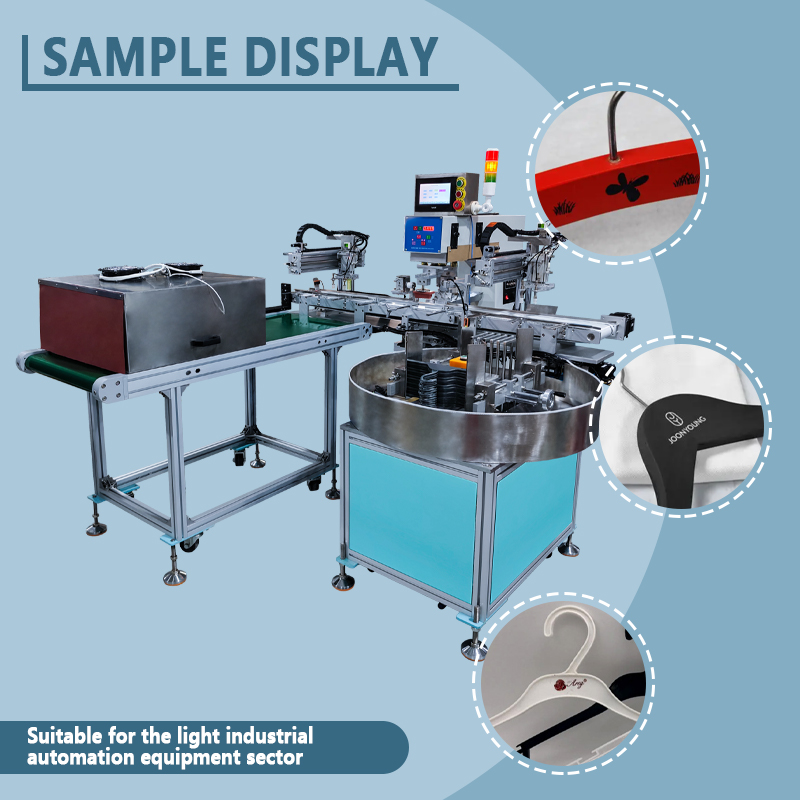

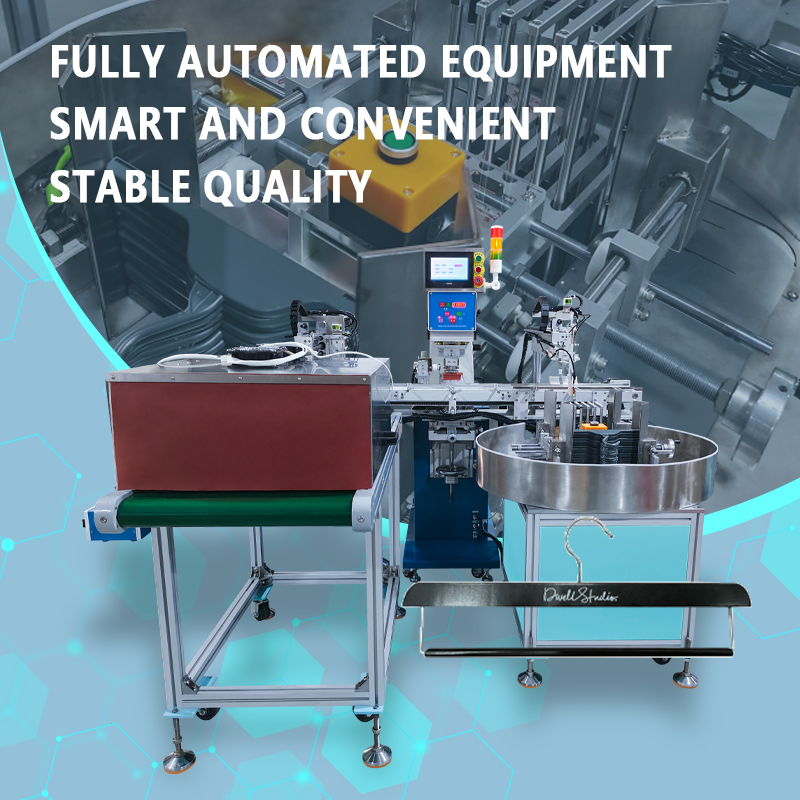

　　The Guanshentai Automatic Hanger Pad Printing Machine is a specialized automated system designed for the precision pad printing of logos and decorative patterns onto the surfaces of garment display hangers, such as those for shirts, trousers, and skirts. The equipment integrates an automatic hanger feeding and sorting system, multi-color pad printing units (featuring sealed ink cup or open ink tray systems, silicone pads, and precision printing platforms), UV curing or hot-air drying systems, and an automatic unloading mechanism. The entire line automates the process from bulk hanger input to finished product printing, achieving speeds of 25–40 pieces per minute and capable of printing brand logos, size labels, barcodes, decorative patterns, and usage instructions.

　　Key Advantages:

　　Precision Printing on Irregular, Curved Surfaces: Utilizing pneumatic or servo-driven pad printing heads combined with custom-contoured printing jigs, the system automatically adapts to curved areas—such as hanger shoulders and necks—during the downward stroke. This ensures patterns remain clear, complete, and free from distortion or stretching on non-flat surfaces, making it particularly suitable for printing on irregular areas like the junction between the hook and the shoulder.

　　Multi-Color Registration Capability: Configurable with single- or dual-color pad printing units (upgradable to four colors) based on process requirements. High-precision registration systems align the color groups to ensure accurate pattern overlay, meeting needs for multi-color printing involving brand logos, size labels, and decorative stripes.

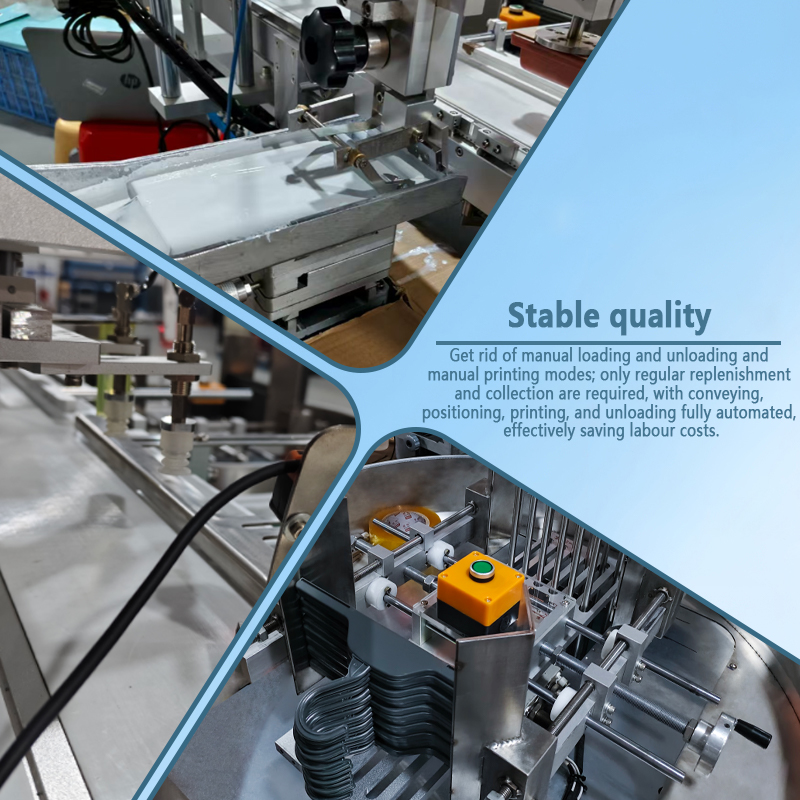

　　Automated Feeding System: Hangers are automatically sorted via a vibratory bowl feeder and transported individually to the printing station by a specialized conveyor chain. This ensures high positioning accuracy and stable feeding, eliminating the need for manual placement and significantly reducing labor intensity.

　　Superior Ink Performance: Employs a sealed ink cup system (with an optional open ink tray system) to effectively minimize solvent evaporation and maintain stable ink viscosity. The resulting ink layer is uniform and exhibits strong adhesion; combined with UV curing or hot-air drying, the print is resistant to friction and scratching, meeting durability requirements for daily use, storage, and transportation.

　　Scratch-free Flexible Conveying: Contact points for conveying and positioning utilize non-metallic, flexible materials (such as Teflon or polyurethane) or rubber-coated surfaces. This prevents scratching the hanger's glossy finish during transport and printing, ensuring high aesthetic quality.

　　Material Shortage Detection and Protection: Equipped with systems for hanger presence detection, ink level monitoring, and air pressure anomaly alarms. The machine automatically stops when materials run out or a hanger is missing, effectively preventing blank prints, ink smudging, and idle operation, thereby ensuring continuous, stable performance.

　　Rapid Multi-spec Changeover: By swapping vibratory bowl tracks and contour-matching printing jigs, and adjusting positioning mechanisms, the system accommodates various hanger sizes and styles—including adult, children’s, trouser, skirt, and strap hangers—making production changeovers flexible and convenient.

　　User-friendly Operation: Features a PLC and touchscreen HMI. Parameters such as printing speed, pad printing stroke, and curing temperature can be set with a single touch; multiple product recipes can be saved and quickly recalled for changeovers, allowing general operators to run the machine after minimal training.

　　Applications:

　　Widely applicable to automated surface marking and decorative printing on hangers in sectors such as garment accessory manufacturing (hangers for trousers, skirts, straps, etc.), household goods (hooks, coat rack labels), and branded apparel (custom brand logos and size markings). With its precision, efficiency, and stability, the Guanshentai automatic hanger pad printing machine helps manufacturers automate their marking processes, enhancing both brand recognition and product aesthetics.

　　Technical parameters:

　　Model Number: GST-WJ008A

　　Sizes: L1500*W800*H1500mm

　　Voltage: 220V AC

　　Air pressure: 0.4-0.6MPA.

　　Work efficiency: 10-20 times / min,

　　Cylinders, solenoid valves are made of Taiwan Yadek, and electrical appliances are made of Omron.

　　Customized Support: Yes
