Overview

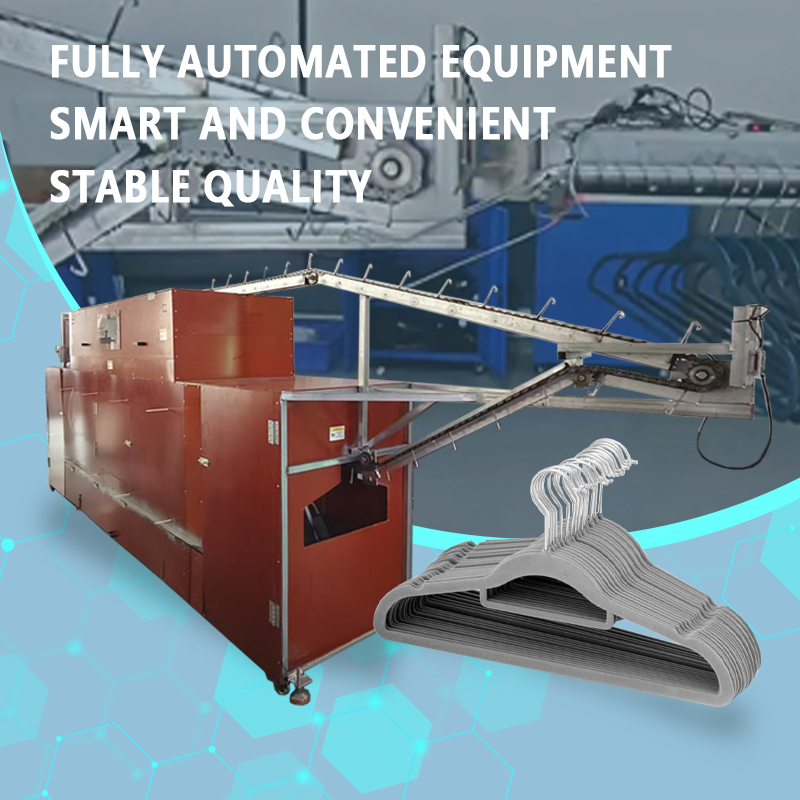

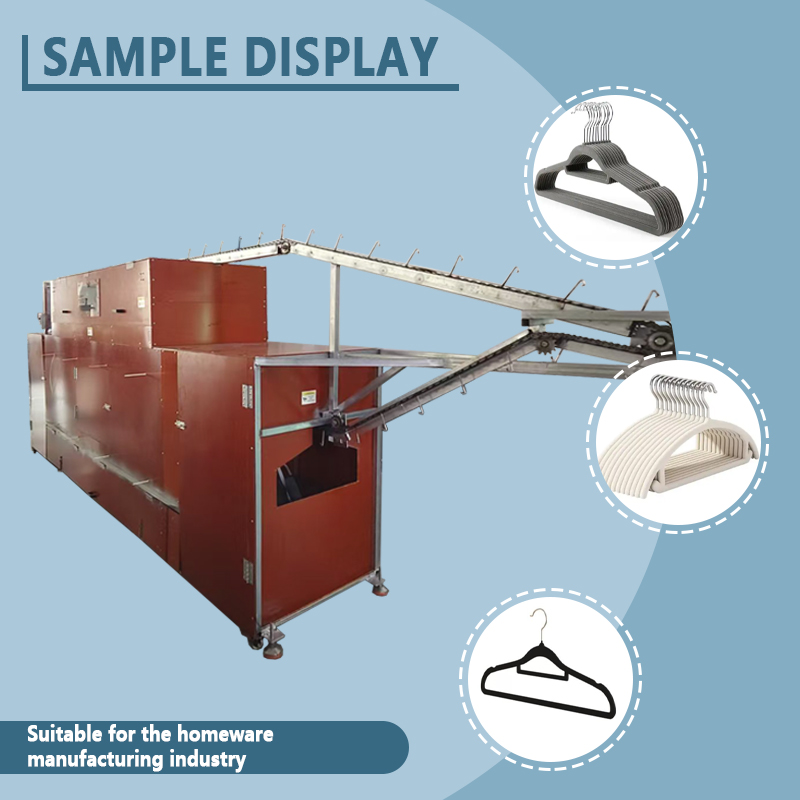

　　The Guanshentai Automatic Flocking Production Line is a fully automated system designed specifically for the electrostatic flocking of various hanger types (plastic, wooden, and metal). Integrating processes such as automatic loading, pre-treatment (dust removal), automatic adhesive spraying, electrostatic flocking, excess flock recovery, drying/curing, and automatic unloading, the line enables a continuous, one-stop workflow from bare hangers to finished flocked products. With a production capacity of 500–1,200 units per hour, it effectively replaces traditional manual flocking methods.

　　Key Advantages:

　　High-Voltage Electrostatic Flocking: Utilizing a high-voltage generator and a specialized flocking chamber, flock fibers are oriented vertically and embedded into the adhesive-coated surface under a high-voltage electric field. This ensures uniform density, excellent fiber uprightness, and a soft, premium texture, resulting in consistent product quality.

　　Fully Automatic Spraying System: Equipped with automatic spray guns and precision adhesive pumps, the system ensures even coating without sagging or missed spots. Controllable adhesive thickness guarantees strong fiber adhesion and durability, ensuring the finished hangers do not shed flock or lose their coating.

　　Efficient Excess Flock Recovery: The flocking chamber features an integrated cyclone dust removal and vibrating screen recovery system. Unattached fibers are collected, screened, and automatically recirculated to the supply system; a fiber utilization rate of over 95% significantly reduces material costs.

　　Intelligent Drying and Curing: A hot-air circulation drying tunnel with independently controlled temperature zones (adjustable from room temperature to 150°C) ensures thorough curing of the adhesive and flock. This results in a robust flocking layer that meets the specific requirements of various hanger materials and adhesive processes.

　　Automatic Loading and Unloading System: The line features an automatic loading unit at the intake; operators simply place hangers onto the conveyor chain fixtures, and the equipment automatically handles angle adjustment and positioning. The unloading end is equipped with a pneumatic discharge mechanism, allowing finished hangers to automatically detach from the fixtures and slide into collection bins, eliminating the need for manual removal and effectively reducing labor intensity.

　　Eco-friendly Dust and Odor Removal: The entire line is equipped with water-curtain dust removal and activated carbon odor control systems. These effectively filter paint mist and odors generated during spraying and drying, ensuring emissions meet environmental standards and maintaining a safe, clean workshop environment.

　　Multi-specification Compatibility: The spacing of the conveyor chain hangers is adjustable. By modifying spraying parameters and flocking duration, the system accommodates various hanger types—including those for children, adults, trousers, and skirts—across different sizes and shapes, allowing for flexible and convenient product changeovers.

　　User-friendly Operation: Featuring a PLC and touchscreen HMI, the system allows for centralized control of all operational parameters (such as spray pressure, electrostatic voltage, flocking time, and drying temperature). Multiple process recipes can be saved and recalled with a single touch, facilitating quick changeovers.

　　Application Scenarios:

　　This system is widely used for surface flocking in sectors such as hanger manufacturing (flocking for plastic, wooden, and metal hangers), household goods production (non-slip and decorative hangers), high-end retail display accessories, and hospitality/home care supplies. With its exceptional performance—characterized by continuous operation, high efficiency, and eco-friendliness—the Guanshentai automatic hanger flocking line helps manufacturers automate their flocking processes, effectively boosting production capacity and product value.

　　Technical parameters:

　　Model Number: GST-WJ006A

　　Machine size: 40 meters long, 1.5 meters wide, 2.5 meters high

　　Efficiency: 40-50PCS / minute

　　Control: microcomputer control system

　　Electricity: AC220V 50HZ

　　Gas pressure: 0.4-0.6MPA

　　Customized Support: Yes
