Overview

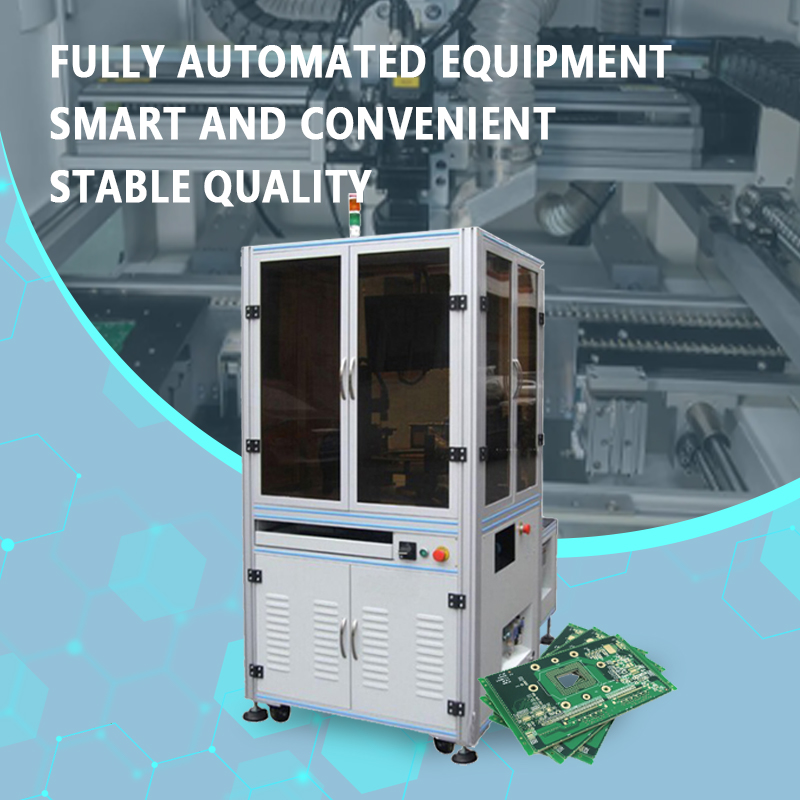

　　The Guanshentai Automatic PCB Loader is specialized equipment designed for the automatic feeding and precise placement of PCBs (Printed Circuit Boards) at the start of a production line. Integrating a lifting magazine, an automatic board separation module, a positioning/alignment stage, and a transfer platform, the system separates stacked PCBs one by one and places them accurately onto a transfer station or production conveyor. This enables seamless integration with downstream processes such as SMT mounters, printers, and AOI inspection systems. With a loading speed of 6–12 boards per minute, it effectively replaces repetitive manual loading tasks.

　　Key Advantages:

　　Intelligent, Scratch-Free Separation: Utilizes advanced separation technology combining air-float separation and lateral air jets. This ensures the top PCB is fully separated from the stack before being picked up by suction cups, effectively preventing scratches or circuit damage caused by board-to-board friction. It is also equipped with sensors to detect stacked boards, eliminating the risk of feeding multiple boards into the line simultaneously.

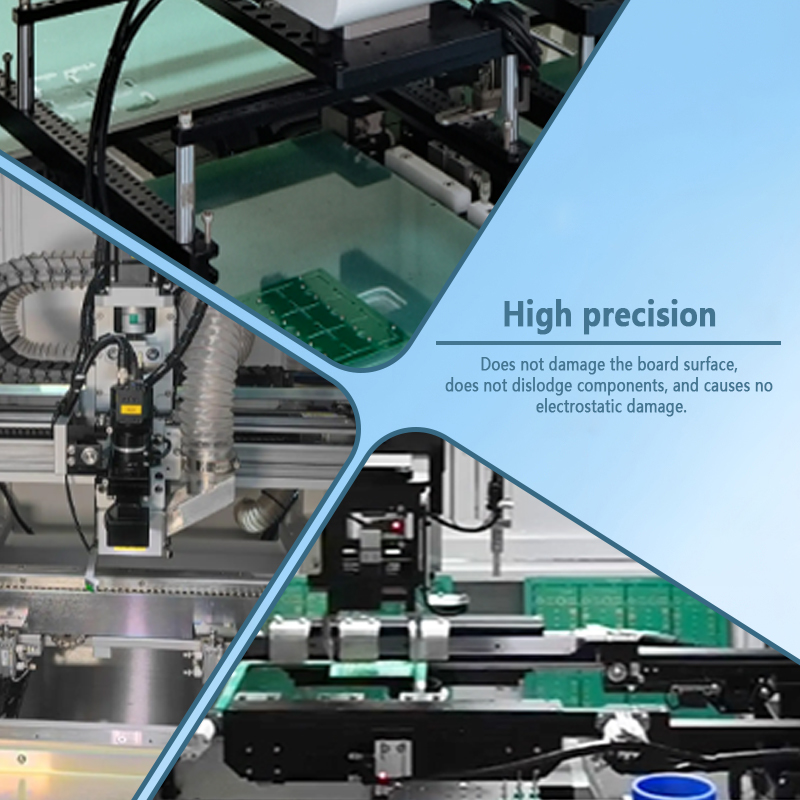

　　Precision Positioning and Placement: Features a built-in X/Y/Z three-axis servo positioning module that automatically centers and aligns the picked-up PCB. It achieves placement accuracy within ±0.5mm, ensuring precise alignment with transfer station pins or smooth transition to the next process, thereby minimizing defects like placement offsets caused by misalignment.

　　Anti-Static and Clean Design: The pickup mechanism employs anti-static suction cups and a fully enclosed dust cover. This effectively eliminates static interference with sensitive PCB components and blocks airborne dust, making it ideal for high-cleanliness environments such as SMT, high-precision component mounting, and semiconductor packaging.

　　High-Capacity Magazine: Equipped with a large-capacity lifting magazine capable of holding 150–300 PCBs (depending on board thickness) in a single load. This reduces the frequency of manual reloading and enhances continuous operational efficiency.

　　Flexible Width Adjustment: Magazine and conveyor track widths can be quickly adjusted via handwheel or servo control. The system accommodates various PCB sizes (ranging from a minimum of 50×50mm to a maximum of 400×500mm), allowing for flexible and convenient product changeovers.

　　Comprehensive Safety Protection: Equipped with light curtain safety guards, an emergency stop switch, and an audible-visual alarm system; the machine automatically halts and issues alerts upon detecting anomalies, ensuring the safety of both operators and equipment.

　　Networked & Interconnected Control: Features a standard SMEMA communication interface (based on dry contact signal exchange, not AI self-learning), enabling signal-based integration with upstream and downstream equipment—such as pick-and-place machines, printers, and reflow ovens—to automatically synchronize production pacing and facilitate collaborative line operations.

　　User-Friendly Operation: Utilizes a PLC and touchscreen HMI for intuitive parameter settings; includes built-in product recipes that can be recalled with a single touch during product changeovers.

　　Application Scenarios:

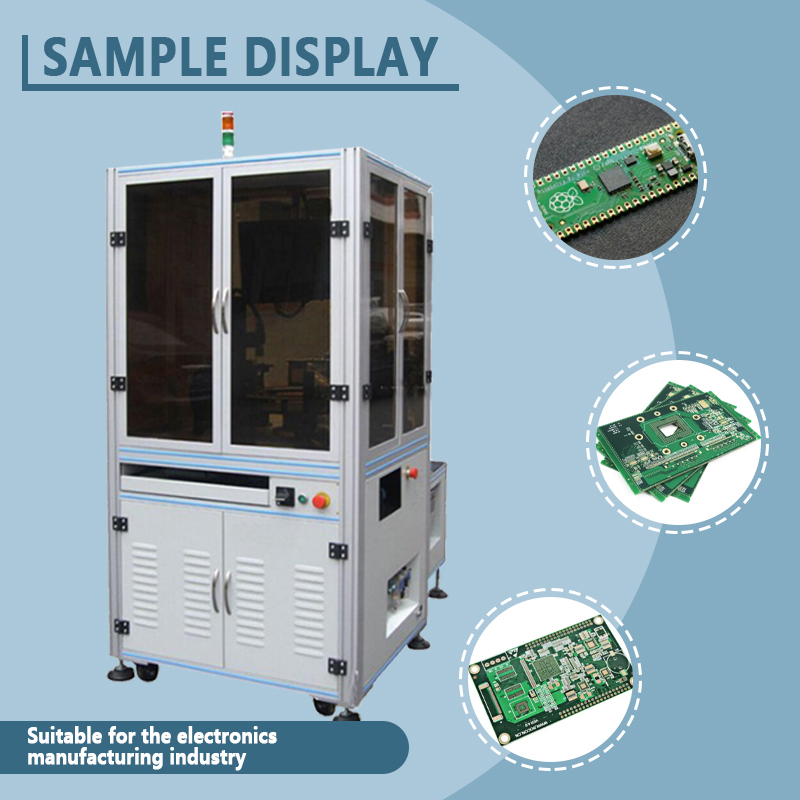

　　Widely applicable to the automatic board-feeding stage of various PCB production lines, including SMT surface mount lines (automatic PCB loading), electronics manufacturing (mobile phone/computer motherboards, power supply boards, control boards), automotive electronics (ECU control boards, sensor circuit boards), and LED lighting/display sectors (LED light boards, display module boards). With its stable and efficient automatic feeding performance, the Guanshentai automatic PCB loader helps electronics manufacturers automate the front-end board-loading process of SMT lines, effectively reducing manual labor intensity and enhancing overall production line efficiency.

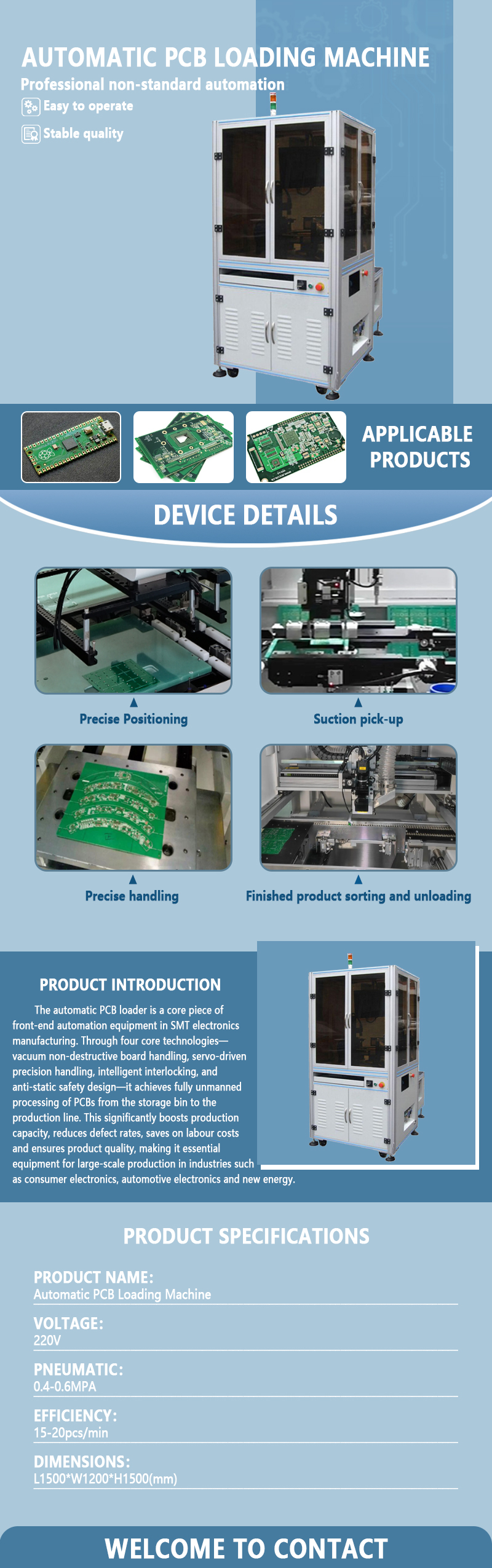

　　Technical parameters:

　　Model Number: GST-WJ001A

　　Power supply: 220VAC, 50Hz/60Hz, 20KW;

　　Air pressure: 0.4-0.6MPA;

　　Dimensions: 1500*1200*1500;

　　Work efficiency: 15-20 times/min;

　　Applicable industries: SMT electronic products industry.

　　Customized Support: Yes
