Overview

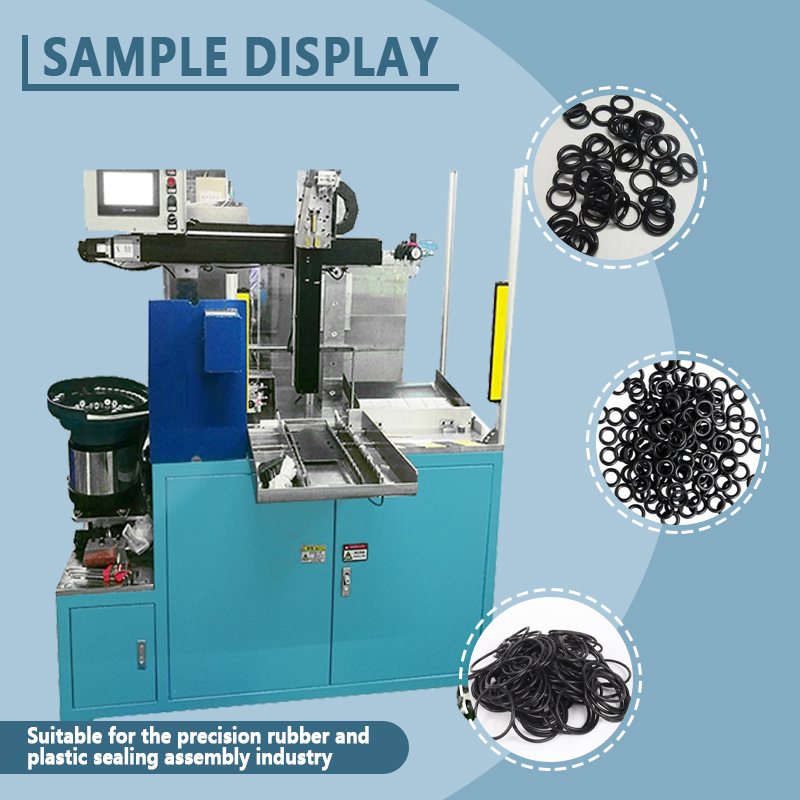

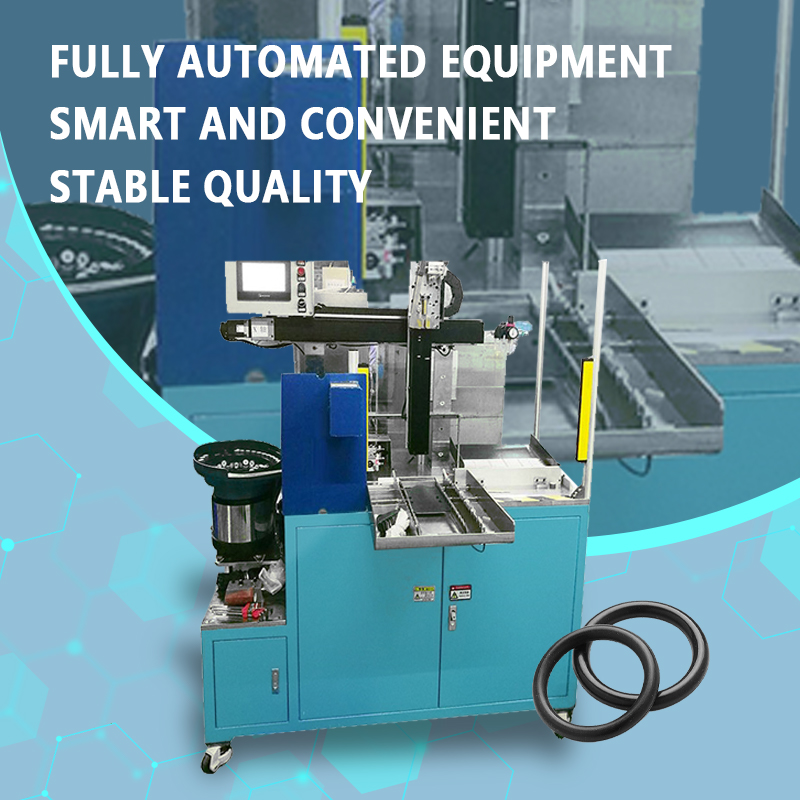

　　The Guanshentai Automatic Rubber Washer Press-Fit Machine is specialized equipment designed for the automated assembly of rubber washers and gaskets onto various product substrates. It integrates automatic sorting and feeding of washers, automatic substrate positioning, press-fitting, press-depth monitoring, and automatic unloading into a single system. The line delivers a one-stop automated process—transforming bulk washers and workpieces into finished assemblies—with a throughput of 600–1,200 units per hour (depending on workpiece complexity), effectively replacing traditional manual assembly methods.

　　Key Advantages:

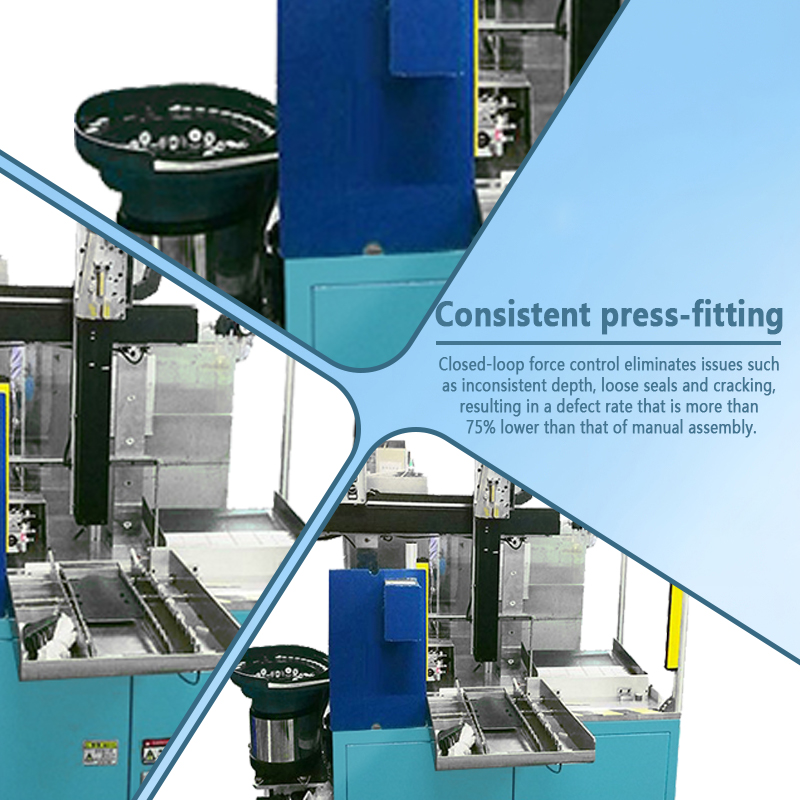

　　Precision Press-Fit Control: Utilizing servo drives and a precision press-fit mechanism, the system allows for the accurate setting and real-time monitoring of press force and depth. This ensures washers are fully seated in the mounting groove—flat, without tilting, twisting, or rolling—achieving a seating success rate of over 99.9%.

　　Error Prevention and Detection: Equipped with fiber-optic and pressure sensors, the machine offers multiple error-prevention functions, including alarms for low material levels, press-depth verification, detection of missing washers, and confirmation of proper seating. Defective parts are automatically separated to ensure a high finished-product pass rate.

　　Automatic Washer Feeding: Uses a vibratory bowl feeder for automatic sorting and a flexible linear vibratory track for transport, ensuring consistent washer orientation and stable, continuous delivery. Contact surfaces on the track are Teflon-coated to prevent the rubber washers from sticking or getting scratched during transport.

　　Flexible Compatibility Across Specifications: By simply changing the press-fit fixture and feed track, the machine accommodates various washer specifications (diameters of 5–80mm) and materials (NBR, silicone, FKM, EPDM, etc.). It also supports diverse substrate shapes (round, square, irregular, etc.), allowing for flexible and convenient production changeovers.

　　Controllable Pressure to Prevent Damage: The press-fit mechanism features pressure sensors and limit protection. Press force is precisely adjustable to prevent excessive pressure—which could over-compress the washer and cause a loss of elasticity—or insufficient pressure, which could result in an insecure fit.

　　Clean Design: The machine features an enclosed, dust-proof structure, with the option to install a transparent protective cover over the press-fitting zone to effectively isolate external dust contamination; it is suitable for cleanrooms or assembly environments with cleanliness requirements.

　　Ease of Operation: Equipped with a PLC and touchscreen HMI, the system allows parameters such as press-in speed, depth, and dwell time to be set with a single touch and saved as product recipes for quick recall during changeovers; general operators can master the machine after simple training.

　　Applications:

　　Widely applicable to automated press-fitting operations for various rubber washers and gaskets across industries such as automotive parts (oil circuit sealing washers, valve cover gaskets), hydraulics and pneumatics (fitting washers, valve body gaskets), medical devices (IV set connector washers), sanitary ware/piping (faucet washers, pipe fitting gaskets), and home appliances (water purifier filter washers, coffee machine gaskets). With its efficient, precise, and stable performance, the Guanshentai automatic rubber washer press-fitting machine helps manufacturers upgrade their sealing component assembly processes to automation, effectively enhancing sealing reliability and assembly consistency.

　　Technical parameters:

　　Model Number: GST-WJ002A

　　Power supply: 220VAC, 50Hz/60Hz, 20KW.

　　Air pressure: 0.4-0.6MPA;

　　Overall dimensions: 1500X*800*1700;

　　Working efficiency: 15-20 times / min;

　　Applicable industries: electronic parts, plastic accessories, hardware products industry.

　　Customized Support: Yes
