Overview

　　The Guanshentai Automatic Facial Mask Folding Machine is specialized equipment designed to automatically fold sheet-style facial masks (made of materials such as non-woven fabric, silk, or bio-fiber) and insert them into pouches. Integrating automatic sheet feeding, multi-stage folding, automatic pouch insertion, and semi-finished product output, the machine automates the entire process—from handling stacked sheets to producing folded, pouch-inserted semi-finished goods. With a folding speed of 2,000–3,000 pieces per hour, it effectively replaces traditional manual folding and insertion methods.

　　Key Advantages:

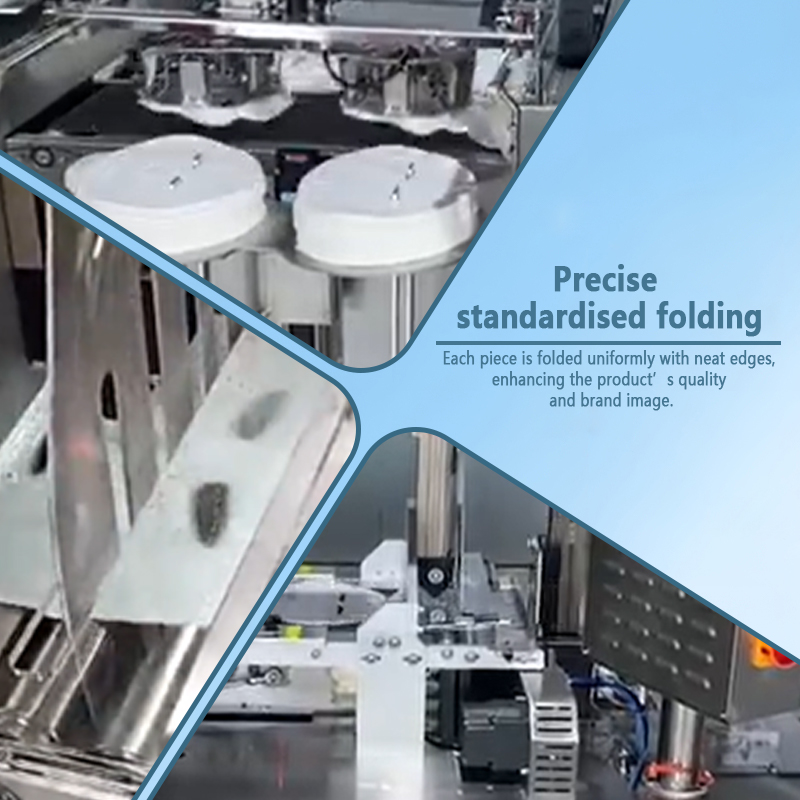

　　Multi-Mode Folding: Supports various folding styles, including two-fold, three-fold, and four-fold configurations. Precision folding is achieved through the coordination of adjustable folding plates and pneumatic creasing mechanisms, ensuring uniform dimensions and smooth creases to meet diverse pouch and packaging requirements.

　　Anti-Adhesion Automatic Feeding: Utilizes vacuum suction cups combined with a sheet-separation mechanism to pick up stacked sheets one by one. This effectively prevents issues such as folding errors or overlapping insertions caused by multiple sheets sticking together during feeding.

　　Damage-Free Flexible Handling: All contact surfaces utilize scratch-resistant, flexible materials (such as silicone or Teflon). The folding and transport processes are smooth and gentle, preventing fiber pulling, fuzzing, or tearing of non-woven or silk materials, thereby maintaining the sheet's integrity and aesthetic quality.

　　Precision Pouch Insertion: Equipped with a pouch-opening mechanism that fully expands the mask pouch. Folded masks are guided precisely into the pouch, ensuring proper placement without exposed edges or curling. The pouch opening remains free of residual essence, guaranteeing high-quality sealing in the subsequent process.

　　Material Shortage Protection & Counting: Features sensors for sheet levels and pouch supply; the machine automatically stops and triggers an alarm if materials run low. A built-in high-precision counting system tracks output in real-time and allows for batch quantity settings, facilitating efficient production management.

　　Essence Handling: For pre-impregnated masks (containing essence before folding), transport and folding components feature anti-slip and moisture-resistant treatments. A drip tray is included to collect any dripping liquid, keeping the workspace clean.

　　Multi-specification compatibility: By adjusting the spacing of pick-up suction cups and changing folding molds and bag-loading guides, the machine can rapidly switch between various mask sizes and types (such as standard sheet masks, eye masks, and neck masks), ensuring flexible and convenient production changes.

　　Ease of operation: Equipped with a PLC and a touchscreen HMI, the system allows for one-touch parameter settings (such as folding methods and speeds) and the storage of multiple recipe profiles; general operators can master the machine after minimal training.

　　Applications:

　　Widely applicable to the pre-bagging folding stage of sheet-based care products in the cosmetics industry (including non-woven, silk, and biocellulose masks, as well as eye and neck masks) and the medical dressing sector (such as cold compresses and medical hyaluronic acid dressings). With its efficient, precise, and flexible folding capabilities, the Guanshentai automatic mask folding machine helps manufacturers automate their folding processes, effectively reducing labor costs while boosting production capacity and product consistency.

　　Technical parameters:

　　Model Number: GST-SWYP009A

　　Packing speed: 35-50 bags/minute

　　Packaging size: standard: bag width 105-160; bag length 150-225

　　Electricity: 220V 50Hz

　　Working air pressure: 0.4-0.6Mpa

　　Machine size ：1500×900×1550mm

　　Net weight ：350kg

　　Customized Support: Yes
