Overview

　　The Guanshentai semi-automatic paste filling machine is specifically designed for the quantitative dispensing of high-viscosity, high-consistency, and particulate-laden materials. It utilizes a pneumatic piston pump and a check-valve metering system, achieving a stable filling accuracy of within ±0.5% and a filling range of 5g to 5000g per cycle. Operated via foot pedal or manual push-button, it offers flexibility and convenience, making it ideal for small-batch, multi-variety, and flexible production needs.

　　Key Advantages:

　　Powerful Conveying: Features a large-bore check valve and reinforced piston rod structure, delivering filling pressures up to 0.6 MPa. It easily handles high-resistance materials—such as pastes, sauces, and gels—without flow interruption or jamming.

　　Precise Metering: Combines mechanical hard stops with adjustable-stroke cylinders to ensure excellent repeatability; weights remain consistent from the first to the last unit in a batch, eliminating the need for frequent weighing and recalibration.

　　Drip-Free Operation: Equipped with a suck-back anti-drip nozzle that automatically retracts residual material after filling. This keeps bottle openings and work surfaces clean, saving material and reducing cleanup time.

　　Reliable Materials: All product-contact parts are made of SUS316L stainless steel with mirror-polished inner walls. The surface prevents material adhesion and facilitates easy cleaning, meeting GMP hygiene standards for food and pharmaceuticals.

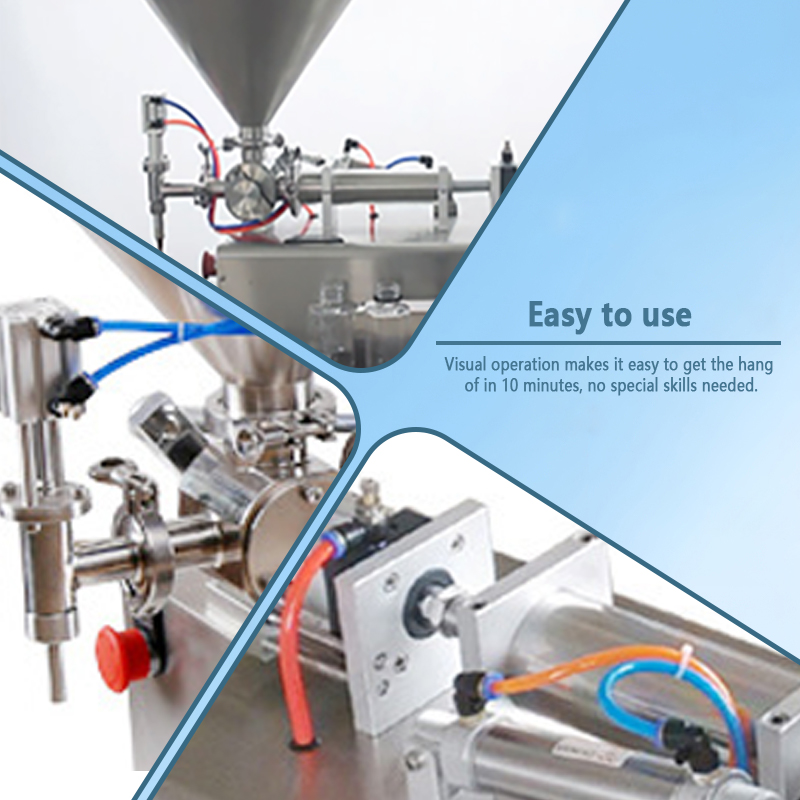

　　Ease of Operation: No complex setup is required; simply connect the air supply to begin. Filling volume and speed are quickly adjusted via handwheels and flow control valves, allowing general operators to start working after just 10 minutes of training.

　　Flexible Mobility: Built on a stainless steel trolley frame with swivel casters, the unit can be easily moved between workstations, saving valuable floor space in the workshop.

　　Applications:

　　Widely suitable for bottling, tube filling, and canning operations across various industries, including food (hot pot base, salad dressing, peanut butter, honey, jam), personal care (hand cream, facial cleanser, hair mask, toothpaste), pharmaceuticals (ointments, gels, medical adhesives), and chemicals (sealants, grease, AB adhesives). With its stable, durable, precise, and material-efficient performance, the Guanshentai semi-automatic paste filling machine has become a reliable partner for small and medium-sized enterprises and laboratories handling high-viscosity materials.

　　Technical parameters:

　　Model Number: GST-SWYP003A

　　Sizes: 1600*300*1000mm

　　Optional models: 10ml -5000ml ;

　　Power supply: 220/110V 50/60HZ.

　　Air pressure: 0.4-0.6MPa.

　　Filling speed: 5-20 bottles/minute (the machine power for the gas source, can meet the large and small enterprises to use);.

　　Filling precision: ≤±1%.

　　Customized Support: Yes
