Overview

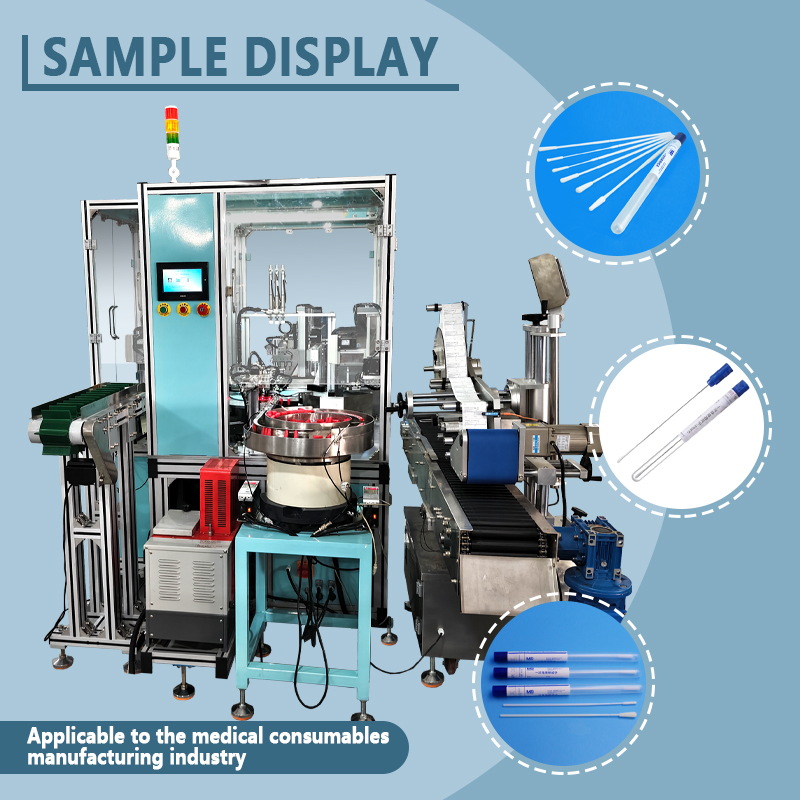

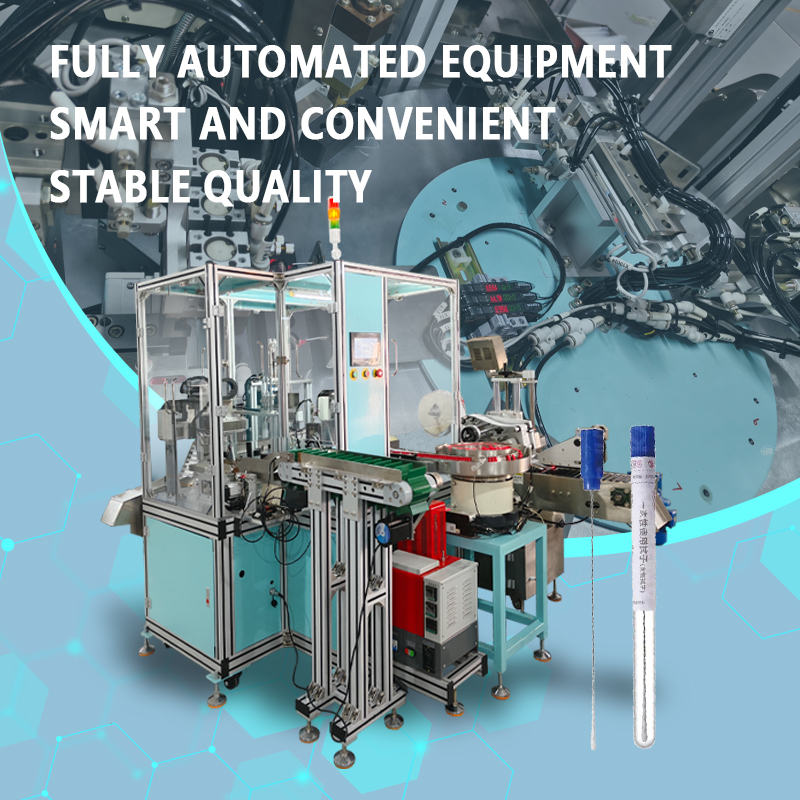

　　The Guanshentai automatic assembly machine for disposable sterile sampling swabs is specialized equipment designed for the automated assembly of various disposable sterile swabs, including flocked/fiber swabs, synthetic fiber swabs, and polyester swabs. The system integrates automatic feeding of swab shafts and tips (flocked or fiber), precision bonding and assembly, UV curing or hot-air drying, finished product inspection, and automatic counting and unloading. It delivers a complete, one-stop automated assembly process—transforming bulk shafts and tips into finished sampling swabs—at speeds of 800–2,000 units per hour, effectively replacing traditional manual assembly methods.

　　Key Advantages:

　　High-Precision Positioning and Assembly: Utilizing servo drives combined with high-precision positioning fixtures, the machine accurately mounts the swab tip onto the designated position of the shaft. Assembly precision reaches ±0.2mm, ensuring the concentricity and structural integrity of the tip-to-shaft connection and eliminating quality issues such as misalignment or detachment.

　　Secure and Reliable Bonding: Equipped with a precision quantitative dispensing/coating system using medical-grade adhesives (UV glue or epoxy resin), the machine allows for controlled and adjustable adhesive application. Paired with UV curing lamps or hot-air drying systems, it ensures high bond strength and tensile resistance, meeting the physical strength requirements for clinical sampling.

　　Non-Destructive Handling and Transport: Throughout the process, swab shafts and tips are handled via flexible gripping mechanisms and transported along smooth, anti-static tracks. Precise control over gripping force prevents scratches, indentations, or contamination from fine particles, ensuring product cleanliness and aesthetic integrity.

　　Multi-Specification Compatibility: By swapping positioning molds and tracks, the machine accommodates various types of swab shafts (solid/hollow, different materials) and tips (flocked, fiber, polyester, nylon, etc.). It supports rapid changeovers—completed in under 30 minutes—to meet diverse sampling needs and specifications, including oral, nasal, pharyngeal, and cervical swabs.

　　In-line Inspection and Rejection: Features integrated vision/laser inspection modules (utilizing optical comparison and mechanical gauging principles rather than AI self-learning) to automatically inspect swab head bonding position, bond integrity, and shaft appearance; defective units are automatically air-ejected and isolated to ensure a high finished-product pass rate.

　　Clean-Room Compatible Design: Constructed with a SUS304 stainless steel frame and transparent protective enclosures; the assembly zone meets Class 100,000 cleanroom standards, allowing for operation within clean workshops while complying with medical device GMP regulations, ISO 13485 quality management systems, and CE certification requirements.

　　User-Friendly Operation: Equipped with a PLC and touchscreen HMI for real-time monitoring of the entire production line and intuitive parameter settings; supports multi-recipe storage for rapid product changeovers, enabling general operators to achieve proficiency with minimal training.

　　Application Scenarios:

　　Ideal for the large-scale, standardized automated assembly of medical consumables (such as disposable sterile sampling swabs, viral sampling swabs, DNA sampling swabs, oral swabs, and cervical swabs) and life science consumables (including cell and microbial sampling swabs). Guanshentai’s automatic assembly machine delivers high-efficiency, precision, and clean automation, helping manufacturers overcome the productivity bottlenecks of manual assembly and achieve high-quality, mass-scale delivery of sampling swab products.

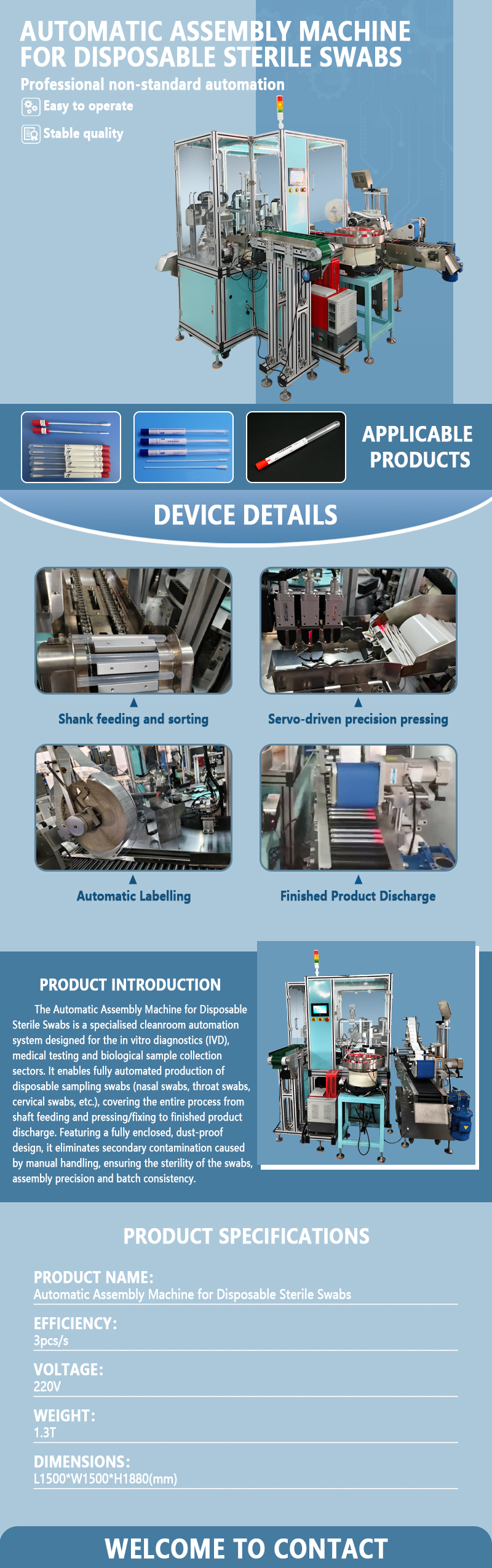

　　Equipment Details:

　　Model Number: GST-CYSZ01A

　　Sizes: L150cm*W150cm*H188cm

　　Weight: 1300kg

　　Power: 3KW

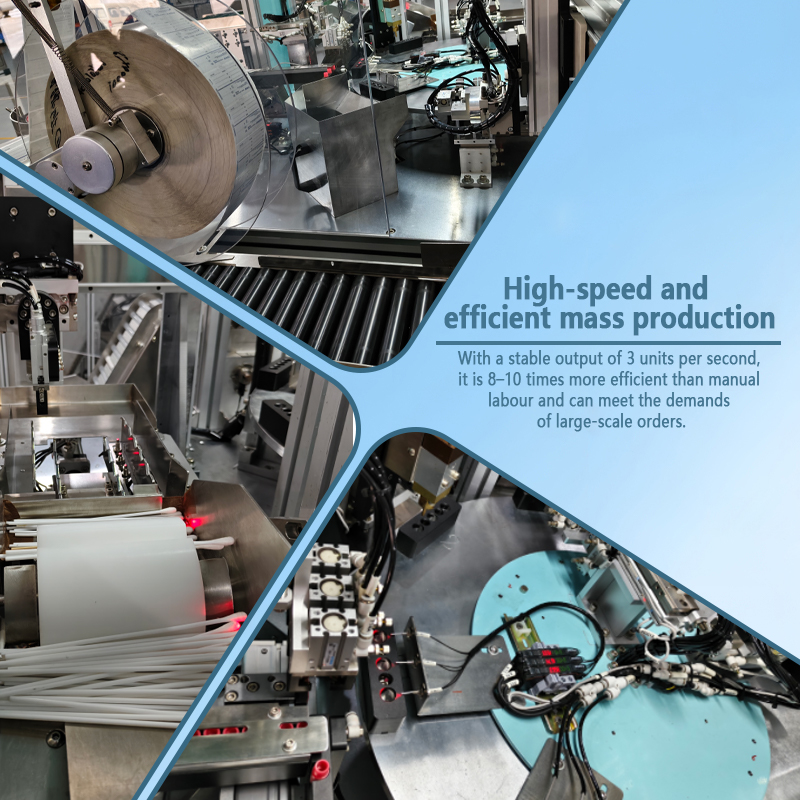

　　Production Capacity: 180 PCS/minute

　　Voltage: 220V/50Hz

　　Core Components: Motor, hot melt unit

　　Customized Support: Yes
