Overview

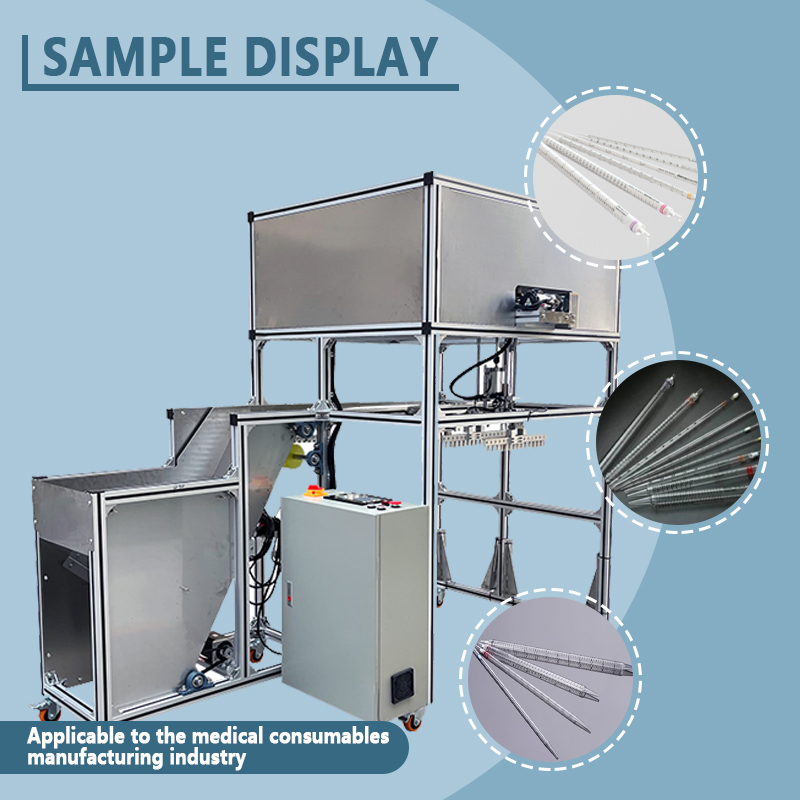

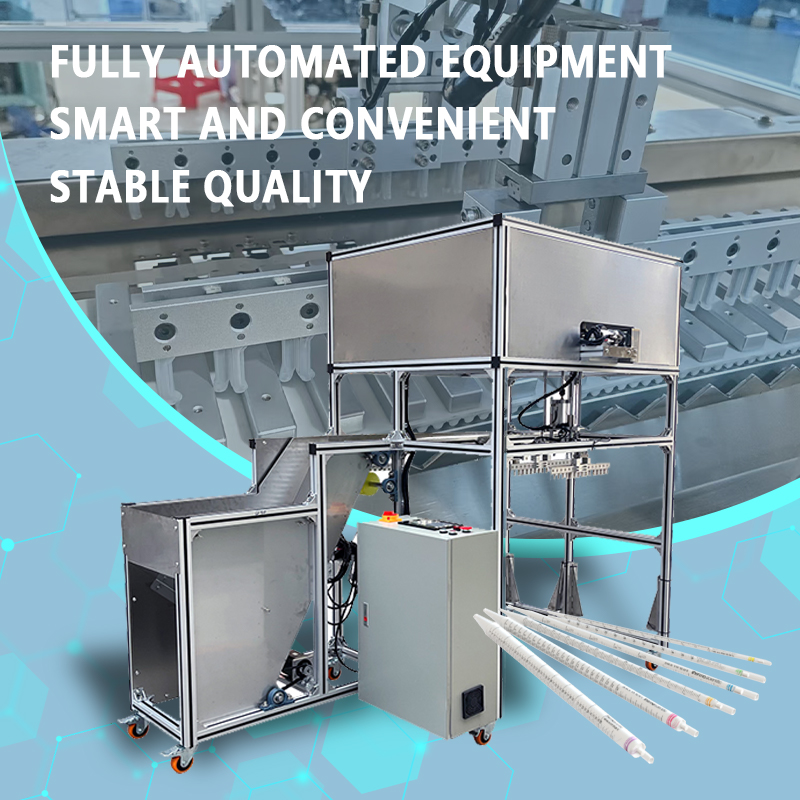

　　The Guanshentai Automatic Pipette Feeding Machine is specialized equipment designed for the automatic sorting and oriented feeding of slender tubular laboratory consumables, such as pipettes, Pasteur pipettes, and droppers. Utilizing a vibratory bowl sorting system and a belt/track-based orientation mechanism, the machine automatically organizes randomly piled empty tubes into a uniform orientation and continuously feeds them—at a set cadence—to downstream equipment such as packaging, screen printing, or filling machines. With a feeding speed of 60–120 units per minute, it effectively replaces manual, piece-by-piece placement.

　　Key Advantages:

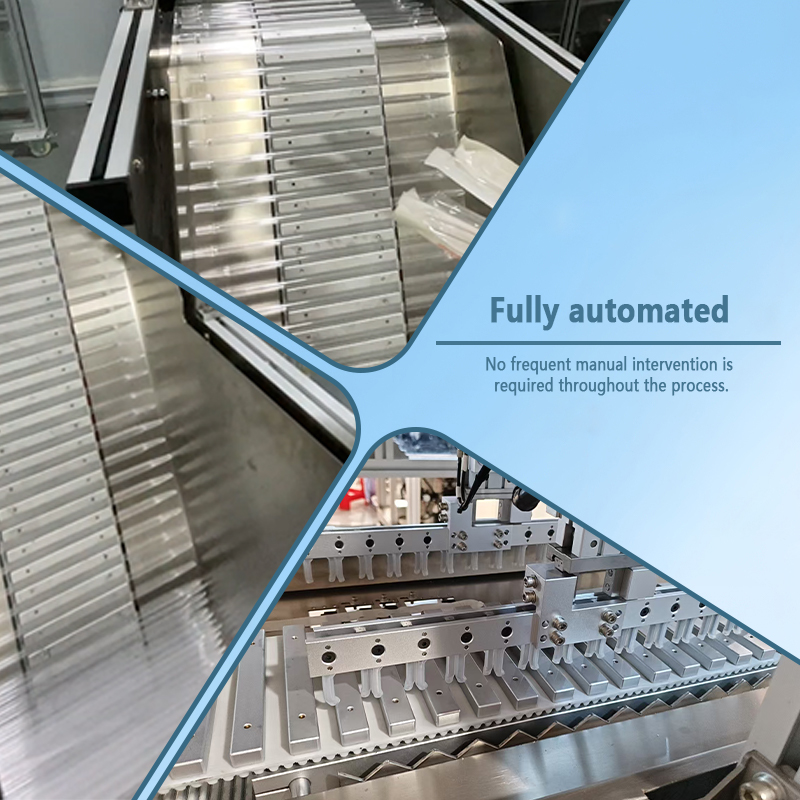

　　Efficient Automatic Sorting: Employs a customized vibratory bowl and orientation tracks. Precision sorting structures identify the tubes' orientation and correct their alignment, ensuring automatic sorting and uniform output. Bulk loading allows for continuous discharge without the need for manual placement.

　　Gentle, Scratch-Free Transport: Transport tracks and contact points feature polished, anti-static, non-metallic materials. Combined with buffering and separation mechanisms, this design prevents scratches, indentations, and static-induced contamination during sorting and transport, preserving the product's pristine finish.

　　Multi-Specification Compatibility: By swapping the vibratory bowl top plate and transport track components, the machine quickly adapts to various pipette sizes (0.5ml to 50ml) and other slender tubular consumables. It accommodates diameters of 4–30mm and lengths of 50–250mm, offering flexibility for diverse production needs.

　　Automatic Pause on Full Load: Equipped with dual protection functions: automatic pause when the output is full (preventing jams caused by pile-ups) and an audible/visual alarm when the hopper runs low (prompting refilling without requiring constant supervision).

　　Quantitative Counting Output: Can integrate fiber-optic counting sensors to output batches based on preset quantities (e.g., 100 units/batch), facilitating downstream packaging counts and eliminating the need for manual tallying.

　　Clean-room compatible design: The machine features an SUS304 stainless steel frame and transparent protective covers. The product handling area is enclosed and dust-proof, meeting Class 100,000 cleanroom standards; it is suitable for high-cleanliness production environments such as those for medical and biological laboratory consumables.

　　Ease of operation: Equipped with variable-frequency speed control, the output speed is infinitely adjustable to match the operational pace of downstream equipment. Once the machine is commissioned and set up, operators simply need to load the hopper and collect the finished products, eliminating the need for complex manual interventions.

　　Stable and durable structure: The vibratory bowl is precision-fabricated from high-quality stainless steel using argon arc welding, ensuring stable vibration frequency and low noise levels. The conveyor drive utilizes a high-quality gear motor with a low failure rate, making it suitable for continuous 24-hour operation.

　　Application scenarios:

　　Widely applicable to the automated handling and oriented feeding of slender tubular products, including laboratory consumables (pipettes, Pasteur pipettes, disposable droppers, capillary tubes), medical consumables (urine droppers, sampling tubes), and packaging components for daily chemicals or food (dropper bottle pipettes, oral liquid straws). With its efficient, stable, and damage-free feeding performance, the Guanshentai automatic pipette feeder helps manufacturers of laboratory and medical consumables automate their front-end feeding processes, effectively reducing the labor intensity associated with manual tube arrangement and enhancing the operational efficiency of the entire production line.

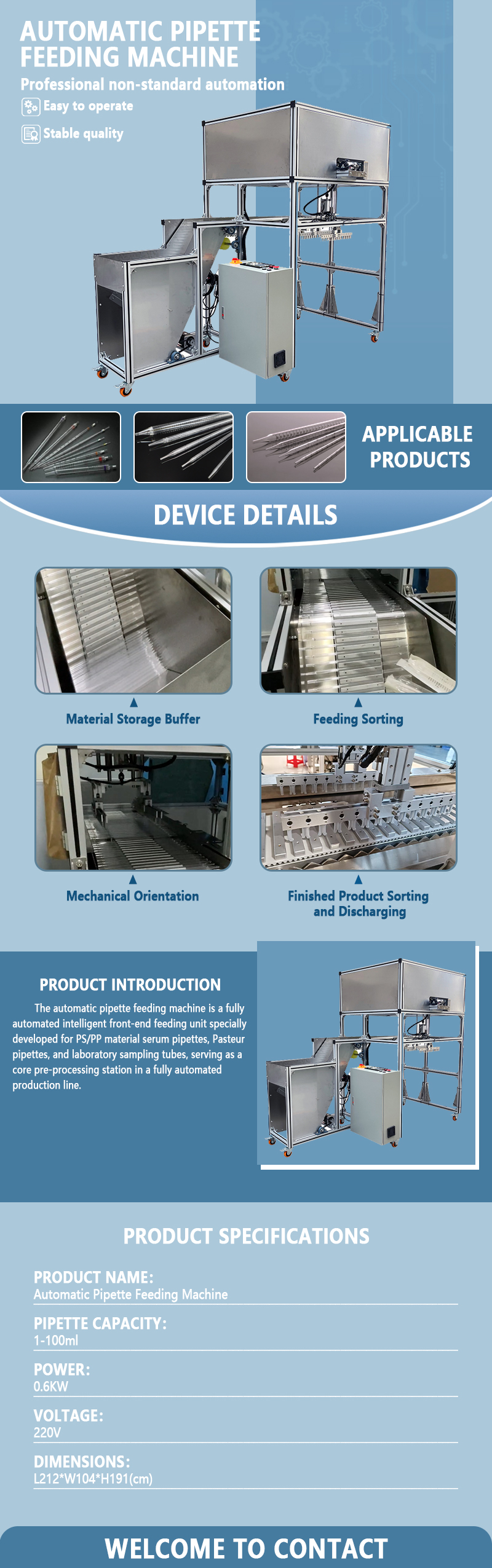

　　Technical parameters:

　　Equipment Model: GST-YYG108A

　　Pipette capacity: 1-100ml

　　Sizes: L1950*W1100*H2000(mm)

　　Production Capacities: 300pcs/min

　　Power (Output): 1.5kw

　　Customized Support: Yes
