Overview

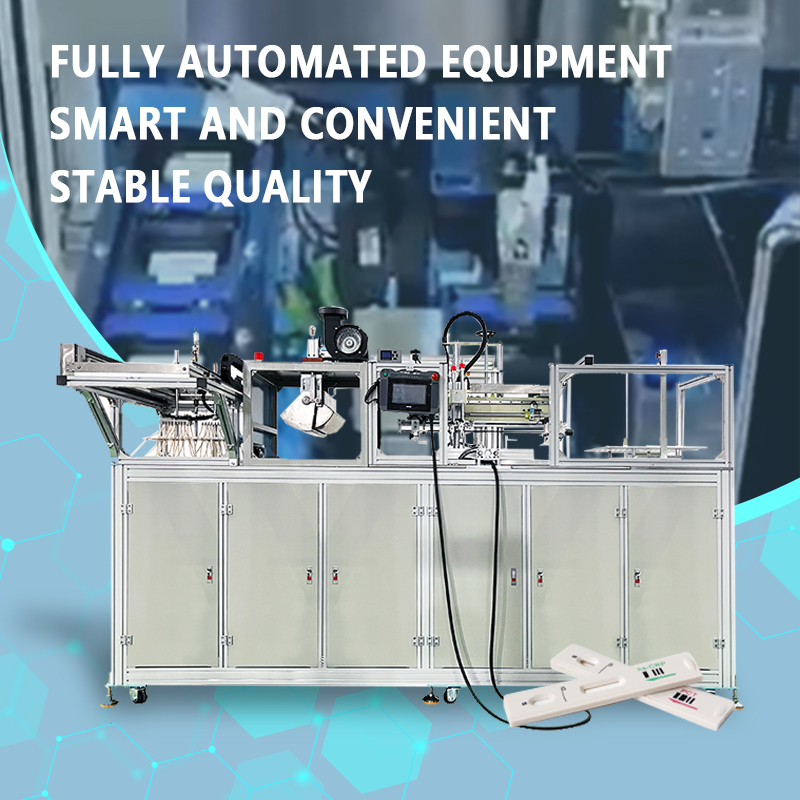

　　The Guanshentai Multi-Format Test Card Automatic Assembly Line is an integrated production system designed specifically for the fully automated assembly of in vitro diagnostic (IVD) rapid test strips (such as colloidal gold or fluorescent immunochromatography strips). The equipment combines automatic base-card feeding, precision strip cutting and lamination, top-cover snap-fitting and pressing, finished-product inspection, and automatic counting and unloading. Integrating multiple sequential processes, it achieves one-stop automated assembly—transforming bulk test-strip sheets and plastic housings into finished test cards—with a production speed of 2,000 to 5,000 units per hour.

　　Key Advantages:

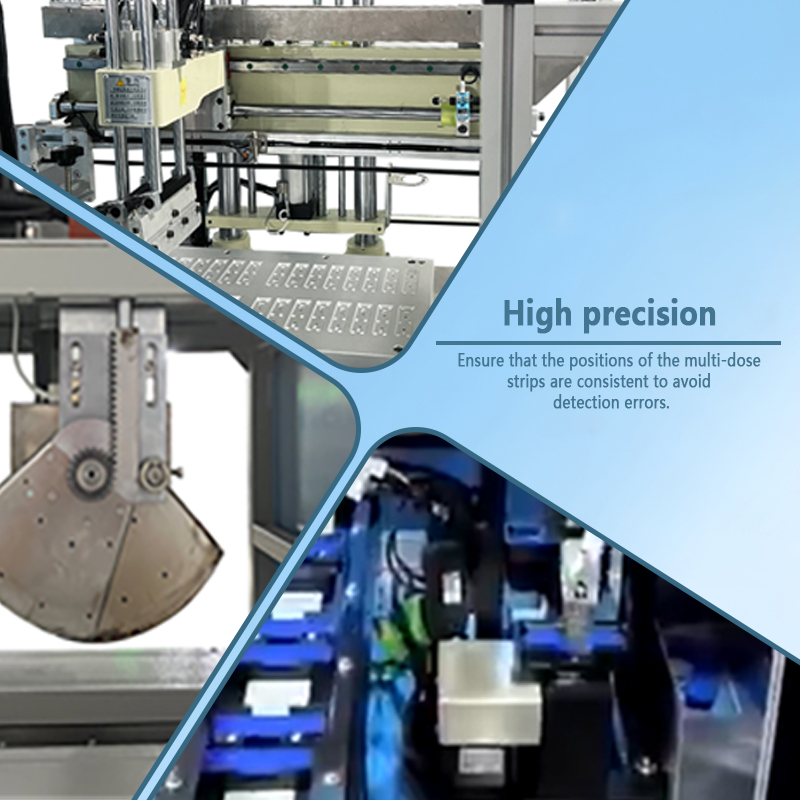

　　Precision Cutting and Lamination: Utilizes a high-precision rotary cutter or laser cutting system (based on mechanical positioning and optical edge detection, rather than AI self-learning) to cut large test-strip sheets to specified widths with ±0.1mm accuracy. Vacuum nozzles transfer the strips into designated base-card slots, ensuring correct orientation and precise placement.

　　Flexible Handling to Prevent Damage: Critical stations employ flexible gripping and cushioned positioning mechanisms. This prevents scratches or indentations on the strip layers and NC (nitrocellulose) membranes during handling and pressing, thereby preserving the integrity of the test and control line areas.

　　Precision Top-Cover Snap-Fitting: Equipped with visual positioning and servo-driven pressing systems (based on mechanical hard stops and photoelectric sensing, rather than AI self-learning), the machine precisely snaps the top cover onto the base card along a preset path. Adjustable and controllable pressing force ensures a tight fit and uniform gaps without damaging the internal test strip.

　　In-line Leak Detection and Rejection: Features an integrated airtightness testing module that verifies the seal quality of the finished card housing using airtightness or pressure-decay methods. It automatically distinguishes between acceptable and defective products and discharges them separately.

　　High Compatibility: Supports the flexible assembly of various test card specifications (e.g., strip-style, plate-style, insert-style) and housings from different brands. Rapid adaptation to different models is achieved by changing molds and tracks, meeting production needs ranging from high-mix/low-volume to single-product/high-volume scenarios.

　　Selectable Multi-Channel Parallel Processing: Configurable for 1–6 parallel assembly channels based on production capacity requirements; each channel operates independently yet synchronously, effectively boosting per-unit output efficiency.

　　Clean-Room Compatible Design: The entire line features an SUS304 stainless steel frame and transparent protective enclosures. The assembly zone meets Class 100,000 clean-room standards, allowing for operation within IVD clean workshops and ensuring compliance with medical device GMP regulations and ISO 13485 quality management system requirements.

　　User-Friendly Operation: Equipped with a PLC and touchscreen HMI, the system offers real-time monitoring of operational status and intuitive parameter settings; a multi-recipe storage function facilitates rapid product changeovers.

　　Application Scenarios:

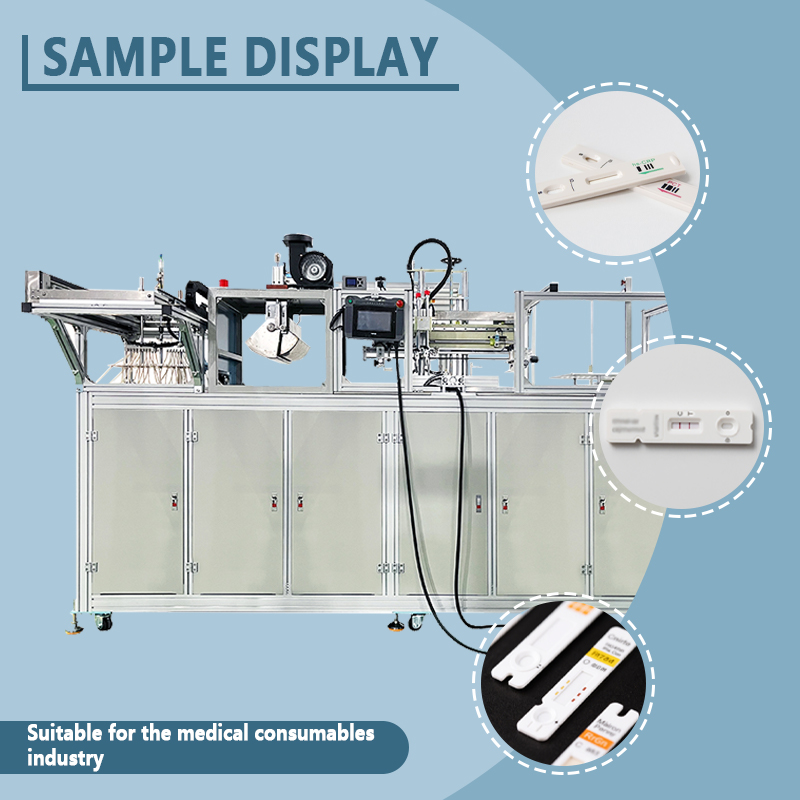

　　Ideal for large-scale, standardized assembly in the In Vitro Diagnostics (IVD) industry—including test cards for early pregnancy, infectious diseases, drugs of abuse, tumor markers, cardiac markers, and food safety—as well as animal disease testing (rapid test cards for pet and livestock diseases). With its high-efficiency, precision, and stable assembly performance, the Guanshentai automatic multi-strip test card assembly line helps IVD manufacturers overcome the efficiency bottlenecks of manual assembly and achieve high-quality, mass-scale delivery of test card products.

　　Technical parameters:

　　Model Number: GRK-TWD06

　　Sizes: L5.70*W2.0*H1.8 (m)

　　Production Capacities: 2400pcs/H

　　Power (Output): 6.5kw

　　Voltage:220V/380V50Hz

　　Weight:3000KG

　　Customized Support: Yes
