Overview

　　Machine Description:

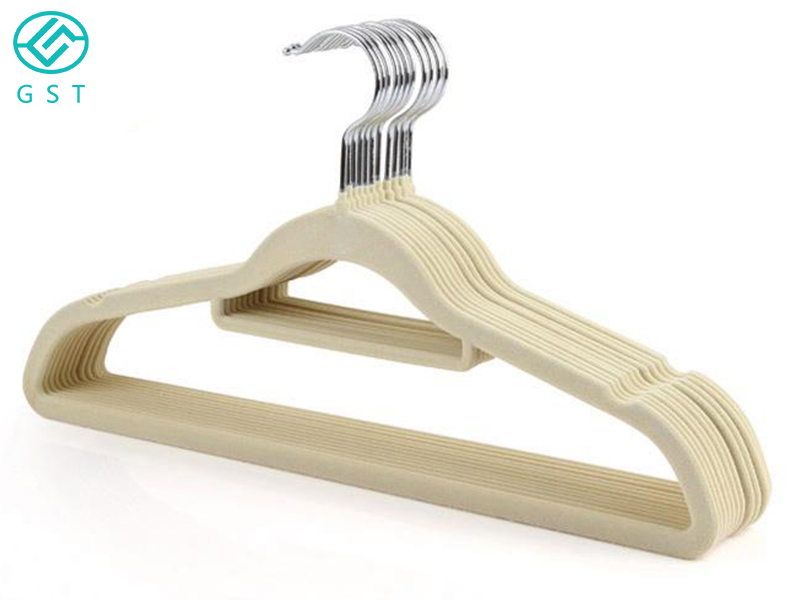

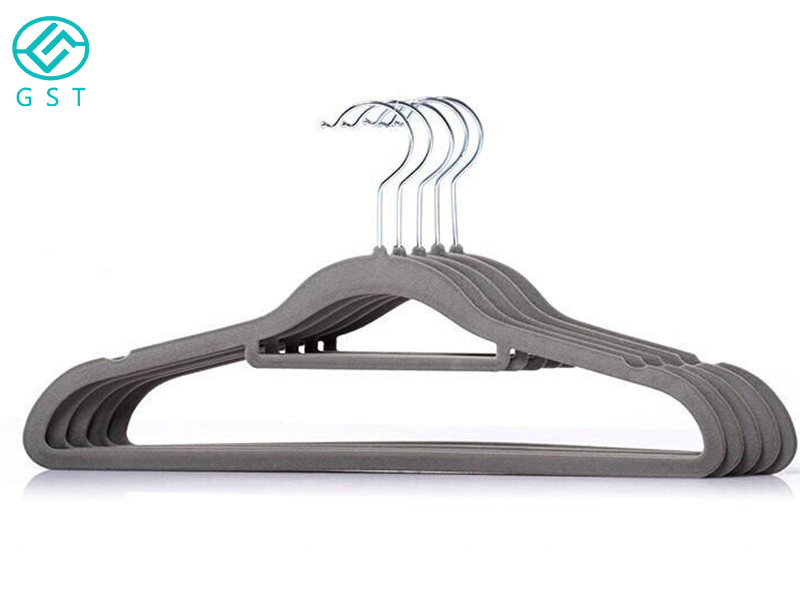

　　This machine is based on the plastic hanger flocking process link requirements and research and development, because this production link involves the current environmental protection, fire, safety and security and a series of issues, as well as the production of harsh environments, so that some of the workers are afraid of the work, the young people are more focused on the environment, health, hard work, etc., the production of this product to be with the automation must be quickly improved, and as little as possible to use the workers. We have carried out a series of drilling, development, debugging, etc. for this industry, and now we have completely developed this automated flocking line, the whole line is also composed of a single station single machine, and now this glue dumping machine is the front-end machine of the whole line!

　　The machine function is:

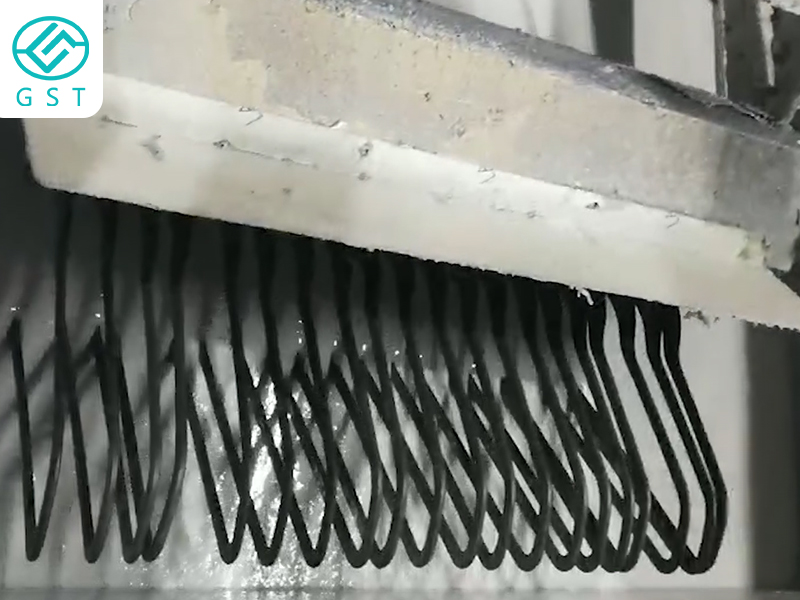

　　Artificial hangers hung on the sliding pole, the machine automatically take the hangers over for soaking glue, and get rid of excess glue, the hook surface will not have traces of glue; hangers soaking glue at the same height, dumping glue when the hangers surface glue uniformity, there will not be no soaking to the glue and the remaining glue did not shake clean, resulting in too much glue flow hanging phenomenon; dumping glue is also automatically into the flocking machine conveyor belt and then automatically into the flocking box, and each rack spaced in an orderly manner, and then automatically into the flocking box. And each hanger is spaced and arranged in an orderly manner, according to the required requirements for the smooth completion. Machine shape all square through aluminum welding frame, mechanical processing parts have been shown to deal with hidden safety hazard parts are used in the safety shield, generous and beautiful appearance, durable, corrosion-resistant, safe and reliable, the movement part of all imported modules, imported motors and control systems to improve efficiency, quality assurance, reduce costs, to the company has won the absolute advantage of peer competition.

　　Technical parameters:

　　1. Vertical structure, PLC control, simple operation interface, language Chinese.

　　2. Adopt guide rail guide, smooth running, long service life.

　　3. Imported servo motors, uniform speed, to ensure stable positioning.

　　4. The frame is welded and painted with square pass, and the appearance is sealed with a door, which makes the machine beautiful and generous.

　　5. Glue bucket using stainless steel welding, anticorrosion, automatic glue, automatic control.

　　6. The whole machine is equipped with safety guards, easy to use and safe.

　　7. Cylinders, solenoid valves using Taiwan Yadek, electrical appliances are used Omron.

　　8. Voltage: 220V AC Air pressure: 0.4-0.6MPA.

　　9.Working efficiency: 2000-2500pcs/ H, size: L2600*W1200*H2000.
