Overview

　　Machine Description:

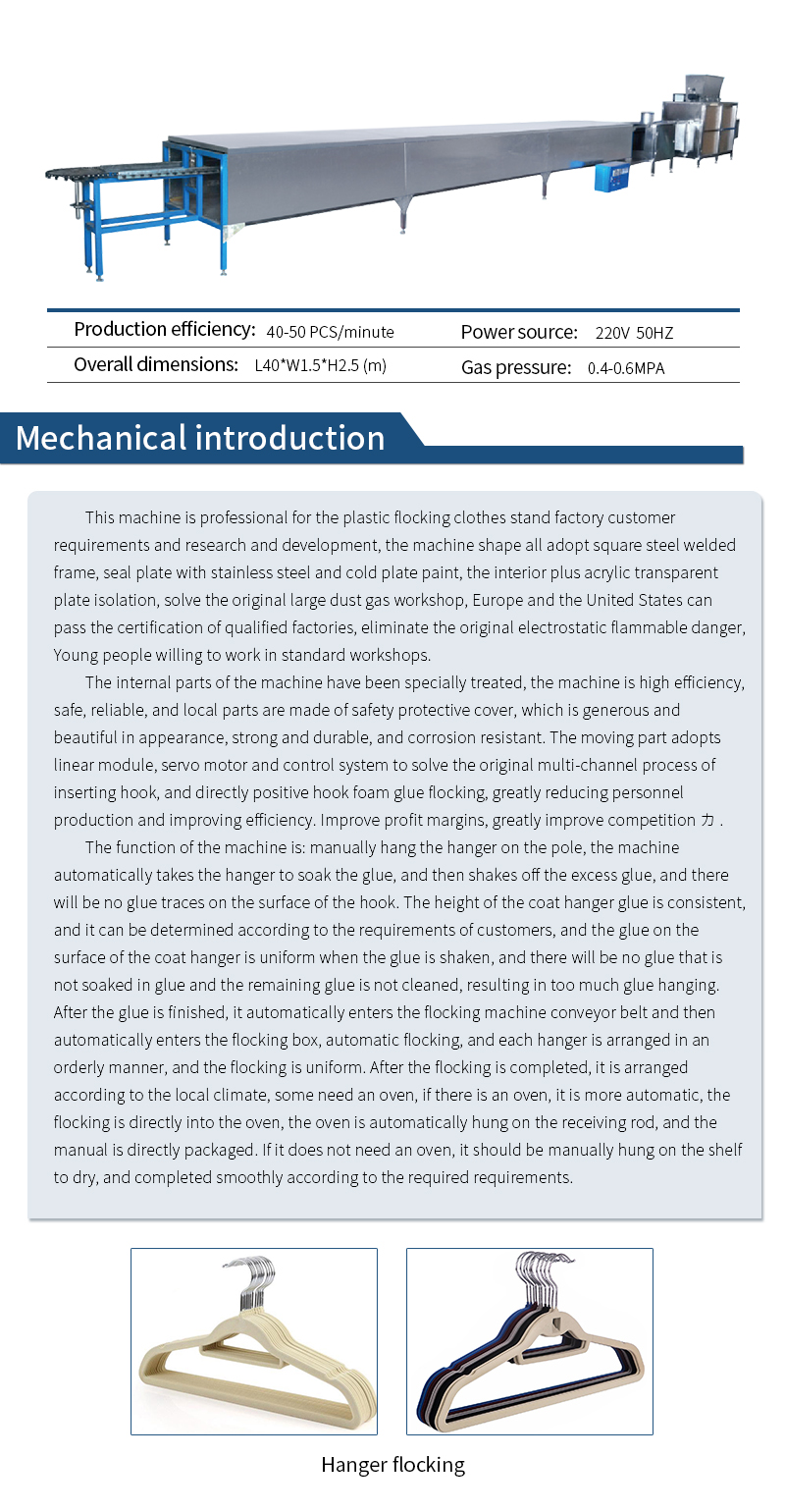

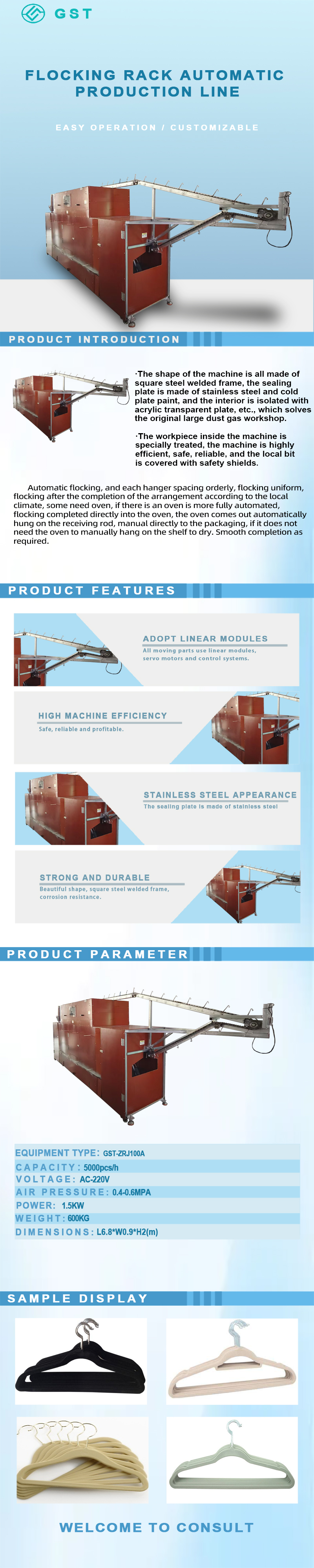

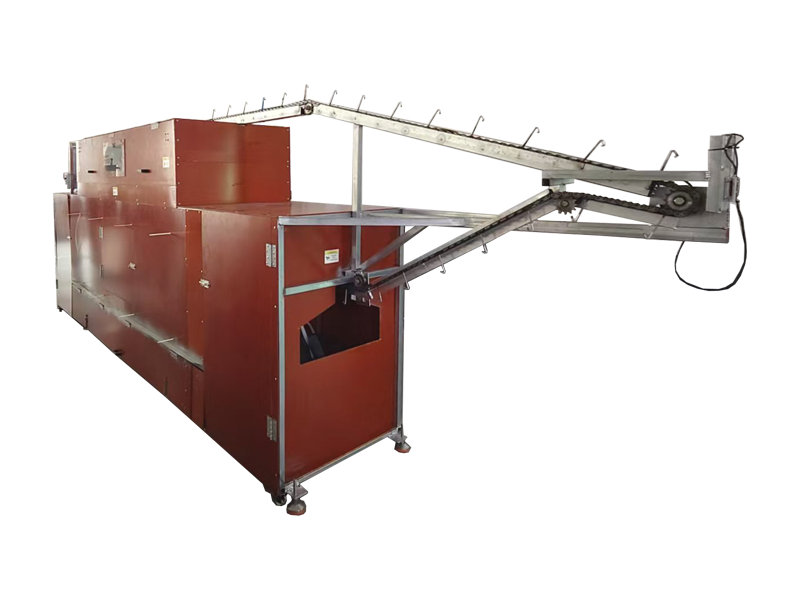

　　This machine is specialized for the plastic flocking hanger factory customer requirements and research and development, the machine shape of all the square through the steel welded frame, sealing plate using stainless steel and cold plate baking varnish with the internal and then add the acrylic transparent plate isolation, etc., to solve the original dusty gas workshop, Europe and the United States certified qualified factories can pass the European and American certifications to eliminate the original static flammable hazards, young people are willing to work on the standards of the workshop.

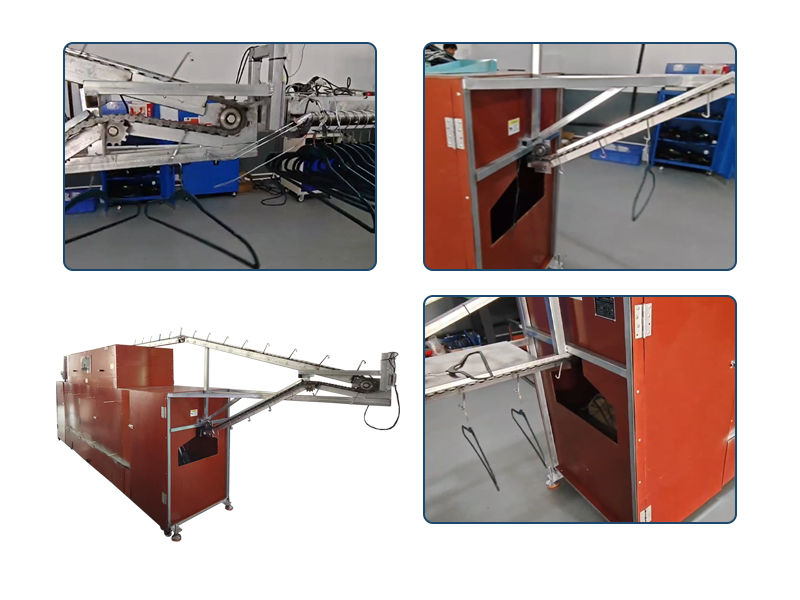

　　Machine internal workpieces have been specially treated, high machine efficiency, safety, reliability, local bit are used in the safety shield, generous and beautiful appearance, strong and durable, corrosion-resistant, the movement part of all the linear modules, servo motors and control systems to solve the primitive insertion of the hook attached to the multi-channel process, direct positive hook bubble glue flocking, greatly reducing the number of personnel to produce, improve efficiency, improve profit margins, and greatly improve competitiveness .

　　Machine function is:

　　Artificial hangers hung on the sliding pole, the machine automatically take the hangers over to soak the glue, and then get rid of excess glue, hook surface will not have traces of glue; hangers soak the glue height is consistent, and can be set according to the customer's requirements of the high and low, throw away the glue hangers when the surface of the glue uniformity, there will not be no soak to the glue and the remaining glue did not throw away the phenomenon of hanging glue too much flow; throw away the glue after the automatic entry into the Flocking machine conveyor belt and then automatically into the flocking box, automatic flocking, and each hanger interval arranged in an orderly manner, flocking uniformity, flocking is completed according to the local climate arrangements, some need an oven, if there is an oven on the more fully automated, flocking is completed directly into the oven, the oven out of the automatic hanging to the receipt of material on the rod, the manual directly hold to the packaging, if you don't need an oven will be manually hung on the shelves to dry according to the required requirements successfully completed. The required requirements are successfully completed.

　　Technical parameters:

　　Machine size: 40 meters long, 1.5 meters wide, 2.5 meters high

　　Efficiency: 40-50PCS / minute

　　Control: microcomputer control system

　　Electricity: AC220V 50HZ

　　Gas pressure: 0.4-0.6MPA
