Overview

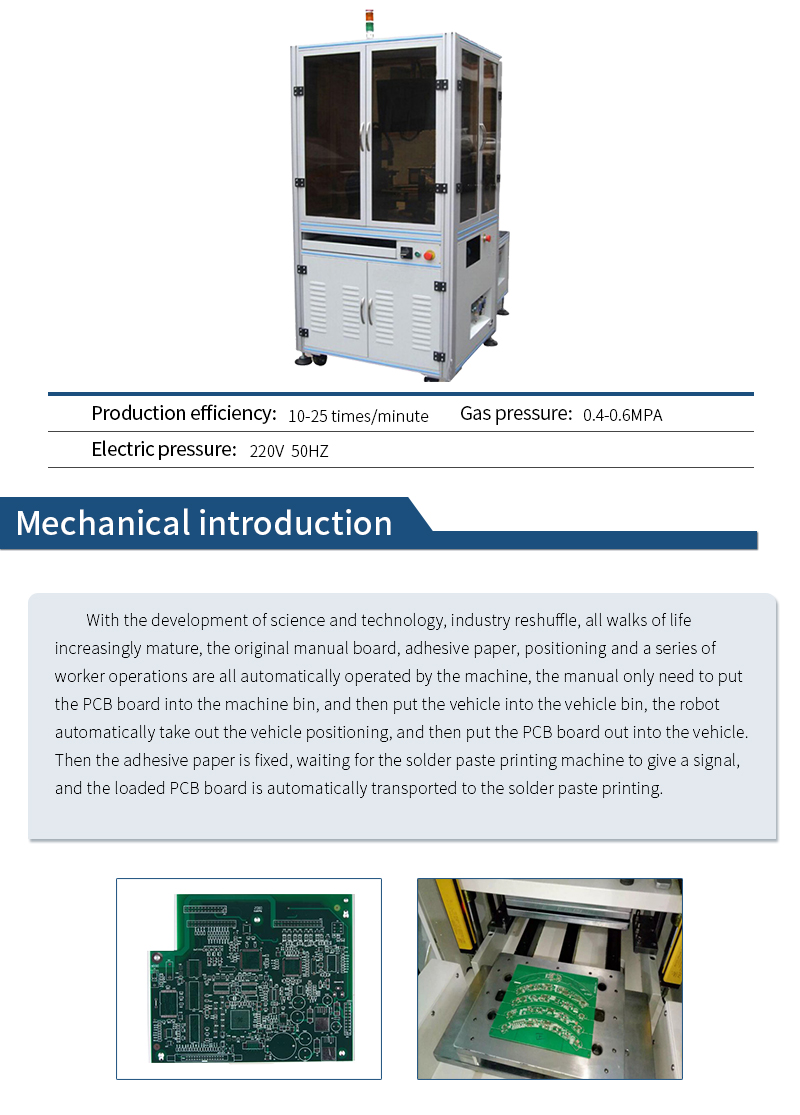

　　Machine Description:

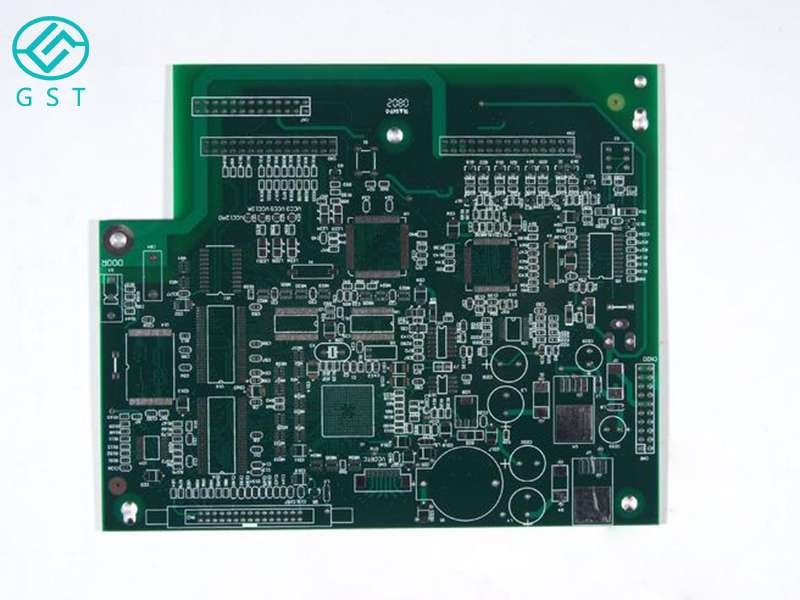

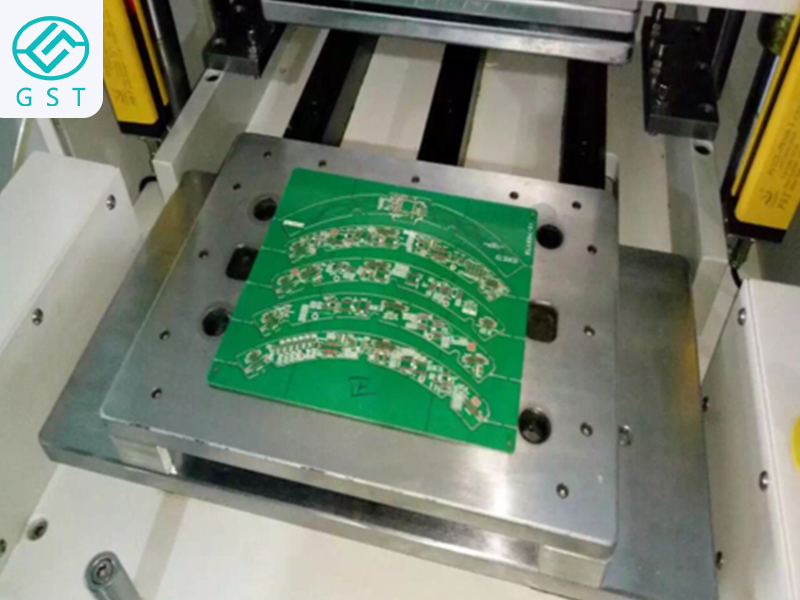

　　With the development of science and technology, the reshuffle of industry, and the increasing maturity of various industries, the original manual board placement, adhesive tape, positioning and other series of worker operations are all automatically operated by machines. Manual workers only need to put the PCB board into the machine's material bin, and then put the carrier into the carrier bin. The robot automatically takes out the carrier and positions it, then takes out the PCB board and puts it into the carrier, and then fixes it with adhesive tape, waiting for the solder paste printer to give a signal, and the installed PCB board is automatically transported to enter the solder paste printing.

　　Technical parameters:

　　1. Power supply: 220VAC, 50Hz/60Hz, 20KW;

　　2. Air pressure: 0.4-0.6MPA;

　　3. Dimensions: 1500*1200*1500;

　　4. Work efficiency: 15-20 times/min;

　　5. Applicable industries: SMT electronic products industry.
