Overview

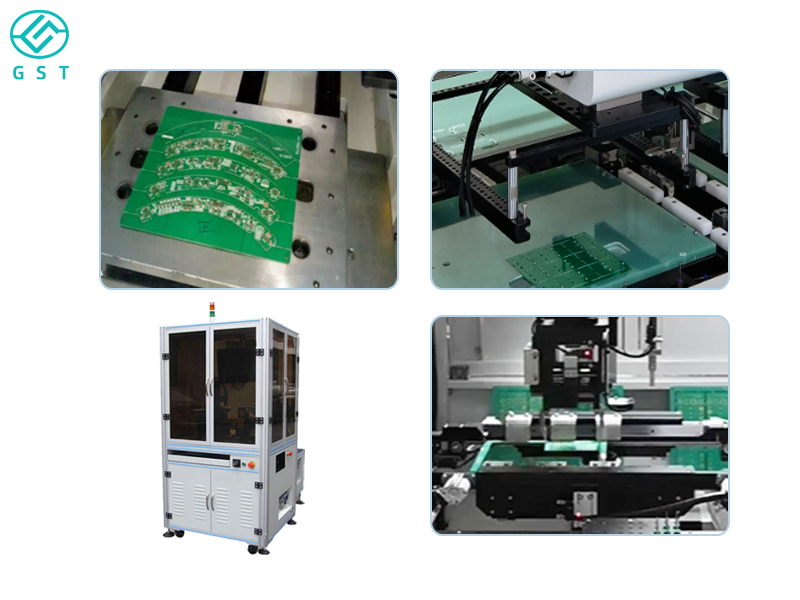

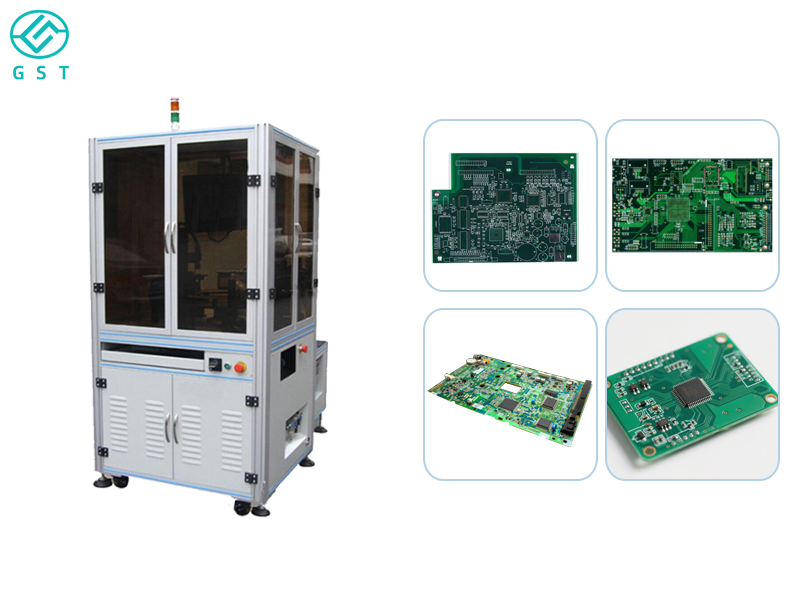

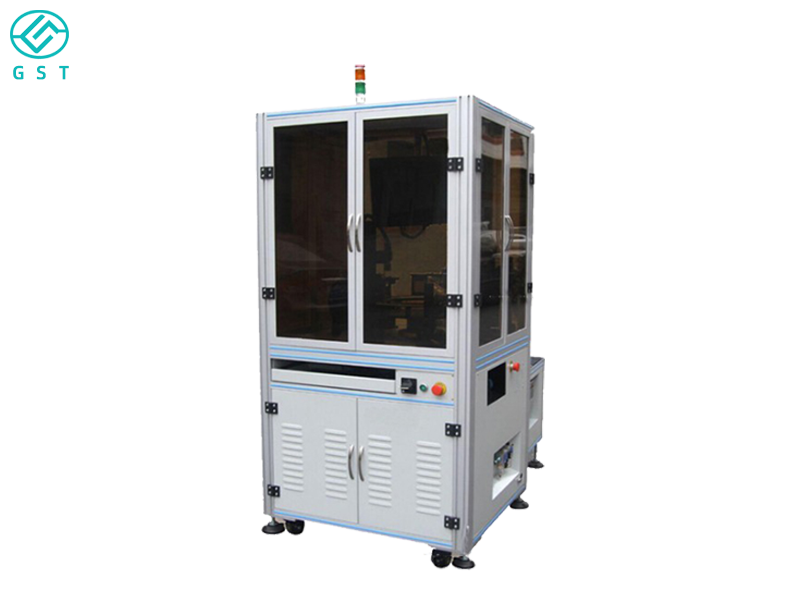

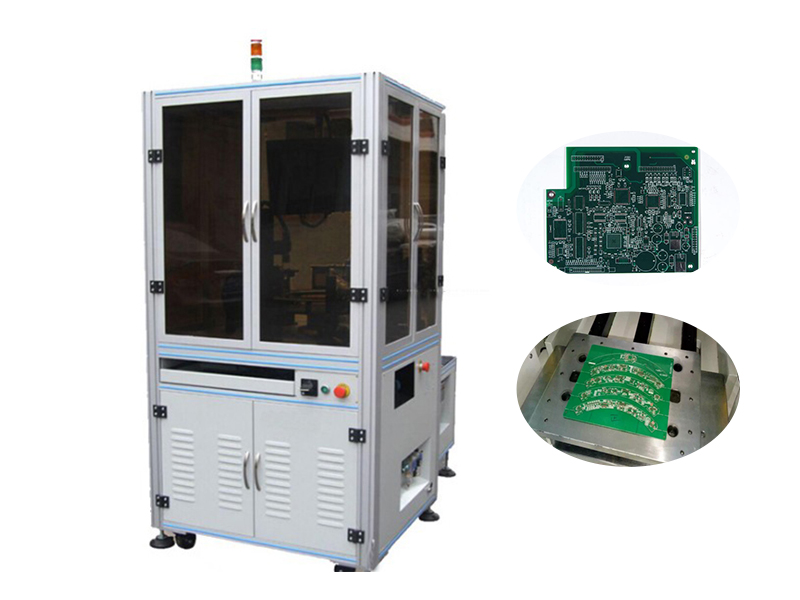

　　The Automatic PCB Placer is a highly efficient loading device for electronic manufacturing lines, including SMT, PCB, and FPC. Utilizing an advanced servo drive system and intelligent control program, it precisely positions and steadily places PCBs, eliminating issues such as misalignment, scratches, and electrostatic damage associated with manual loading, significantly improving process stability and product yield.

　　The Automatic PCB Placer supports rapid switching between PCBs of various specifications, features a user-friendly interface, and allows for simple parameter settings. It seamlessly integrates with upstream and downstream equipment, including SMT placement machines, printers, and depanelers, to create an intelligent, continuous production process. The compact design and minimal footprint of the machine, along with aluminum alloy extrusions and an anti-static conveyor design, ensure both durability and safety.

　　Optional automatic detection, alarm, and anti-stuck board systems enable intelligent identification and handling of abnormal PCBs, ensuring continuous and stable production line operation.

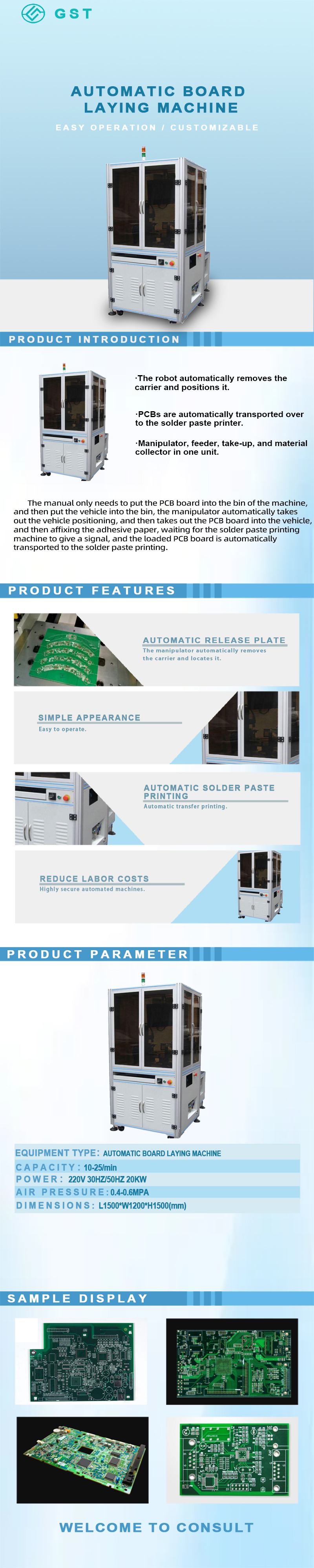

　　Technical parameters:

　　Model Number: GST-WJ001A

　　Power supply: 220VAC, 50Hz/60Hz, 20KW;

　　Air pressure: 0.4-0.6MPA;

　　Dimensions: 1500*1200*1500;

　　Work efficiency: 15-20 times/min;

　　Applicable industries: SMT electronic products industry.

　　Customized Support: Yes
