Overview

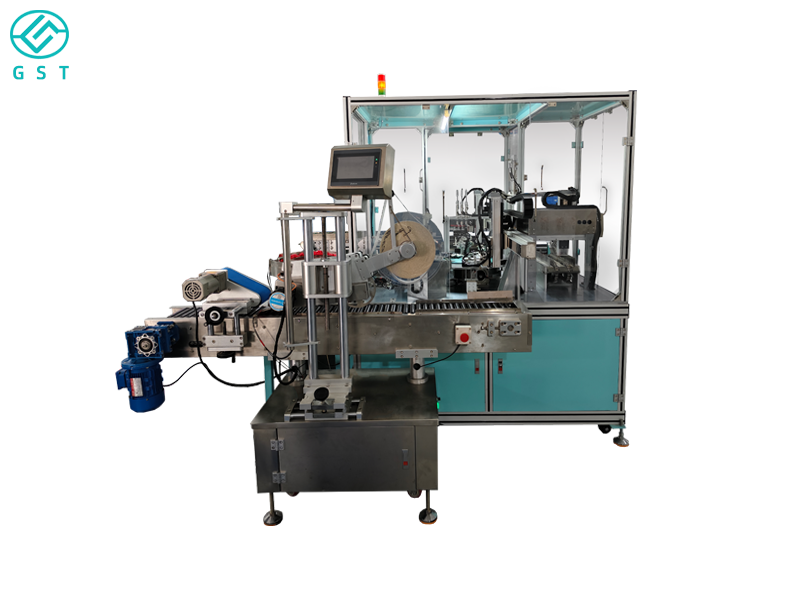

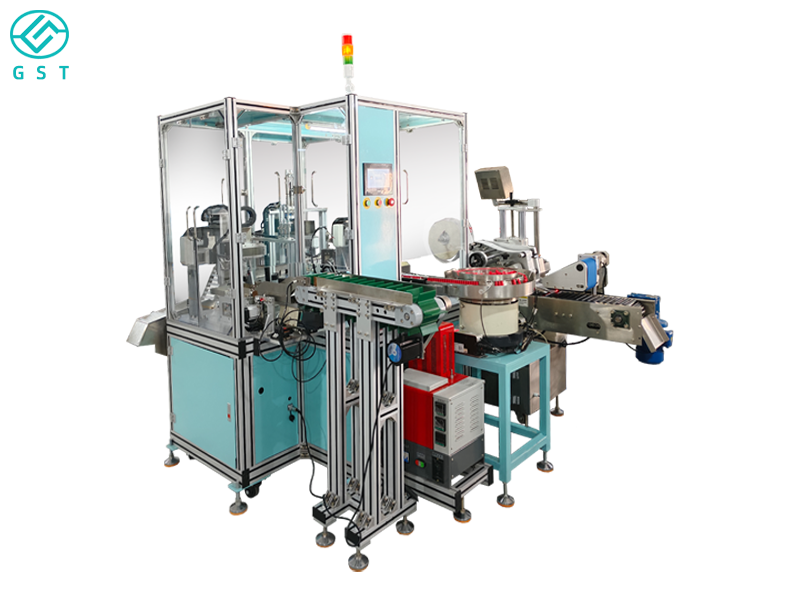

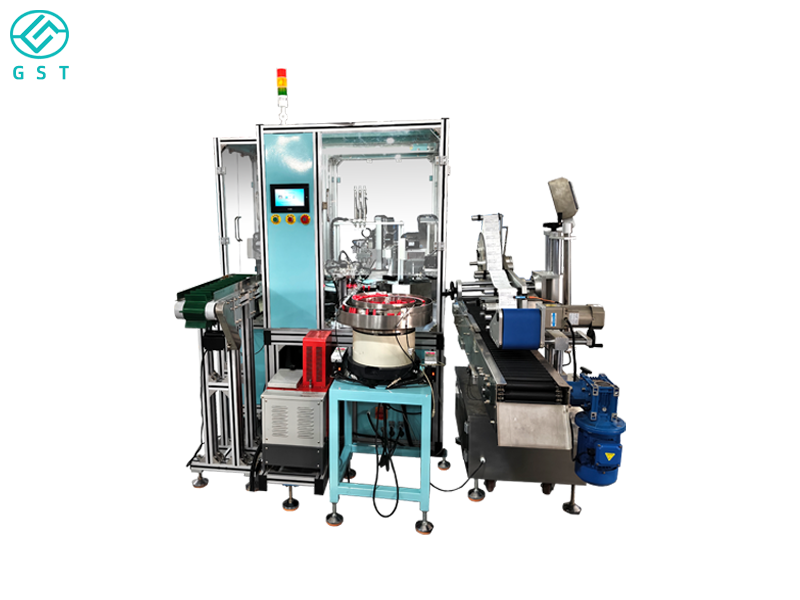

　　The Disposable Sterile Swab Automatic Assembly Machine is a high-end automated assembly device designed specifically for the medical testing consumables industry. It is primarily used for the automated assembly and packaging of disposable swabs. It automatically loads materials, matches components, precisely assembles the swab shaft and tip, locks the cap, performs visual inspection, and delivers finished products. It is suitable for production scenarios such as public health, in vitro diagnostics (IVD), and testing.

　　Fully automated: The machine comprises six steps: feeding, positioning, assembly, locking, inspection, and discharge. One-touch operation replaces traditional manual operations, significantly improving production efficiency and assembly consistency.

　　Clean and medical-compliant: The machine utilizes a dust-proof cover and closed-loop cabinet design, with key material-contact components constructed of medical-grade stainless steel or antimicrobial materials, meeting the requirements of sterile production and cleanrooms.

　　Intelligent control system: Equipped with a PLC and touchscreen interface, it supports parameter settings (such as speed, assembly cycle, and testing accuracy), abnormality alarms, automatic shutdown, and production statistics, facilitating quality management and production traceability.

　　Modular Quick Changeover: The equipment supports rapid mold switching between different sampling swab specifications (e.g., stem length, cotton tip material, capping style, etc.), making it suitable for multi-specification, small-batch, and high-variety production.

　　Inspection and Rejection Ensure Quality: Built-in visual or photoelectric inspection systems identify defects such as missing parts, unlocked caps, and foreign objects, automatically rejecting any detected defects to ensure a high yield and consistent quality of the finished product.

　　Equipment Details:

　　Model Number: GST-CYSZ01A

　　Sizes: L150cm*W150cm*H188cm

　　Weight: 1300kg

　　Power: 3KW

　　Production Capacity: 180 PCS/minute

　　Voltage: 220V/50Hz

　　Core Components: Motor, hot melt unit

　　Customized Support: Yes
