Overview

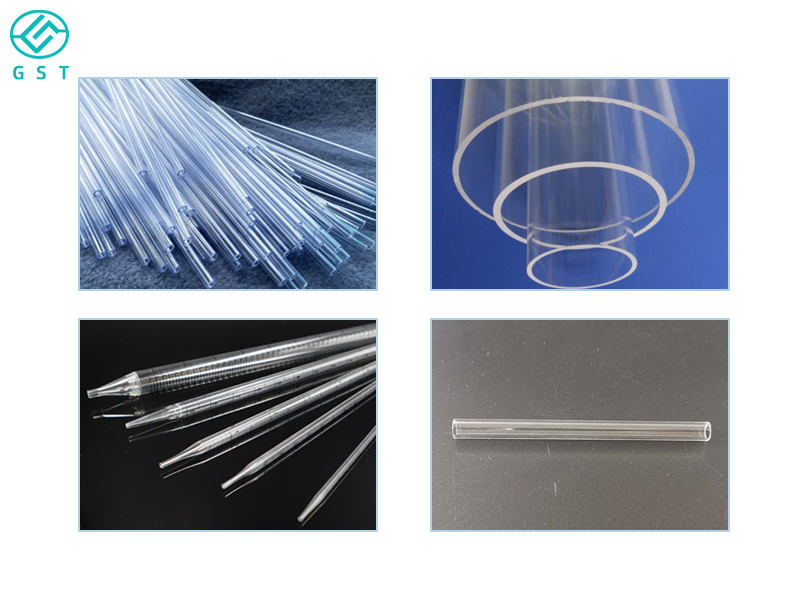

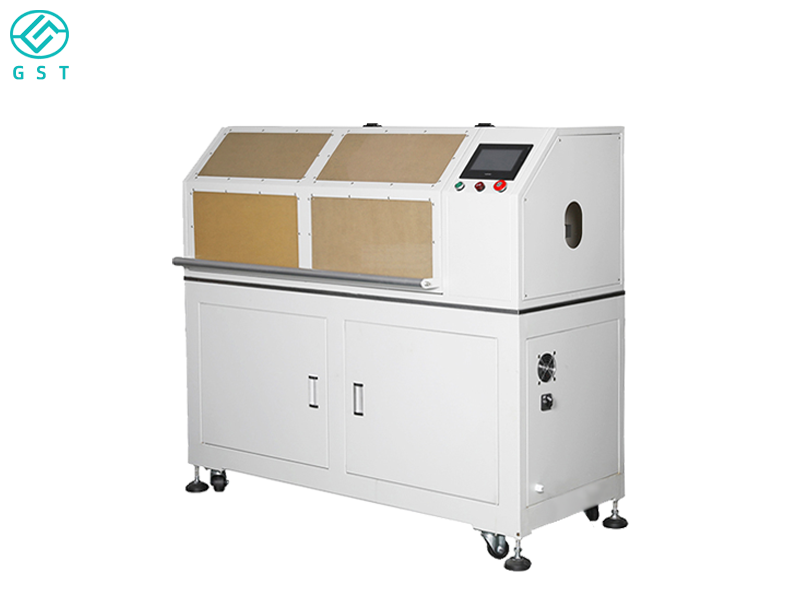

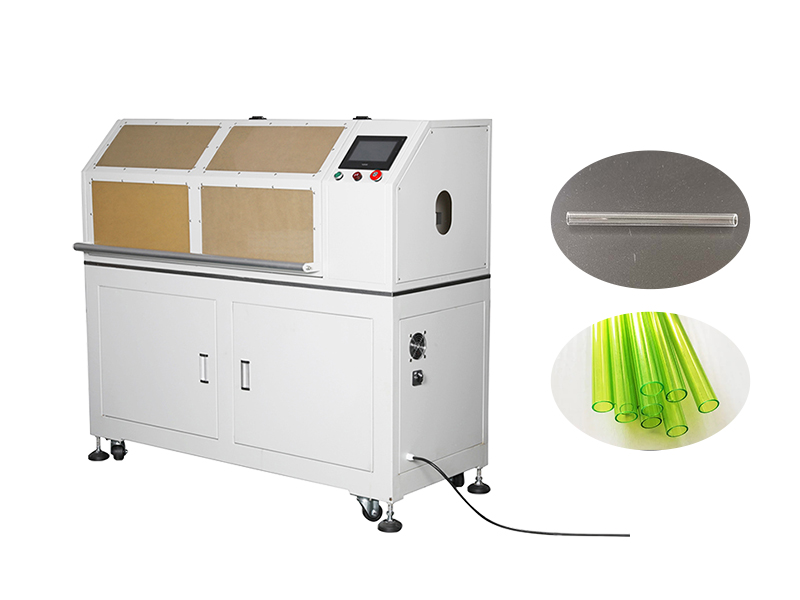

　　The online, chip-free plastic pipe cutting machine is a high-end automated equipment designed specifically for the online production of plastic pipes (such as PE, PP, and PVC pipes). It integrates feeding, online cutting, and discharging, enabling a continuous, unmanned production process from raw material input to finished pipes. It is particularly suitable for the manufacturing of laboratory consumables, medical plastic tubing, sample tubes, and cryogenic tubes.

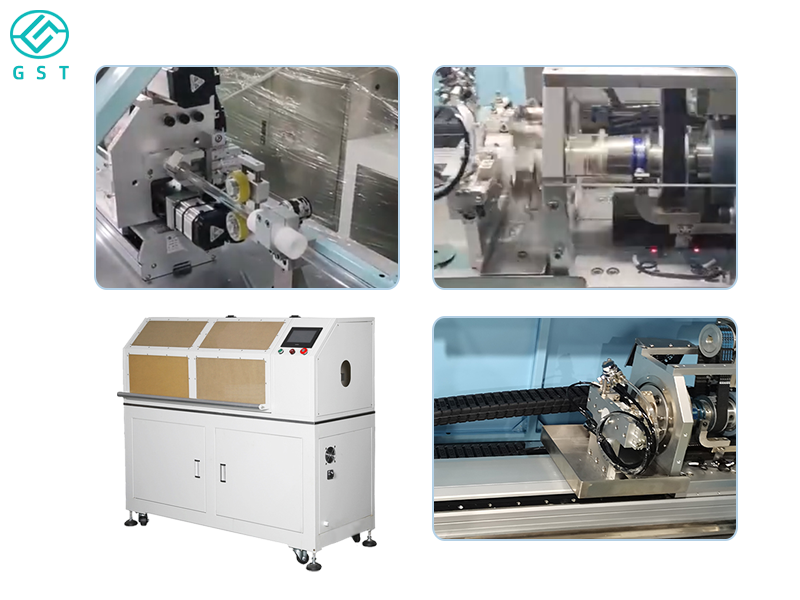

　　Core Functions and Structural Highlights:

　　Online Feeding & Precision Cutting: Equipped with a high-speed servo feeding system, the machine continuously feeds and cuts the pipe to length after it enters the machine, ensuring precise cuts with controlled tolerances.

　　Chip-free Processing: Integrated air purge or vacuum removal removes burrs and debris during the cutting process, ensuring a smooth, burr-free cut surface and eliminating the need for manual cleaning.

　　Modular Switching & Strong Adaptability: The modular structure of the equipment allows for quick replacement of the cutter, feed track, and pipe diameter fixture, supporting rapid switching between multiple pipe specifications (different diameters and wall thicknesses), meeting the needs of both small-batch and multi-specification production.

　　Intelligent Control System: Utilizing PLC control and a touchscreen interface, parameters such as cutting length, cycle time, feed speed, and chip removal intensity can be preset. The system also features abnormality alarms, automatic shutdown protection, and production statistics.

　　Clean Design & High Reliability: The equipment's contact areas are constructed of stainless steel and feature an anti-static design. The chip blowing and suction systems operate in a closed manner, meeting pre-packaging pipe cleanliness requirements and making it suitable for medical and laboratory consumables production environments.

　　High Cycle Time & Reduced Labor: Traditional manual cutting and chip removal methods are inefficient and labor-intensive. This equipment operates continuously, significantly improving cutting efficiency and reducing manual errors and rework.

　　Technical Parameters:

　　Equipment Model: GST-YYG100A

　　Sizes: 2600*600*1700mm　　

       Pipette capacity: 1-100ml

　　Cutting efficiency: 1 meter tube, can reach 15 meters / min

　　Cutting precision: tolerance ± 0.1mm

　　Power (Output): 1.5KW

　　Customized Support: Yes
