Overview

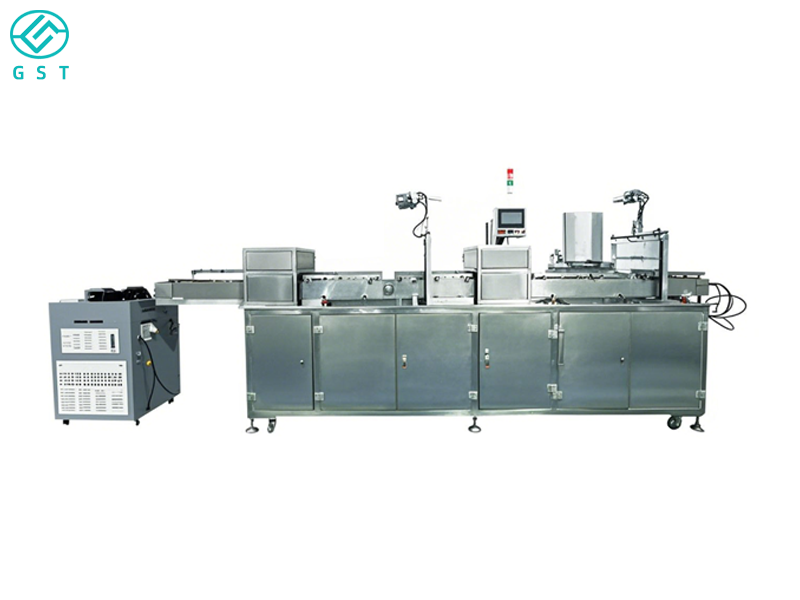

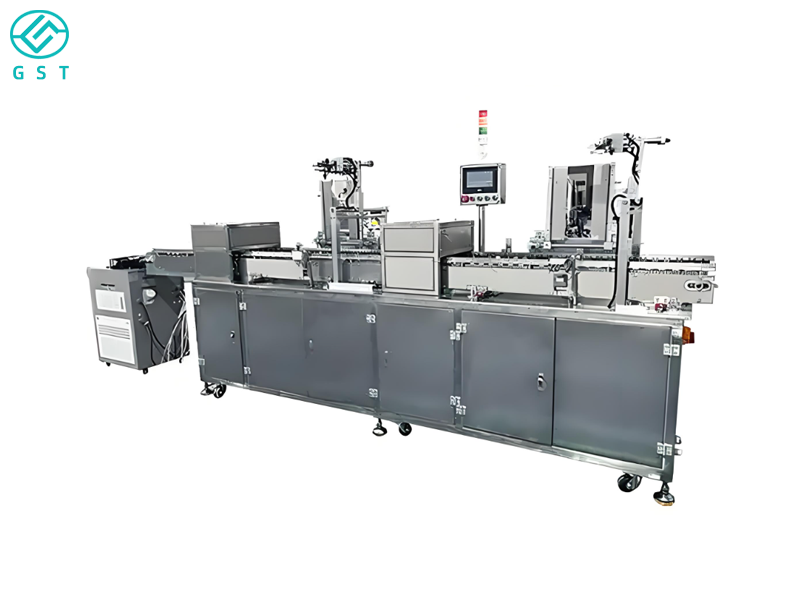

　　The automatic two-color screen printer for pipettes is a highly efficient, automated printing machine designed specifically for the laboratory consumables manufacturing industry. It is primarily used for two-color screen printing on curved surfaces, such as pipettes, for disposable laboratory equipment.

　　This machine integrates automatic loading, precise positioning, two-color printing, UV/cold light curing, and discharge rejection, making it suitable for high-speed, multi-format production scenarios and helping companies achieve automated printing process upgrades.

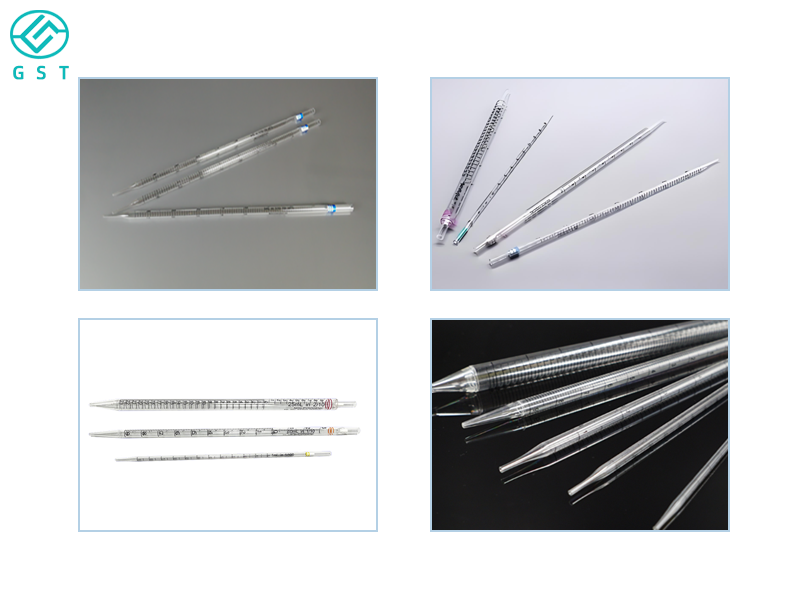

　　Simultaneous Two-Color Printing: Equipped with two sets of screen printing heads, the machine can simultaneously print two-color patterns or scales on pipettes in a single cycle, significantly improving production efficiency and visual quality.

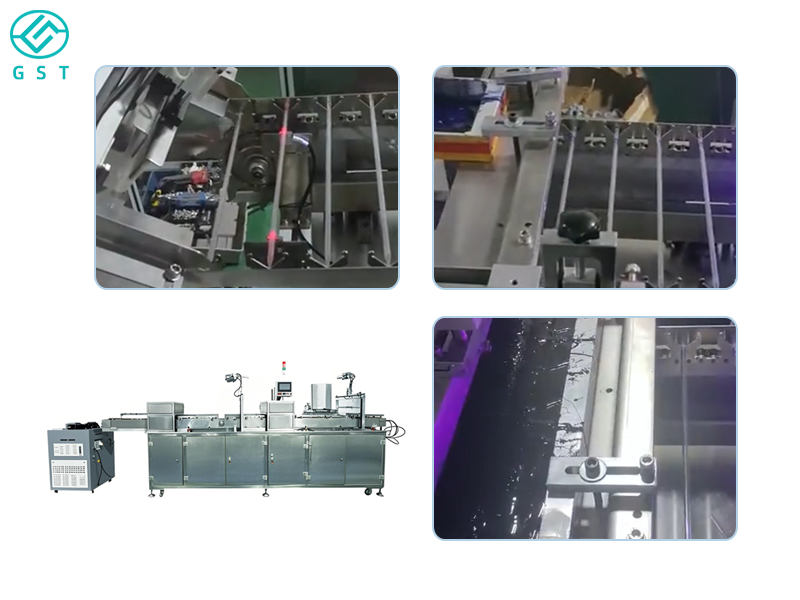

　　Precise Positioning for Curved Surfaces: Utilizing a servo drive + vision/photoelectric positioning system, it adapts to various curved pipette surfaces, including round, elliptical, and conical shapes, ensuring precise, offset-free printing and consistent quality.

　　Automated Process: From pipette loading and sorting, to entering the printing station, two-color printing, curing, and discharge, the entire process is fully automated, reducing manual intervention and improving consistency and production cycle times.

　　Modular Design + Quick Changeover: The machine features a stainless steel frame and modular construction, allowing for quick replacement of screen printing molds, fixtures, and parameters, supporting the rapid switching of pipettes of varying sizes and enhancing production flexibility.

　　Cleanliness and Chemical Resistance: Pipette-contacting components are made of food/medical-grade materials. Printing utilizes chemical-resistant inks that are UV or cold-light cured, ensuring scrub- and reagent-resistant printing, meeting the requirements of the laboratory consumables industry.

　　Technical Parameters:

　　Equipment Model: GST-YYG105A

　　Pipette capacity: 1-100ml

　　Sizes: L340*W112*H175 CM

　　Production Capacities: 3600pcs/hour

　　Power (Output): 220-240VAC, 50/60Hz

　　Customized Support: Yes
