Overview

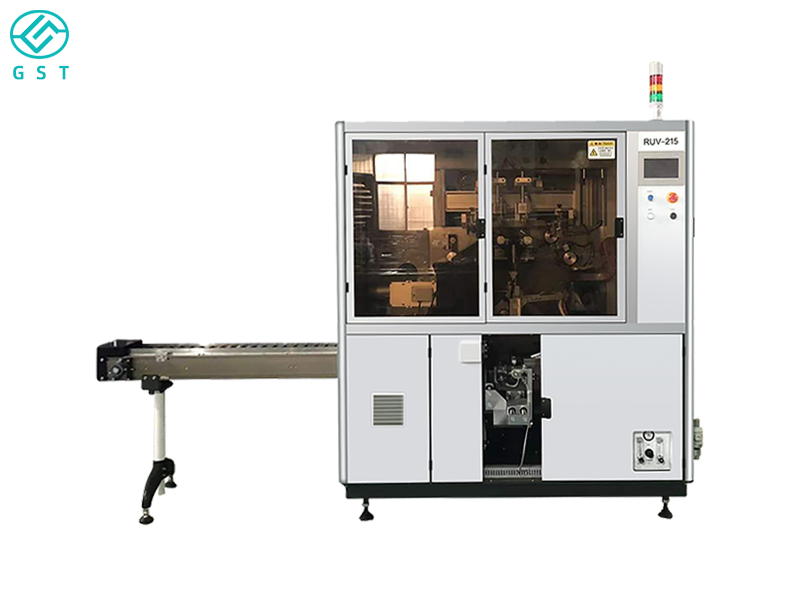

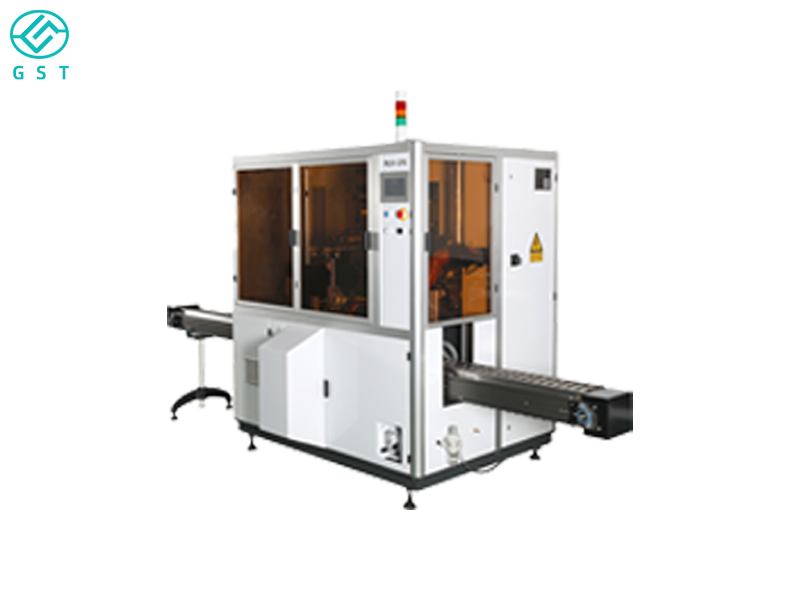

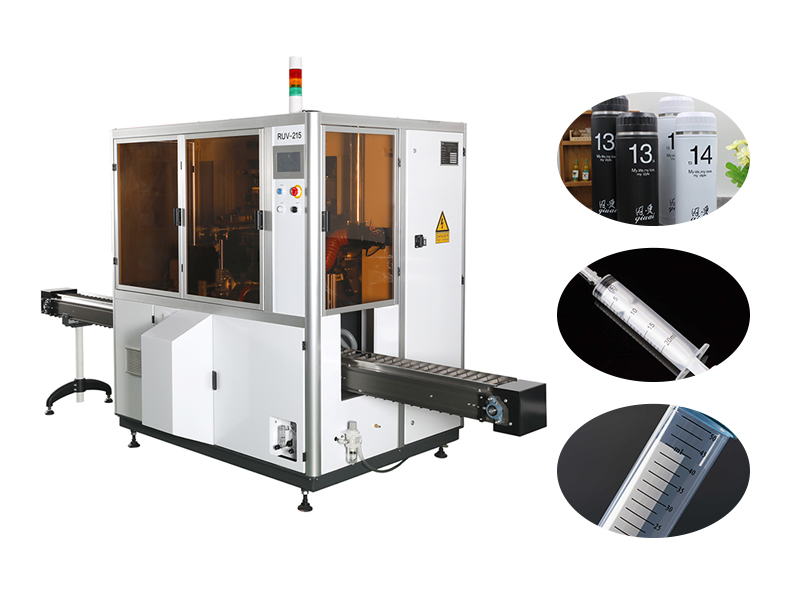

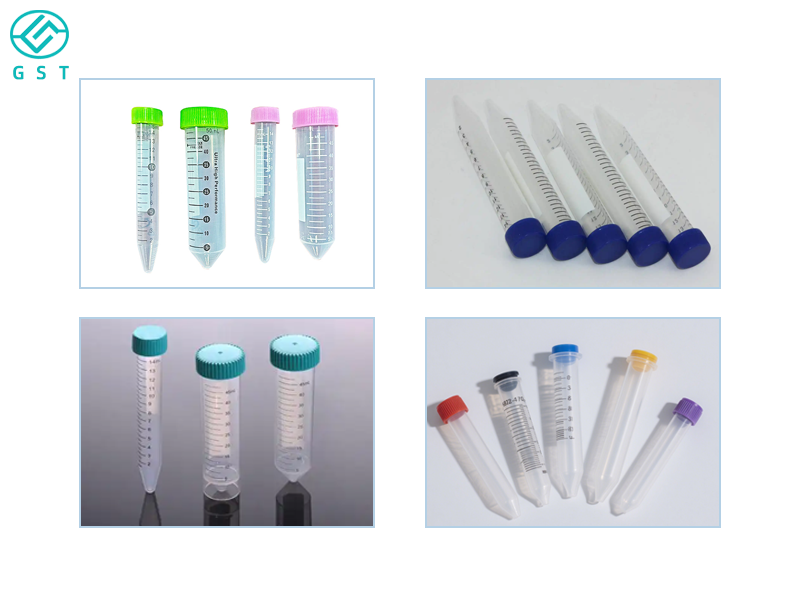

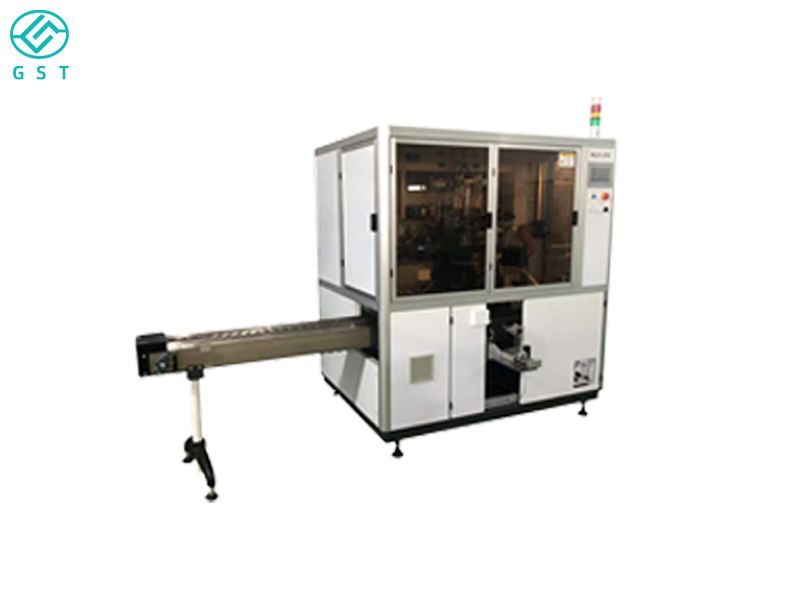

　　The automatic curved screen printer for centrifuge tubes is a highly efficient automated device designed specifically for the laboratory consumables industry. It is primarily used for screen printing curved surfaces on various disposable laboratory consumables, including centrifuge tubes, cryopreservation tubes, and sampling tubes.

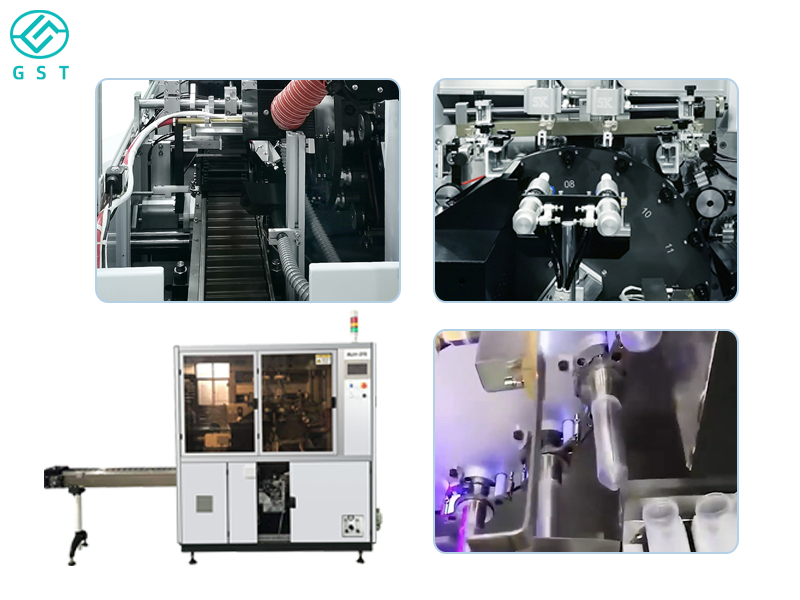

　　The machine integrates automatic loading, positioning, printing, drying, and rejection functions, enabling fully unmanned operation, significantly improving production efficiency and product consistency.

　　The machine utilizes a high-precision servo drive system, combined with PLC intelligent control and a touchscreen interface, to precisely position each centrifuge tube and provide high-quality printing.

　　The stainless steel construction and modular design comply with GMP production standards, facilitating cleaning, maintenance, and product switching between multiple specifications.

　　The automatic curved screen printer for centrifuge tubes supports automated printing on a variety of tube types and can be integrated with subsequent equipment such as automatic loading, drying, and rejection to form a complete automated production line. A built-in error-proofing alarm system automatically rejects tubes with printing errors or damage, ensuring a qualified finished product rate exceeding 99%.

　　This automatic curved screen printer for centrifuge tubes is widely used in IVD, pharmaceutical, life science and biopharmaceutical industries, helping companies achieve digital production, improve production capacity, and significantly reduce labor costs and operational risks.

　　Technical Parameters:

　　Equipment Model: GST-LXG101A

　　Centrifuge tube capacity: 2-50ml

　　Sizes: L3200*W1600*H1800(mm)

　　Production Capacities: 500pcs/min

　　Power (Output): 1.5kw

　　Customized Support: Yes
