Overview

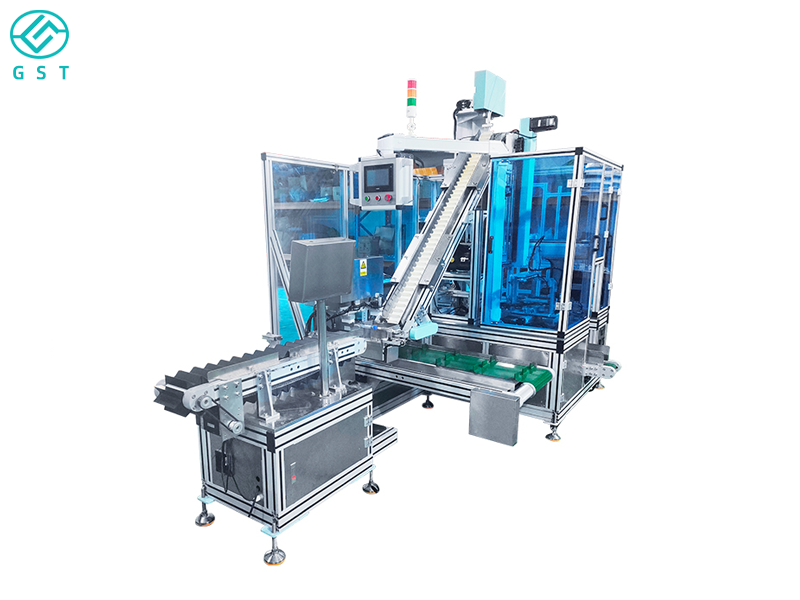

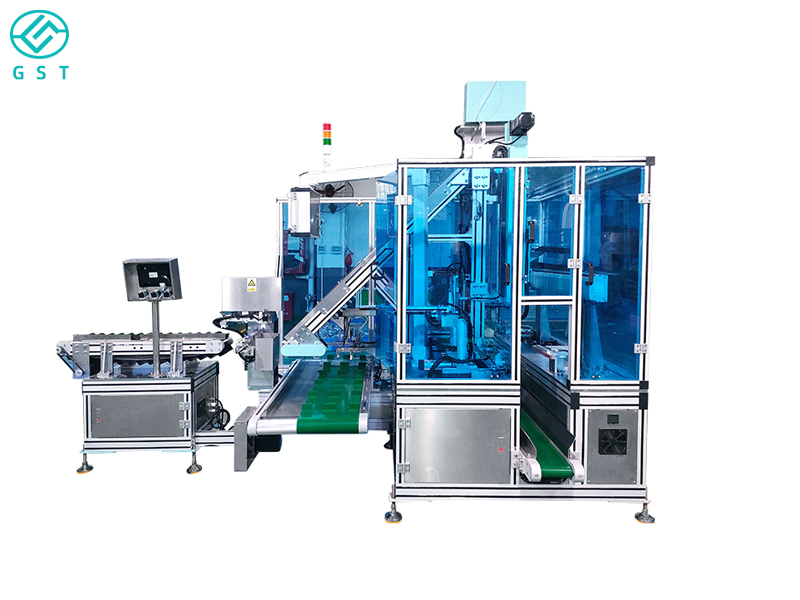

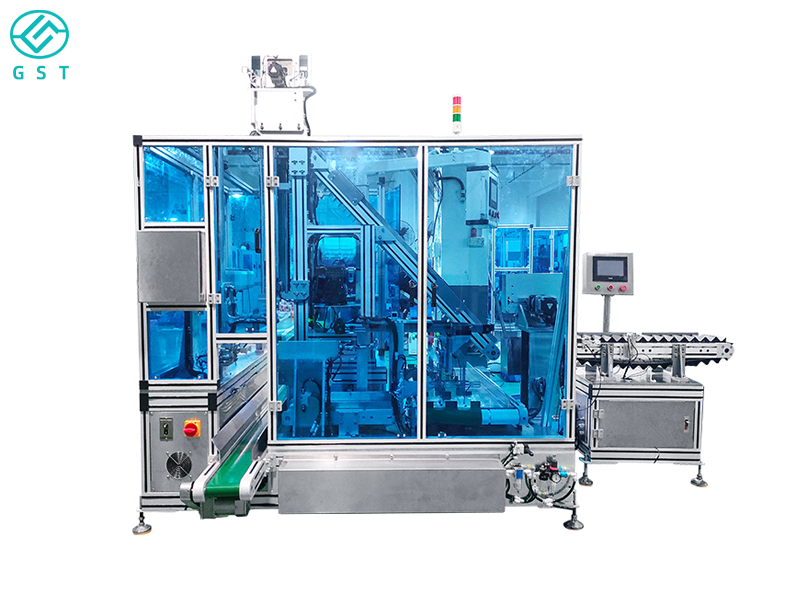

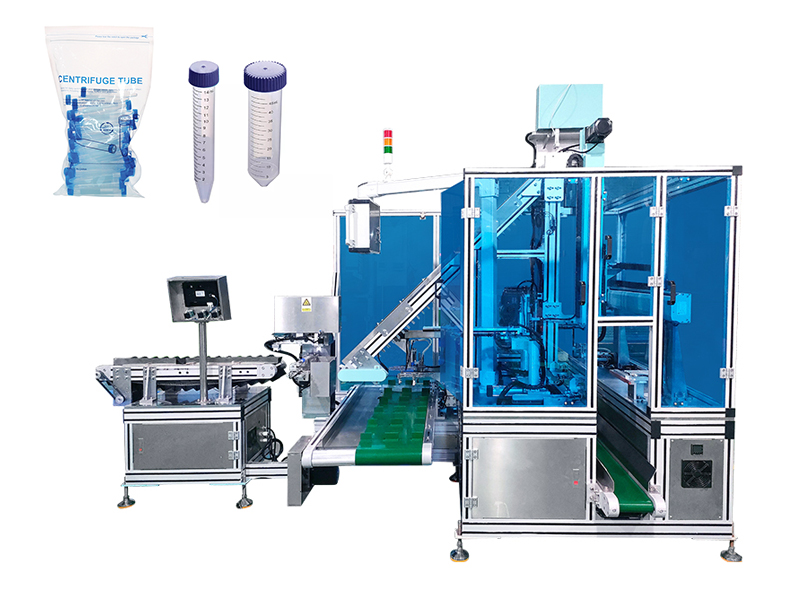

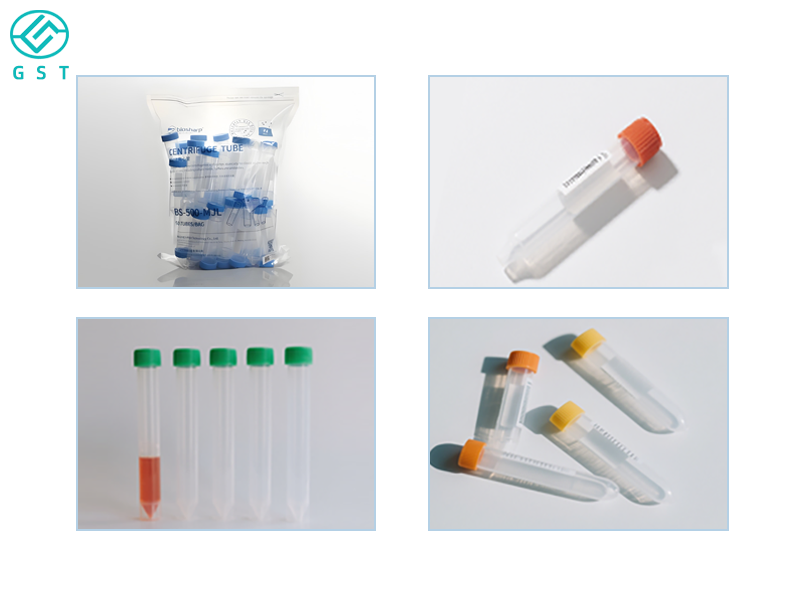

　　The Centrifuge Tube Automatic Counting and Bagging Machine is a highly efficient automated device designed specifically for the laboratory consumables industry. It is primarily used for high-speed counting and neatly bagging various disposable laboratory consumables, including centrifuge tubes, cryopreservation tubes, and sampling tubes.

　　The machine integrates automatic loading, counting, bagging, sealing, and defective product rejection, enabling fully unmanned operation and significantly improving production efficiency and product consistency.

　　The machine utilizes a high-precision sensor and vision counting system, combined with intelligent PLC control and a touchscreen interface, to accurately count each centrifuge tube. Servo drives control the conveying speed and bagging cycle to ensure accurate packaging quantities.

　　The machine's stainless steel construction and modular design comply with GMP production standards, facilitating cleaning, maintenance, and product switching for multiple specifications.

　　The Centrifuge Tube Automatic Counting and Bagging Machine supports automatic bagging of various bag types (such as plastic and aluminum foil bags) and tubes of varying specifications. It can also be integrated with subsequent equipment such as automatic sealing, labeling, and boxing to form a complete automated packaging production line. The equipment has a built-in error-proofing alarm system that can automatically reject pipes with abnormal counting or damage, ensuring that the qualified rate of finished products reaches more than 99%.

　　Technical parameters:

　　Equipment Model: GST-LXG102A

　　Centrifugal tube capacity: 1-50ml

　　Sizes: L1800*W1000*H1600(mm)

　　Production Capacities: 300pcs/min

　　Power (Output): 220V

　　Customized Support: Yes
