Overview

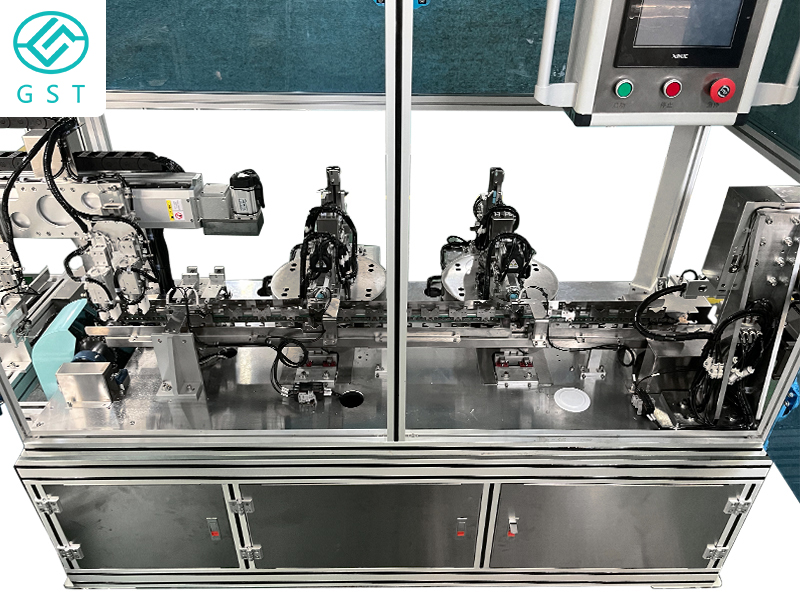

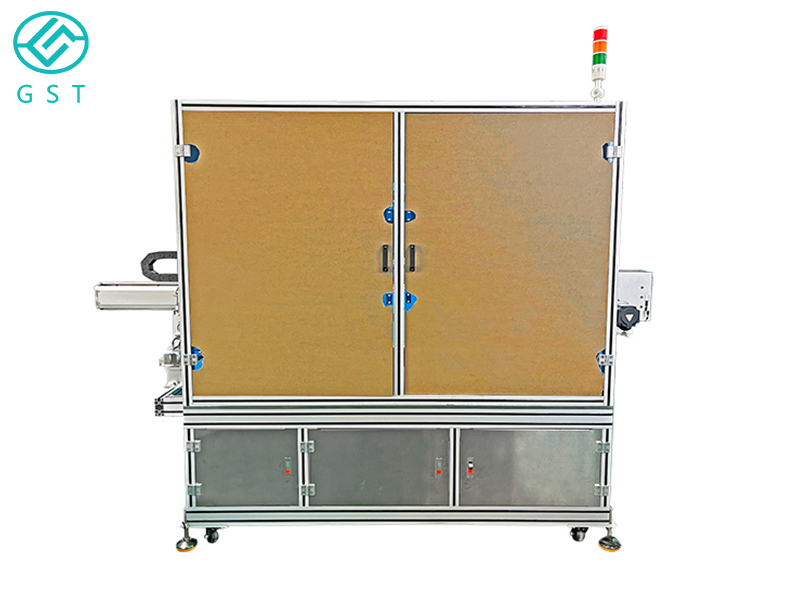

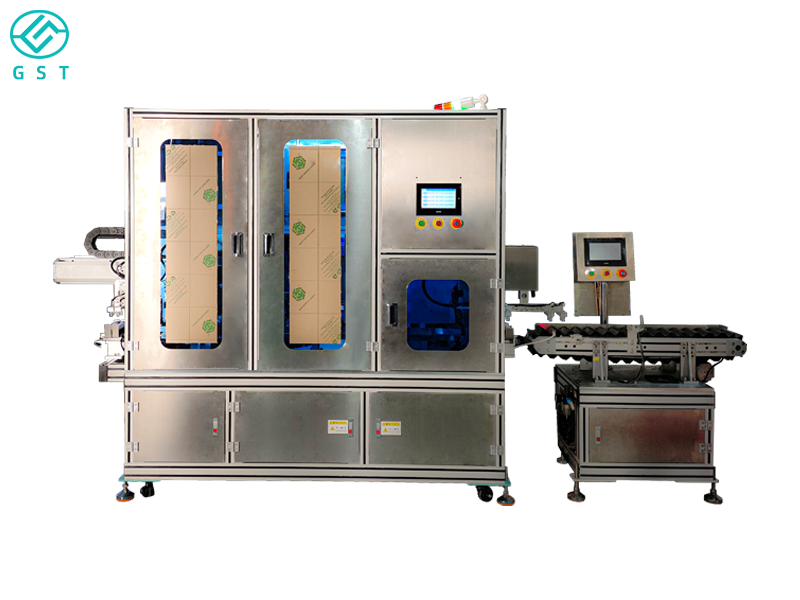

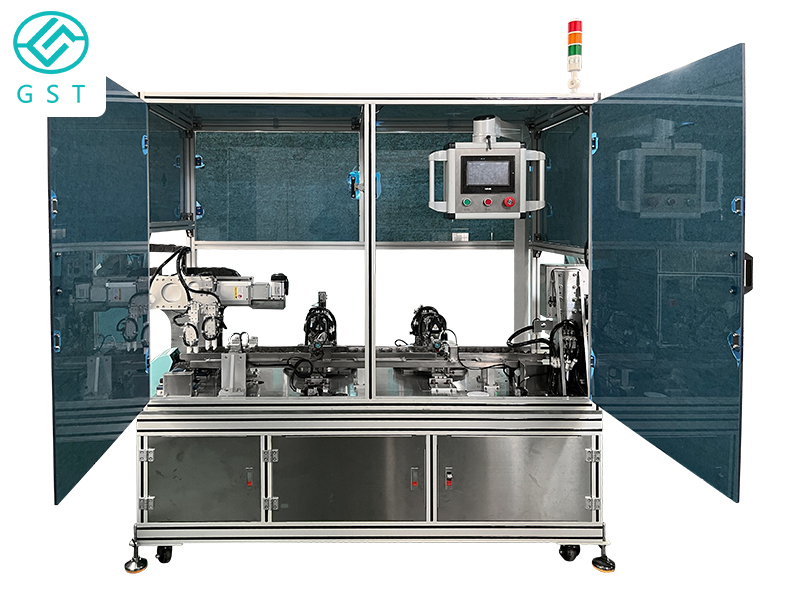

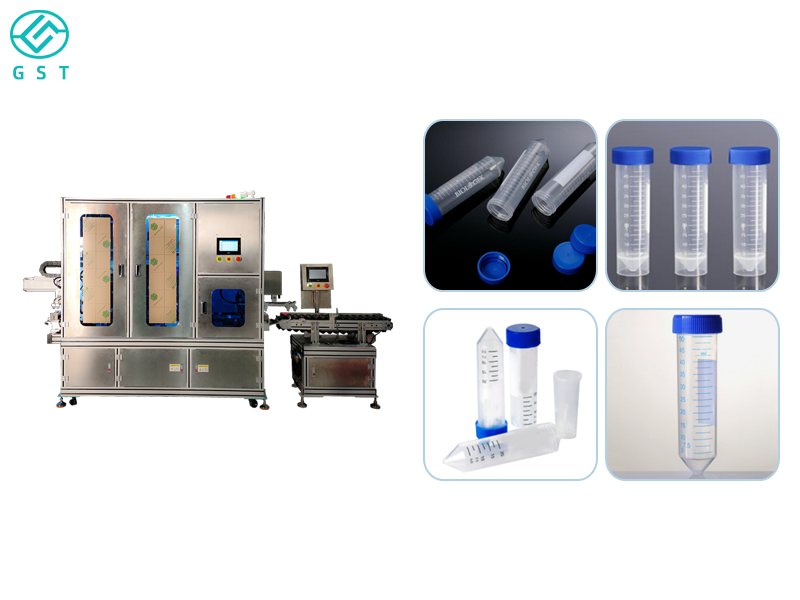

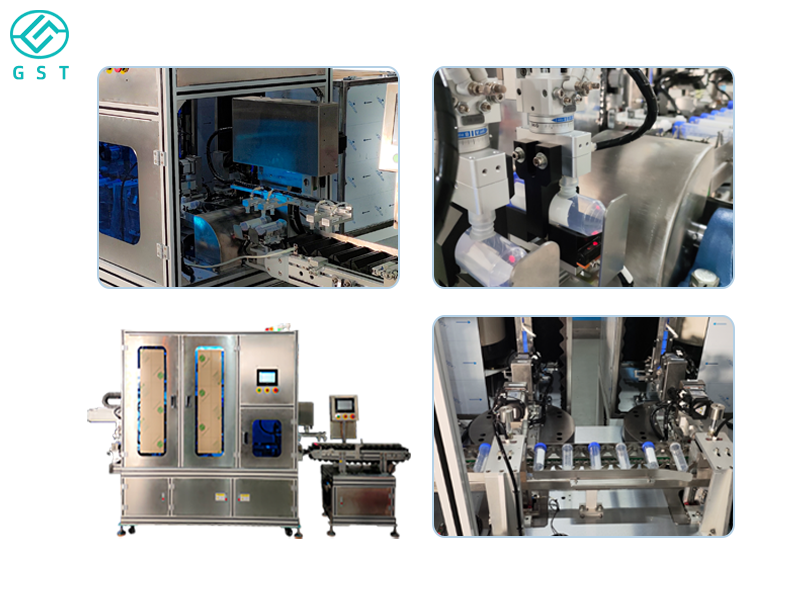

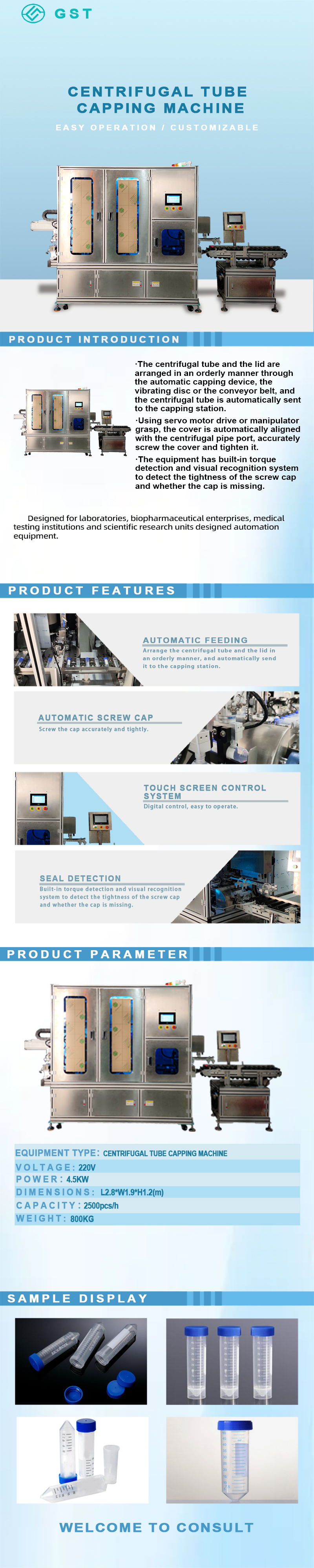

　　The centrifuge tube automatic capping machine utilizes a servo motor drive and high-precision torque control technology to ensure consistent and controllable torque for each capping action, effectively preventing over-tightening or loose capping. Through a precise loading and positioning system, the machine automatically aligns, tightens, and inspects centrifuge tubes and bottle caps, significantly improving production efficiency and product consistency, meeting the high-purity, high-precision production standards of the medical and laboratory consumables industries.

　　II. Main Functions and Technical Features

　　Automatic Loading System: Utilizing an intelligent vibrating plate or belt conveyor, the machine automatically loads centrifuge tubes and bottle caps, ensuring continuous material supply and stable production.

　　High-Precision Capping System: Equipped with a servo torque-controlled capping unit, it achieves precise tightening control, supports parameter switching for multiple cap sizes, and features programmable torque adjustment.

　　Intelligent Visual Inspection Module: Equipped with industrial cameras and sensors, the machine provides real-time detection of capping in place, cap deviation, missing caps, and other anomalies, ensuring that every centrifuge tube is properly sealed.

　　Modular Design: The machine features a modular workstation layout, enabling quick mold changes and facilitating switching between different centrifuge tube sizes. It's suitable for both small-batch and large-scale continuous production of a wide variety of products.

　　User-Friendly Interface: The machine utilizes a PLC intelligent control system and a touchscreen interface, offering features like recipe storage, alarm notifications, and data statistics, ensuring easy operation and maintenance.

　　Clean and Safe Design: The machine's stainless steel and aluminum alloy construction complies with GMP standards, making it suitable for cleanroom environments such as those used in biopharmaceutical and medical consumables manufacturing.

　　Equipment Details:

　　Model Number: GST-LXG101A

　　Sizes: L280cm*W120cm*H190cm

　　Weight: 800kg

　　Power: 4.5KW

　　Production Capacity: 2,500 pieces/hour

　　Voltage: 220V

　　Core Component: Motor

　　Customized Support: Yes
