Overview

　　Designed specifically for the laboratory consumables industry, the automatic pipette loader is an efficient front-end feeding system for pipette production, screen printing, packaging, and other subsequent processes.

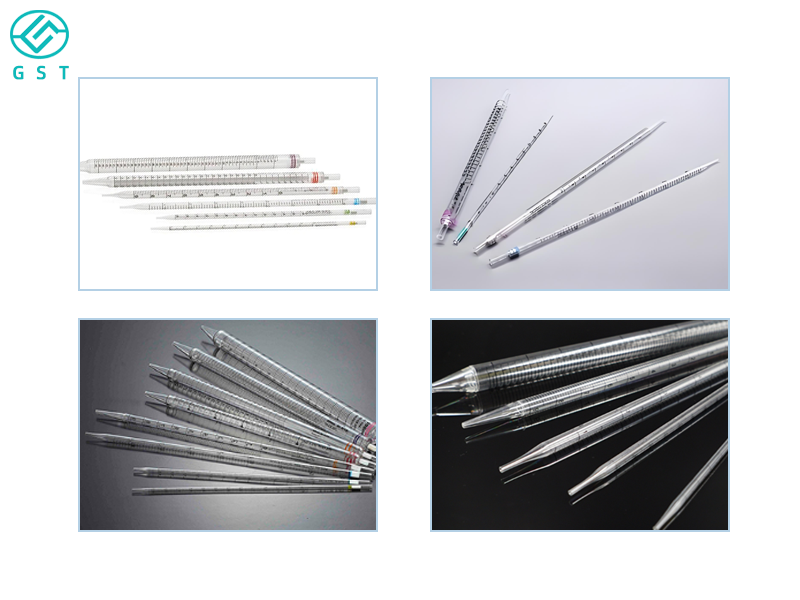

　　The device integrates automatic alignment, directional conveying, tray loading, and online feeding functions, enabling rapid loading of pipettes in various sizes, including 1 mL, 10 mL, and 200 µL.

　　Key Functions and Structural Features:

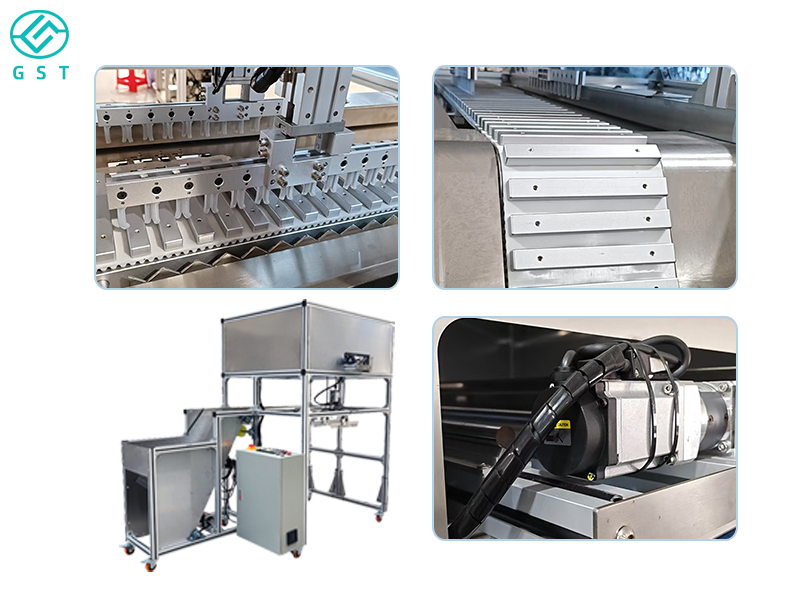

　　Using a combination of a robotic arm/bin and an alignment track, it automatically feeds bulk pipettes into the alignment system in a specified direction, ensuring accurate and stable alignment.

　　Equipped with a servo drive and PLC intelligent control, the feeding rhythm is adjustable and supports integration with production modules such as tube cutting, core plugging, welding, screen printing, and packaging.

　　The structure utilizes a stainless steel frame and modular design, with all contact components made of materials that meet cleanliness requirements, facilitating easy cleaning, mold changes, and maintenance.

　　It supports rapid switching between multiple sizes: tray changes, track adjustments, and feeding parameters can be quickly configured to adapt to different pipe production environments.

　　Built-in anti-blocking, low-material alarm, and incorrect material rejection systems ensure continuous and stable production line operation and improve feeding reliability.

　　Technical Advantages:

　　High Efficiency: Compared to manual loading, automatic loaders significantly increase feeding speeds, matching automated production cycles.

　　High Reliability: Automatic alignment and feeding reduce breakage and misloading; the modular design facilitates maintenance and daily cleaning.

　　Flexible Adaptability: Supports loading of multiple pipette specifications with flexible switching, suitable for multi-product, small-batch, and multi-variant production models.

　　Scope of Application and Industry Application: Suitable for large-scale laboratory pipette production, particularly in IVD (in vitro diagnostics), biopharmaceutical, and life science consumables manufacturing. It seamlessly integrates with packaging and assembly lines as a loading module. This equipment significantly reduces manual loading workload, improves production cycle times, and enhances product consistency.

　　Technical parameters:

　　Equipment Model: GST-YYG108A

　　Pipette capacity: 1-100ml

　　Sizes: L1950*W1100*H2000(mm)

　　Production Capacities: 300pcs/min

　　Power (Output): 1.5kw

　　Customized Support: Yes
