Overview

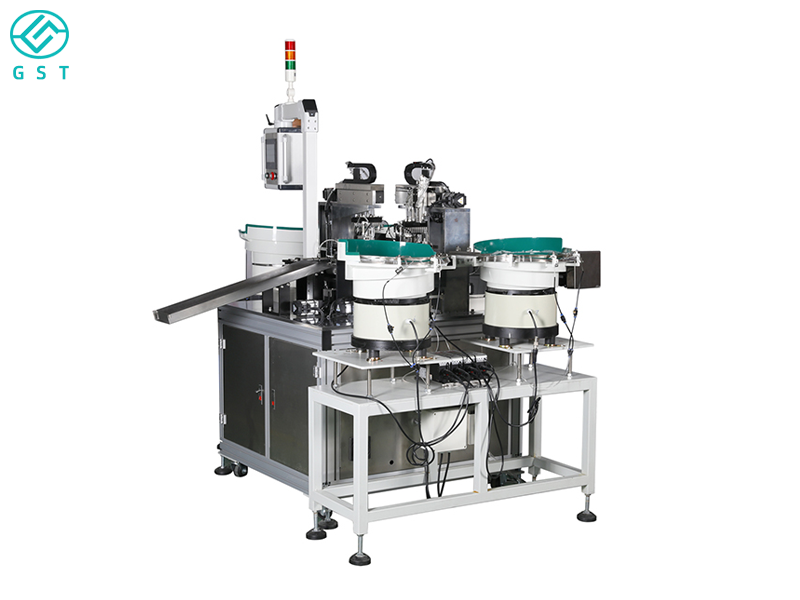

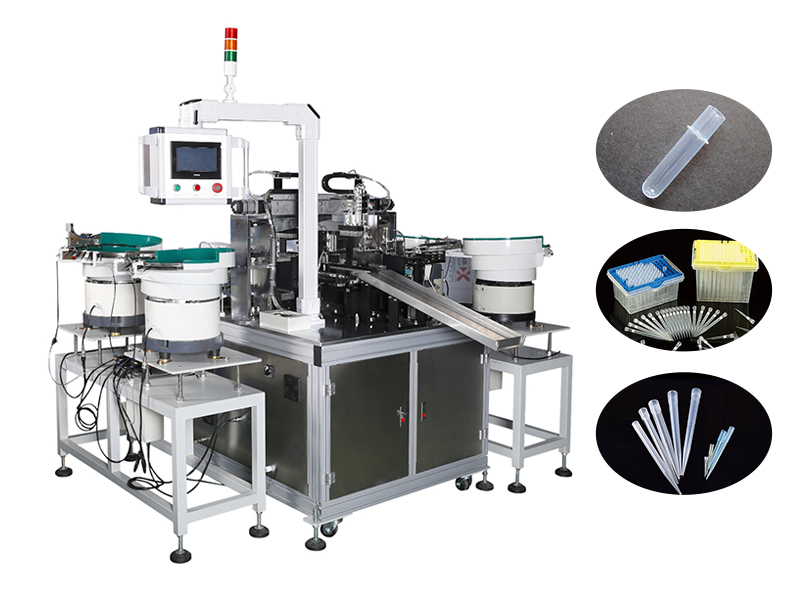

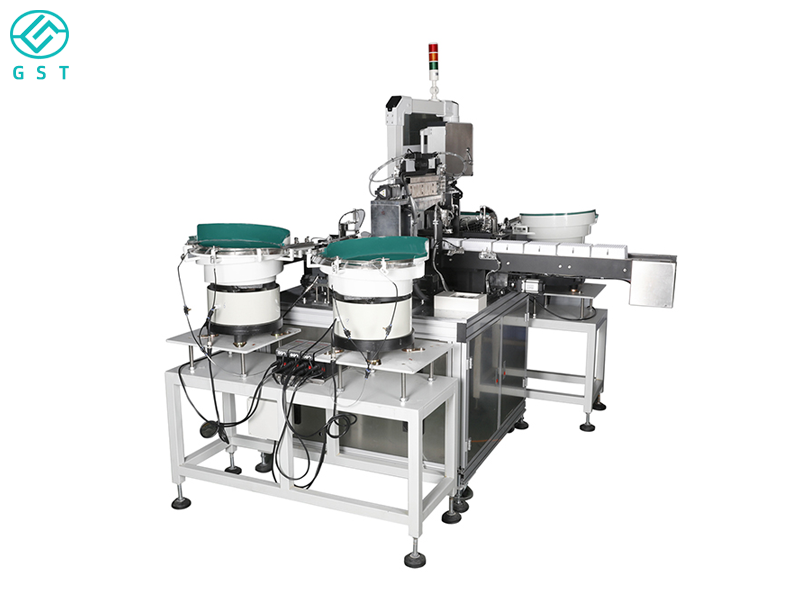

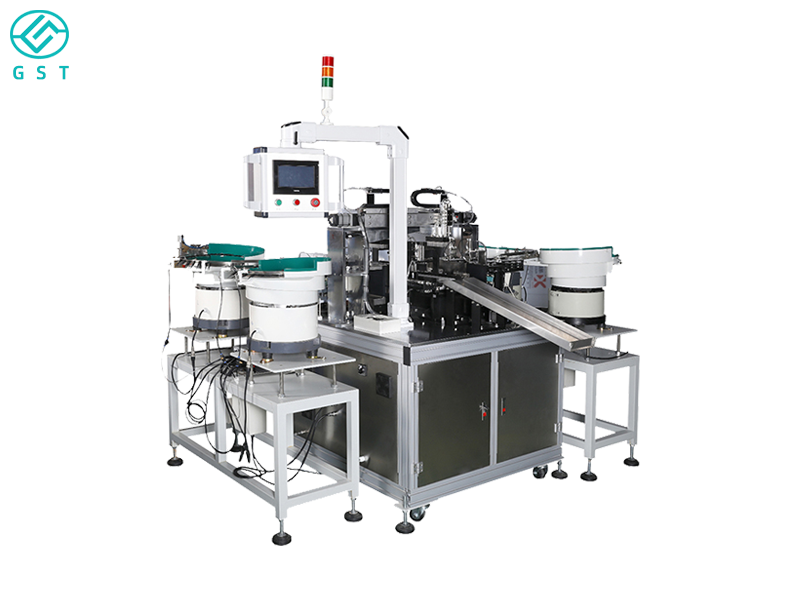

　　The automatic tip and cuvette cartoning machine is an intelligent device that integrates automatic feeding, cartoning, and inspection, designed specifically for laboratory consumables manufacturers. It automatically arranges pipette tips and cuvettes into cartons according to the specified quantity, ensuring product sealing and cleanliness. The machine utilizes a PLC control system and visual inspection technology, achieving high-speed and stable automated operation, reducing manual labor and improving production efficiency and quality consistency.

　　Key Functions and Structural Features:

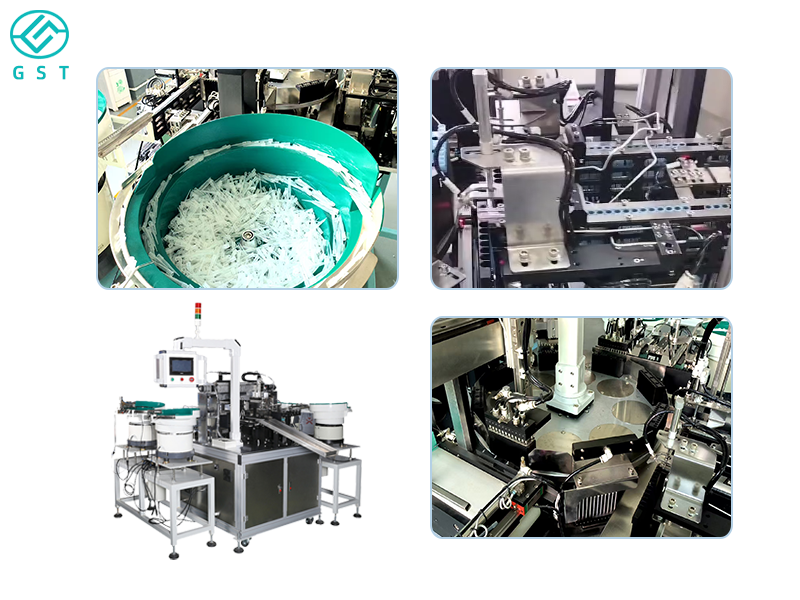

　　Automatic Feeding and Sorting: Tips and cuvettes are transported to designated locations in an orderly manner via a vibrating plate or conveyor belt and automatically arranged. A built-in precision robot or vacuum system arranges the tips and cuvettes, ensuring accurate placement into cartons.

　　Precise Cartoning and Capping: The system uses precise pneumatic or mechanical mechanisms to securely insert a fixed number of tips and cuvettes into cartons, preventing damage or displacement. After cartoning, the machine automatically caps the cartons, and a visual inspection system ensures the integrity and seal of each carton, complying with medical industry standards such as GMP and ISO13485.

　　Intelligent Control System: Utilizing a PLC control system and visual inspection technology, this system achieves high-speed, stable automated operations, reducing manual labor and improving production efficiency and quality consistency.

　　High Efficiency and Stability: Traditional manual cartoning suffers from low efficiency and poor consistency, while automated equipment can achieve speeds of hundreds of tubes per minute with stable operation, making it suitable for large-volume production.

　　Integrated Solution: Integrating loading, cartoning, capping, and inspection functions into one system, this system reduces equipment space and manual interaction, improving overall production line flow. It supports fast switching between multiple pipette tips and cuvettes, adapting to diverse production needs.

　　Application Scenarios and Industry Compatibility:

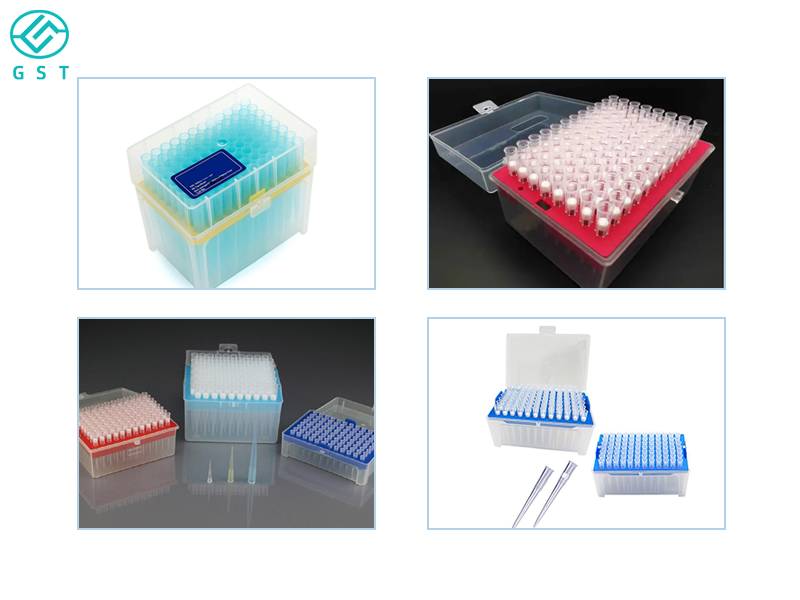

　　Laboratory Consumables Production: Suitable for the production and packaging of pipette tips and cuvettes, meeting the requirements for high cleanliness and efficiency.

　　Pharmaceutical and Biopharmaceutical Industries: Compliant with medical industry standards such as GMP and ISO13485, it is suitable for packaging medical devices and biopharmaceutical products.

　　Research and Testing Institutions: This system improves the production efficiency and quality consistency of laboratory consumables, meeting the needs of research and testing institutions for high-quality consumables.

　　Technical parameters:

　　Equipment Model: GST-XTJ102A

　　Pipette tip capacity: 1-1250μL

　　Sizes: L220*W200*H180(cm)

　　Production Capacities: 11000-12000 pcs/hour

　　Power (Output): 0.7KW

　　Customized Support: Yes
