Overview

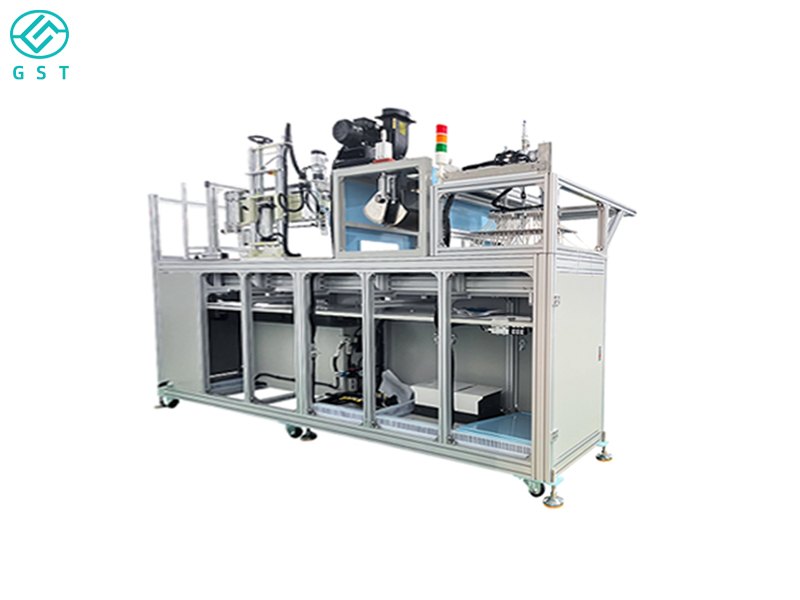

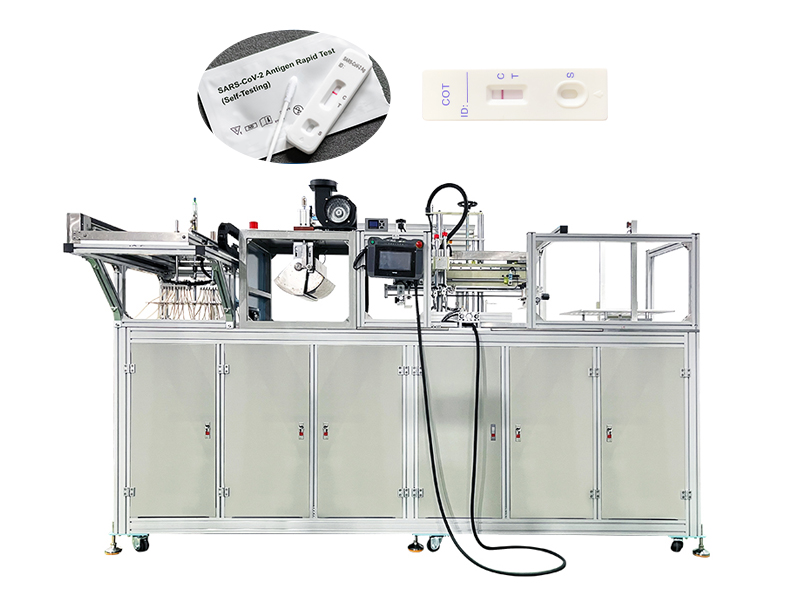

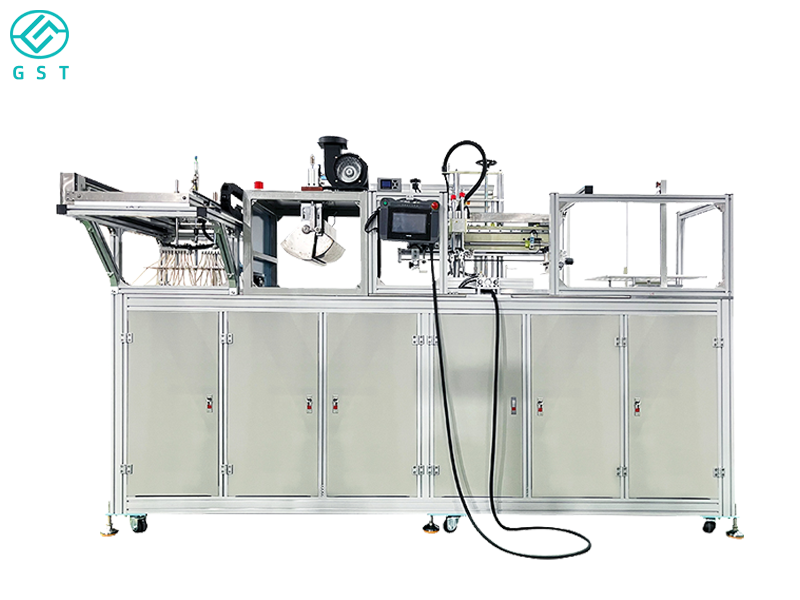

　　The multi-dose test card automated assembly line is designed for high-speed, automated assembly of multiple test card strips/multi-dose test cards for in vitro diagnostics (IVD). It integrates feeding, laminating, packaging, and testing, achieving efficient, stable, and intelligent production.

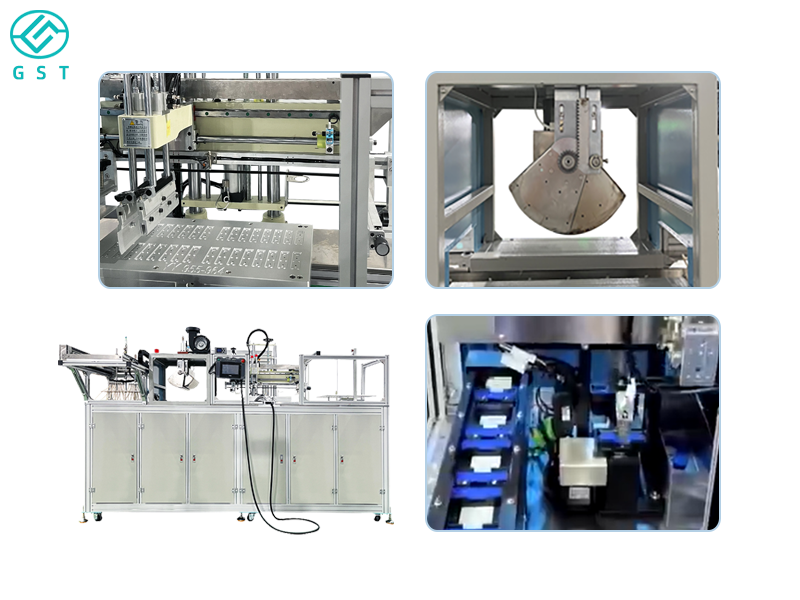

　　It utilizes a vibrating plate or hopper for automatic feeding, continuously feeding test card bases, multi-dose test strips, laminating film, and sealing top plates, ensuring high feeding efficiency and reliable stability.

　　Test strips are automatically fed into the card, accurately positioning them. Machine vision identifies defects in the NC film, dirty strips, narrow strips, and waste strips, effectively ensuring assembly quality.

　　Once the test strips are positioned on the base card, the laminating, heat-sealing, or cold-pressing process is fully automated, and the machine automatically determines whether the strips are correctly positioned after lamination.

　　The entire line utilizes a PLC touchscreen control system with variable frequency speed regulation, ensuring easy operation and energy efficiency.

　　The entire machine utilizes high-strength European construction for exceptional stability and long life.

　　An automatic rejection mechanism removes defective cards identified during the inspection process, ensuring a high pass rate for the final output.

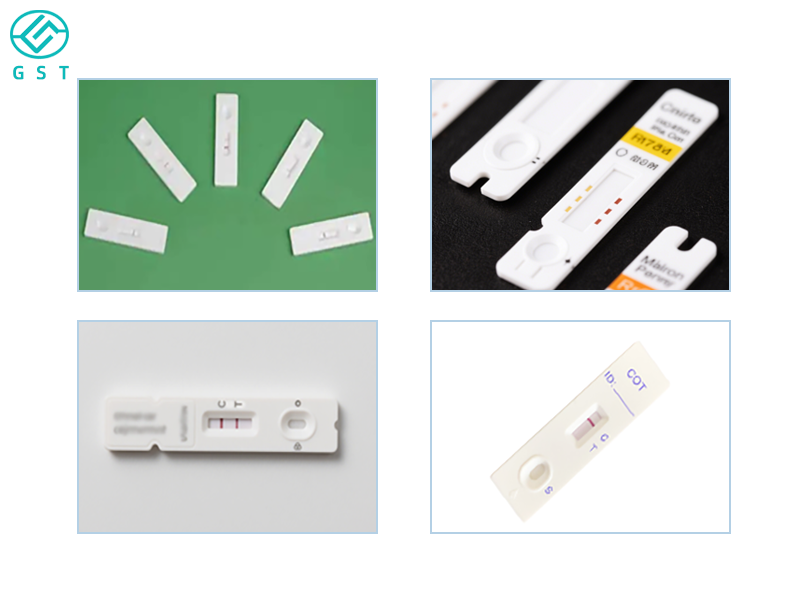

　　The modular design supports rapid format changeovers and can accommodate multi-dose test card formats of varying sizes, meeting diverse terminal requirements.

　　High productivity: Suitable for large-scale production environments, significantly improving assembly efficiency.

　　High quality control: From part identification to post-assembly inspection, meticulous control reduces manual errors and improves yield.

　　Intelligent control: A centralized touch interface, visual parameter settings, and simplified operation facilitate rapid training and onboarding.

　　Energy saving and environmental protection: Variable frequency speed regulation and optimized structural design reduce energy consumption, aligning with modern energy-saving production trends.

　　Flexible format changeover: The modular structure enables rapid adjustments to meet production needs for different formats, multi-dose test card formats, and various test card formats.

　　Automatic rejection: Defects are identified and rejected, reducing manual screening steps, lowering labor costs, and improving product consistency.

　　Technical parameters:

　　Model Number: GRK-TWD06

　　Sizes: L5.70*W2.0*H1.8 (m)

　　Production Capacities: 2400pcs/H

　　Power (Output): 6.5kw

      Voltage:220V/380V50Hz

　　Weight:3000KG

　　Customized Support: Yes
