Overview

　　Product Features:

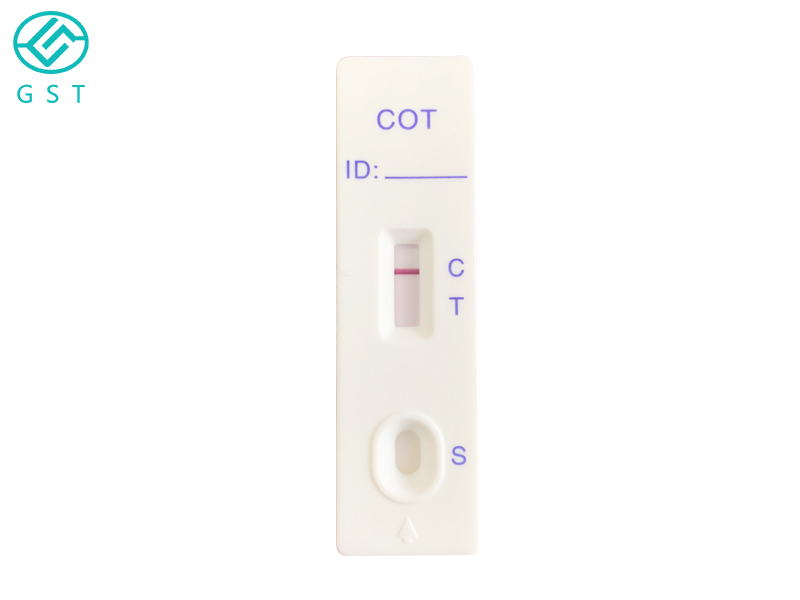

　　It is suitable for the automatic assembly production of various in vitro diagnostic reagents multilink cards.

　　Product features:

　　1. adopting European high steel structure.

　　2. adopts high performance PLC with touch screen control, easier to operate, adopts frequency conversion speed control, more energy-saving.

　　3. adopts vibration material supplying method, which significantly improves the material supplying efficiency; 4.

　　4. the completion of the assembly action are detected, if there is a leakage immediately rejected to ensure the quality of the finished product; 5. all electrical equipment parts of the machine.

　　5. all electrical equipment parts and pneumatic device parts of the machine are made of foreign famous brands, good quality, low failure rate; 6. the machine realizes the “card machine”, which is the best choice for the machine.

　　6. the machine realizes “card box conveying”: the bottom card and face card vibration plate automatically loads the material, and the bottom card and face card are automatically conveyed.

　　7. big board transportation: big board automatic loading; 8. image quality inspection: the bottom card face card vibration plate automatic loading, bottom card, face card automatic transportation; 8.

　　8. image quality control:

　　1) Plastic card bottom card material defects identification; 1) Plastic card bottom card material defects identification; 2) Plastic card face card vibration plate automatic loading

　　2) Identification of material defects of face card of plastic card; 3) Identification of material defects of face card after chopping; 4) Identification of material defects of face card of plastic card

　　3) Chopped test strips NC film defect identification, dirty strips, narrow strips, waste strips identification.

　　4) Identification of the position of test strips after being inserted into the base card; and

　　5) Identification of the position of test strips after the face card is closed; 5) Identification of the position of test strips after the face card is closed.

　　6) Defect recognition and kick-out: automatic.

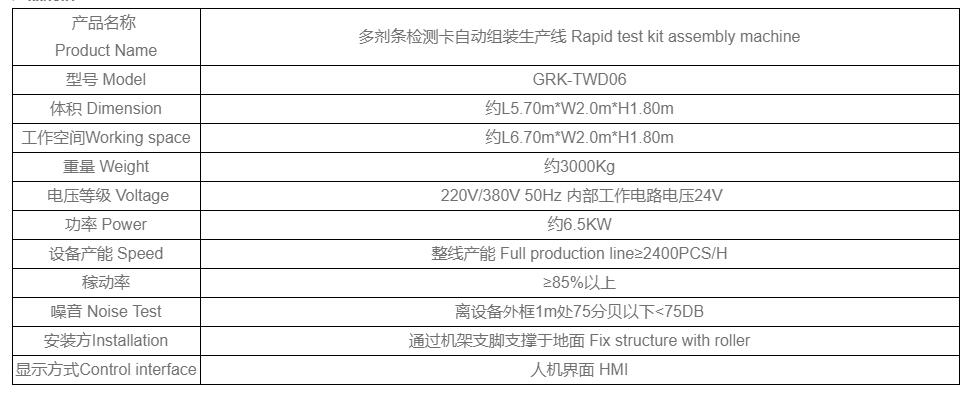

　　Product Specifications:
